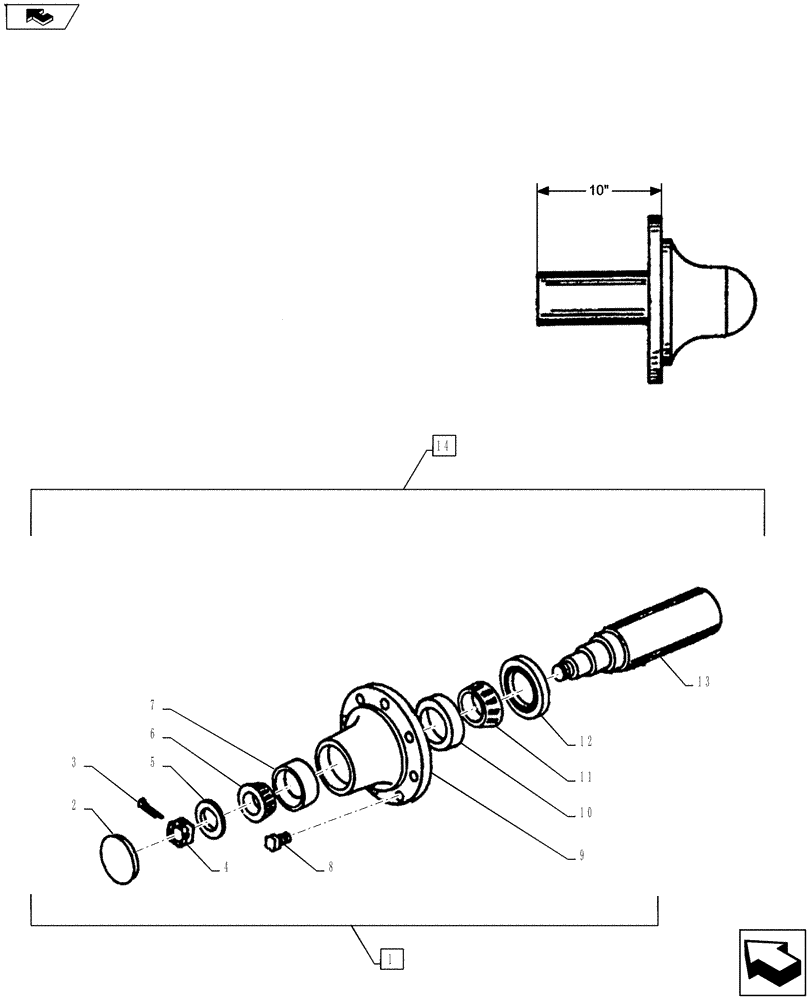

Запчасти Case IH TURBO-TIGER (44.100.03) - Q-778 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28177800

HUB ASSY.

Q778 8-Bolt, Includes Ref. 2-12

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1 -1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.38 Bore Timken 25877

1шт.

7

165964R1

BEARING CUP

2.875 OD Timken 25821

1шт.

8

16409053

SPECIAL BOLT

9/16" NF x 1-1/8" Lug

8шт.

9

NSS

NOT SOLD SEPARAT

Q778 8-Bolt Hub Only

1шт.

10

130503H

BEARING CUP

3.27 OD Timken 25520

1шт.

11

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.80 Bore Timken 25590

1шт.

12

491715R91

OIL SEAL

2.00 ID x 3.63 OD CR 521430

1шт.

13

28380301

PULLEY

Spindle

1шт.

13

28881311

SPINDLE

1шт.

14

28077801

HUB

Spindle Assy., Includes Ref. 1-13

1шт.
