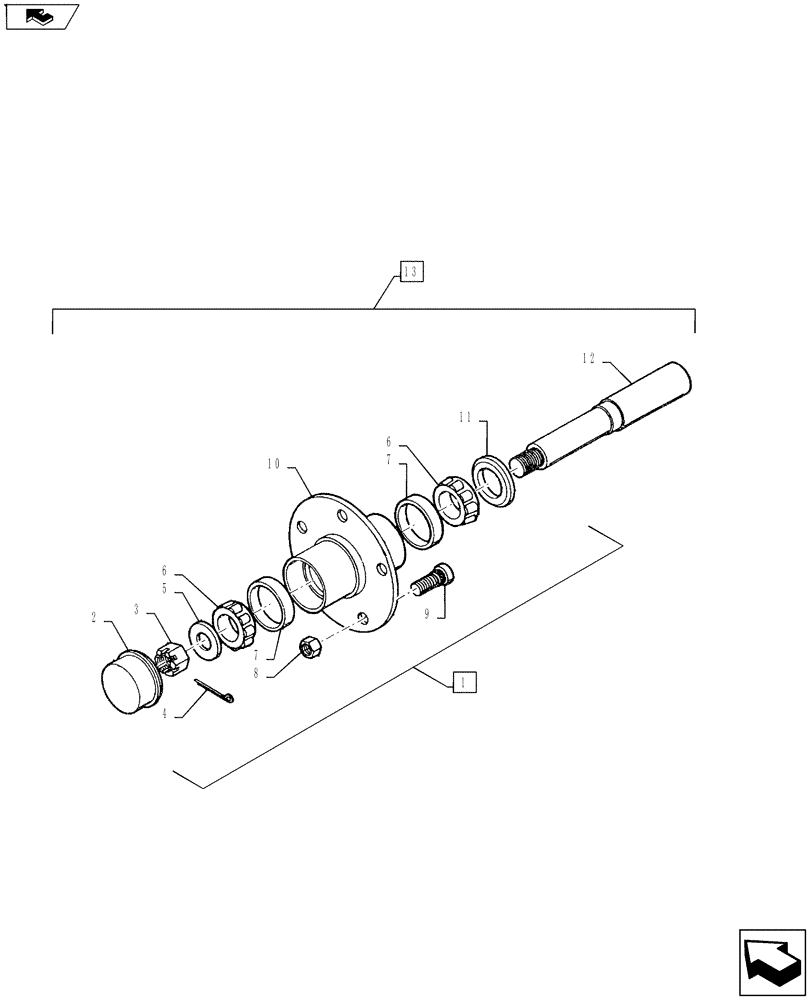

Запчасти Case IH TURBO-TIGER (44.100.02) - HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28122250

HUB ASSY.

5-Bolt, Includes Ref. 2-11

1шт.

2

28480330

DUST CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" x 1-1/2" Cottor Pin

1шт.

5

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

6

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

1.06" Cone Dico 8019

2шт.

7

21883690

BEARING CUP

2.00 OD Dico 8017

2шт.

8

14080802

NUT

1/2" NF Wheel

5шт.

9

16408055

ROLLER CAGE BEARING

1/2" NF Drive-In Stud.

5шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

21931275

SEAL

1.25" ID x 2.00" OD Dico 8998

1шт.

12

NSS

NOT SOLD SEPARAT

Spindle

1шт.

13

28022230

HUB

Spindle Assy., Includes Ref. 1-12

1шт.
