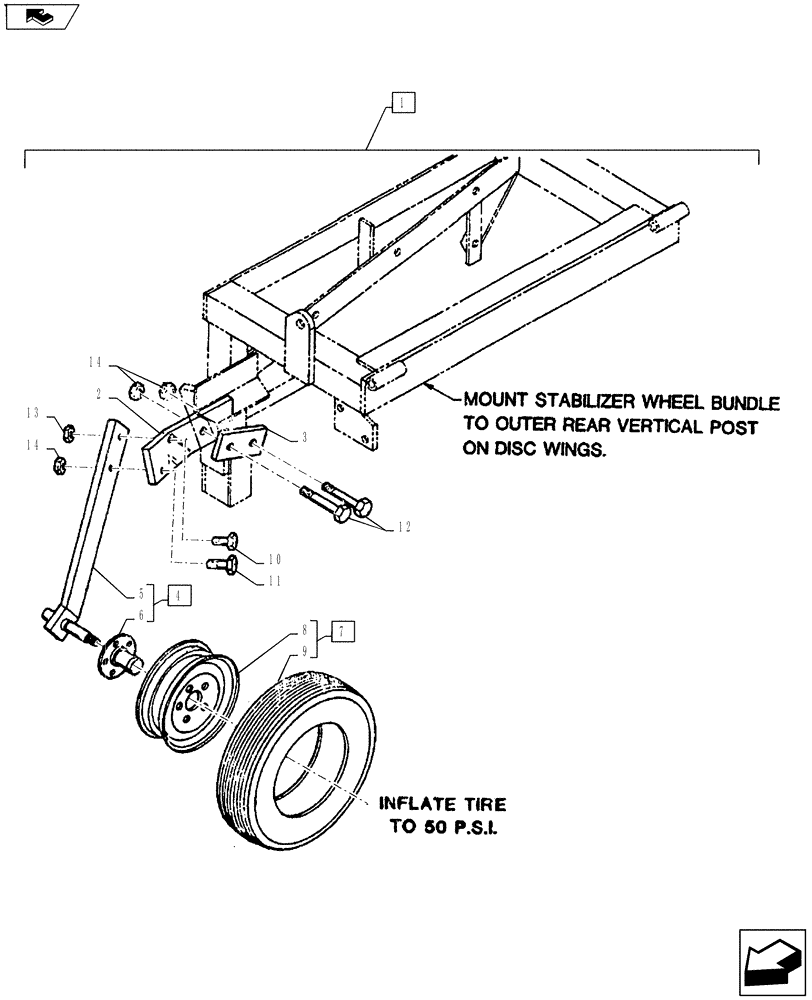

Запчасти Case IH TURBO-TIGER (44.100.01) - STABILIZER WHEEL BUNDLE (44) - WHEELS

1

09955000

STABILIZER

Wheel Bundle Inc 2 Tire & Wheel Assy.

1шт.

2

09955200

MOUNTING PARTS

Plate - RH

1шт.

2

09955300

MOUNTING PARTS

Plate - LH

1шт.

3

09955400

MOUNTING PARTS

Backing Plate

2шт.

4

09955100

ARM

Spindle W/Hub

2шт.

5

09955101

ARM

Spindle I/Hub

2шт.

6

28122250

HUB ASSY.

5- Bolt

2шт.

7

10004121

WHEEL ASSY

4.80 x 12 Tire

2шт.

8

10104120

WHEEL

4 x 12 5-Hole

2шт.

9

NSS

NOT SOLD SEPARAT

4.80 x 12 Tire

2шт.

10

424-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 2

NC Cap

2шт.

11

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

NC Cap

2шт.

12

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

13

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

14

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

6шт.
