Запчасти Case IH TURBO-TIGER (33.202.01) - DISC MOUNT ASSEMBLY (44) - WHEELS

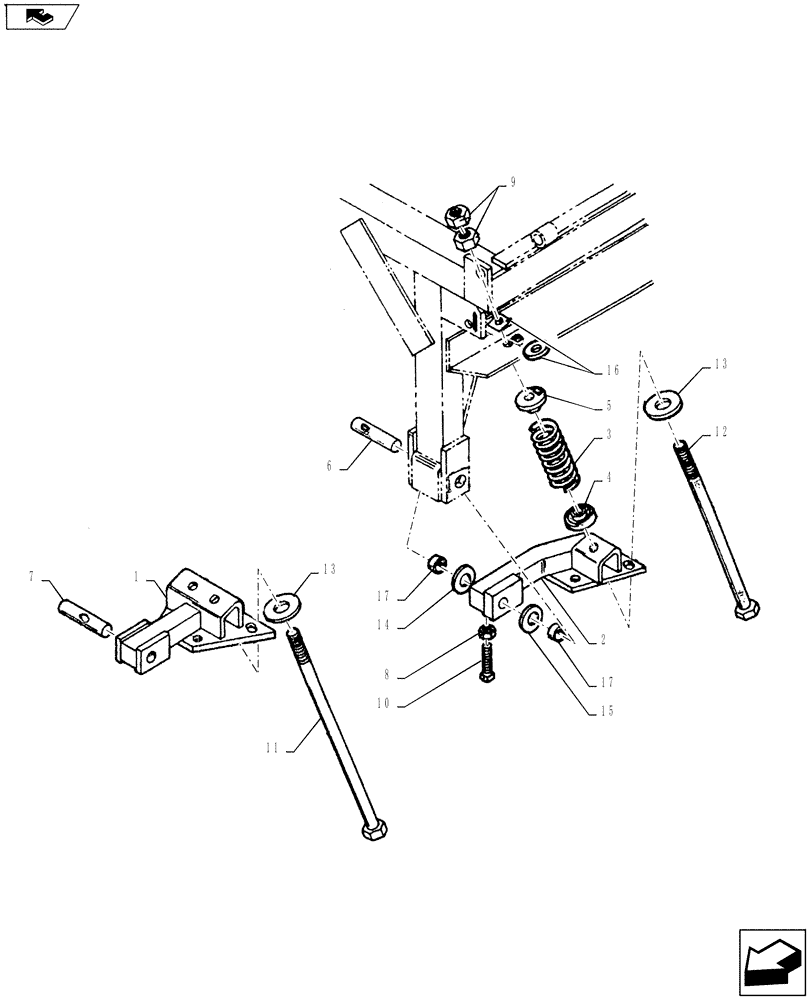

Схема запчастей Case IH TURBO-TIGER - (33.202.01) - DISC MOUNT ASSEMBLY (44) - WHEELS
8
4
13
12
13
10
5
11
7
1
17
14
2
3
6
15
9
16
17
home

Артикул

Название

Примечание

Количество

1

09905100

MOUNTING PARTS

Center Disc

1шт.

2

09905300

BRACKET

LH Disc Mount

1шт.

2

09905200

BRACKET

RH Disc Mount

1шт.

3

24156202

SPRING

Compression

1шт.

4

20090050

HOLDER

Spring Casting

1шт.

5

20090060

SPRING BOX

Holder Casting

1шт.

6

14892046

SPECIAL PIN

Hardened

1шт.

7

14892047

SPECIAL PIN

Hardened

1шт.

8

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

9

NSS

NOT SOLD SEPARAT

3/4" Hex. Nut Gd. 2

2шт.

10

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" Set Screw

1шт.

11

16901270

BOLT

3/4" x 22

2шт.

12

16901269

CAPSCREW

3/4" x 17-3/4" Bolt

1шт.

13

NSS

NOT SOLD SEPARAT

3/4" Std Washer

1шт.

14

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machine 10 Ga.

1шт.

15

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machine 14 Ga.

1шт.

16

17913000

SPECIAL WASHER

Square Beveled

1шт.

16

17413011

WASHER

3/4" Heavy

1шт.

17

44012501

BUSHING

Hardened

2шт.

Выбрано товаров: 19
