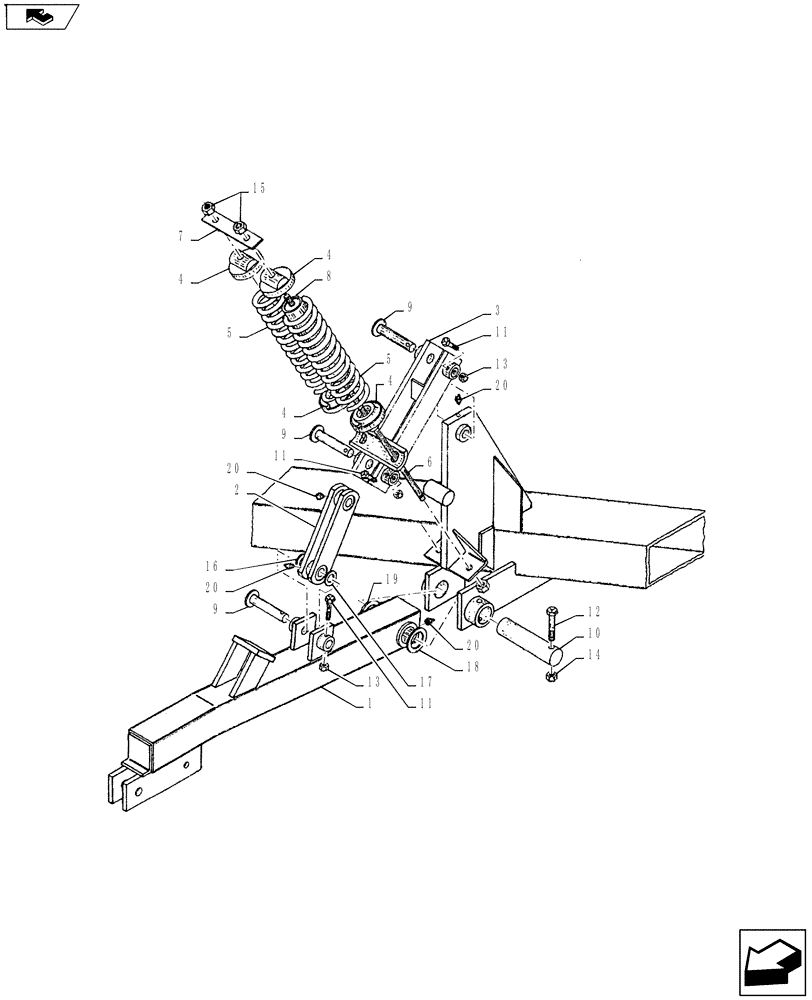

Запчасти Case IH TURBO-TIGER (75.200.02) - AUTOMATIC RESET ASSEMBLY (SERIAL NUMBER 1001-1046) (39) - FRAMES AND BALLASTING

1

09855000

BEAM

, Serial Range: 1001-1046

1шт.

2

09856000

LOWER LINK

1шт.

3

09857000

UPPER LINK

1шт.

4

20090070

HOLDER

Spring Casting

4шт.

5

24162500

SPRING

Compression

2шт.

6

16909127

BOLT

3/4" Dia x 40"

2шт.

7

09861000

STRAP

Top

1шт.

8

09860000

SPACER

2шт.

9

14816405

PIN

3шт.

10

14893271

PIN

1шт.

11

16007104

BOLT

7/16" x 2-1/2" Hex. Gd. 5

3шт.

12

16008144

BOLT

1/2" x 3-1/2" Hex. Gd. 5

1шт.

13

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

3шт.

14

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

15

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

4шт.

16

17616022

BUSHING

1" Mach., 16 Ga.

1шт.

17

17616023

BUSHING

1" Mach., 18 Ga.

1шт.

18

17632030

BUSHING

2" Mach., 16 Ga.

1шт.

19

17632090

2" Mach., 18 Ga.

1шт.

20

219-86

LUBE NIPPLE,1/8" NPTF

NPT Zerk

4шт.
