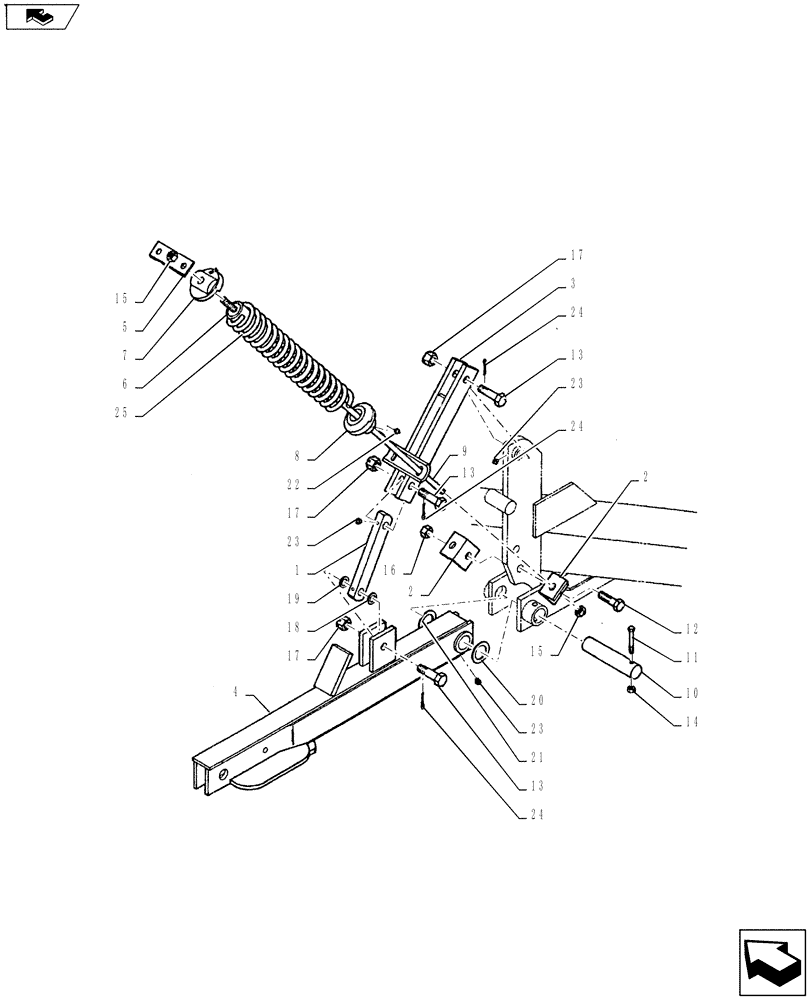

Запчасти Case IH TURBO-TIGER (75.200.01) - AUTOMATIC RESET ASSEMBLY (SERIAL NUMBER 101047 & UP) (39) - FRAMES AND BALLASTING

1

09925000

LOWER LINK

, Start Serial: 101047

1шт.

2

09927000

ANGLE

2шт.

3

09928000

UPPER LINK

1шт.

4

09929000

BEAM

1шт.

5

09948000

STRAP

Top

1шт.

6

09860000

SPACER

2шт.

7

20090070

HOLDER

Spring Casting

2шт.

8

20090071

SPRING BOX

Holder Casting

2шт.

9

16909127

BOLT

3/4" Dia x 40" Lg.

2шт.

10

14893271

PIN

1шт.

11

16008144

BOLT

1/2" x 3-1/2" NC Cap Screw Gd. 5

1шт.

12

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

NC Cap Screw

1шт.

13

16901615

SPECIAL BOLT

1" x 3-3/4" NC Hex.

3шт.

14

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

15

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

4шт.

16

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

1шт.

17

NSS

NOT SOLD SEPARAT

1" NC Hex. Slotted Nut

3шт.

18

17616020

WASHER

1" Machine Busing 14 Ga.

1шт.

19

17616023

BUSHING

1" Machine, 18 Ga.

1шт.

20

17632010

GROOVED BUSHING

2" Machine, 18 Ga.

1шт.

21

17632030

BUSHING

2" Machine, 16 Ga.

1шт.

22

219-86

LUBE NIPPLE,1/8" NPTF

NPT Zerk

2шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Zerk

4шт.

24

432-1232

COTTER PIN,3/16" OD x 2" L

3шт.

25

24162500

SPRING

Compression

2шт.
