(39.110.02) - JACK ASSEMBLY (FOR UNITS WITH SERIAL NUMBERS 101153 & UP)

Запчасти Case IH TURBO-TIGER (39.110.02) - JACK ASSEMBLY (FOR UNITS WITH SERIAL NUMBERS 101153 & UP) (39) - FRAMES AND BALLASTING

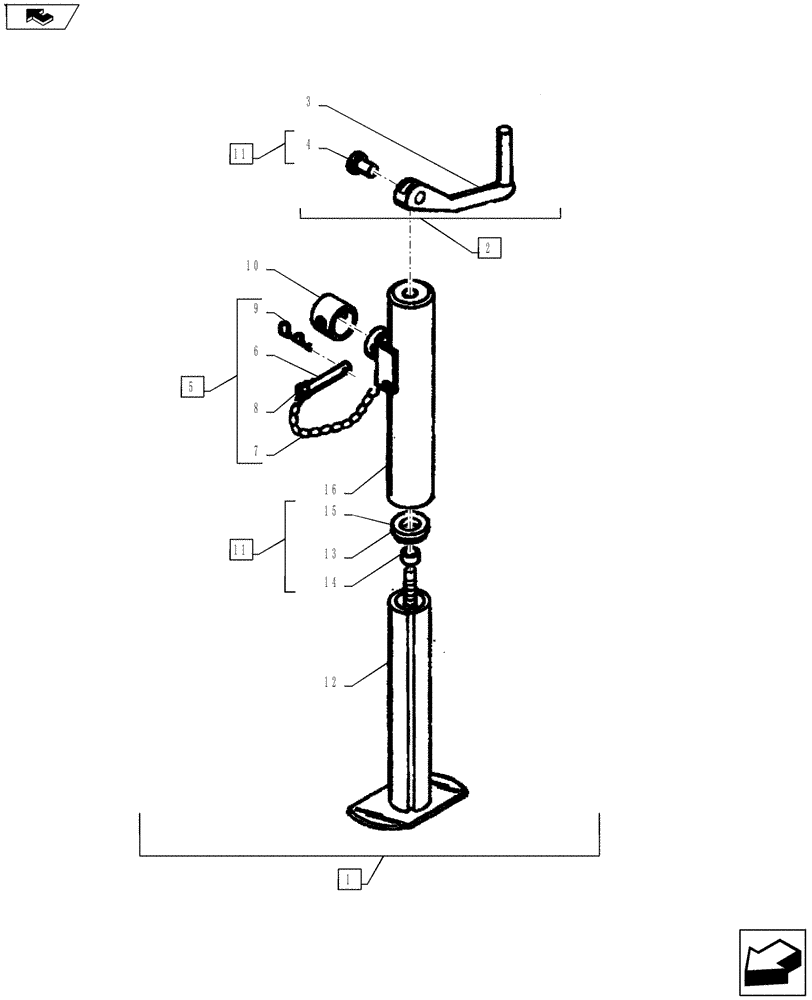

Схема запчастей Case IH TURBO-TIGER - (39.110.02) - JACK ASSEMBLY (FOR UNITS WITH SERIAL NUMBERS 101153 & UP) (39) - FRAMES AND BALLASTING
16
13
5
8
home
12
10
2
4
6
14
1
11
3
7
11
0
15
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

32252000

JACK ASSY.

5000#, Start Serial: 101153

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit, Includes Ref. 3-4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

32250001

REPAIR KIT

Locking Pin, Includes Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

Locking Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Chain

1шт.

8

NSS

NOT SOLD SEPARAT

S-Hook

2шт.

9

NSS

NOT SOLD SEPARAT

Hair Pin

1шт.

10

09937112

GUIDE BUSHING

Mounting Bracket

1шт.

11

32220002

CYLINDER ASSY.

lnner Ram Kit, Includes Ref. 4, 13-15

1шт.

12

NSS

NOT SOLD SEPARAT

lnner Ram

1шт.

13

21890751

1шт.

14

32220004

1шт.

15

21890750

THRUST BEARING

1шт.

16

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.
