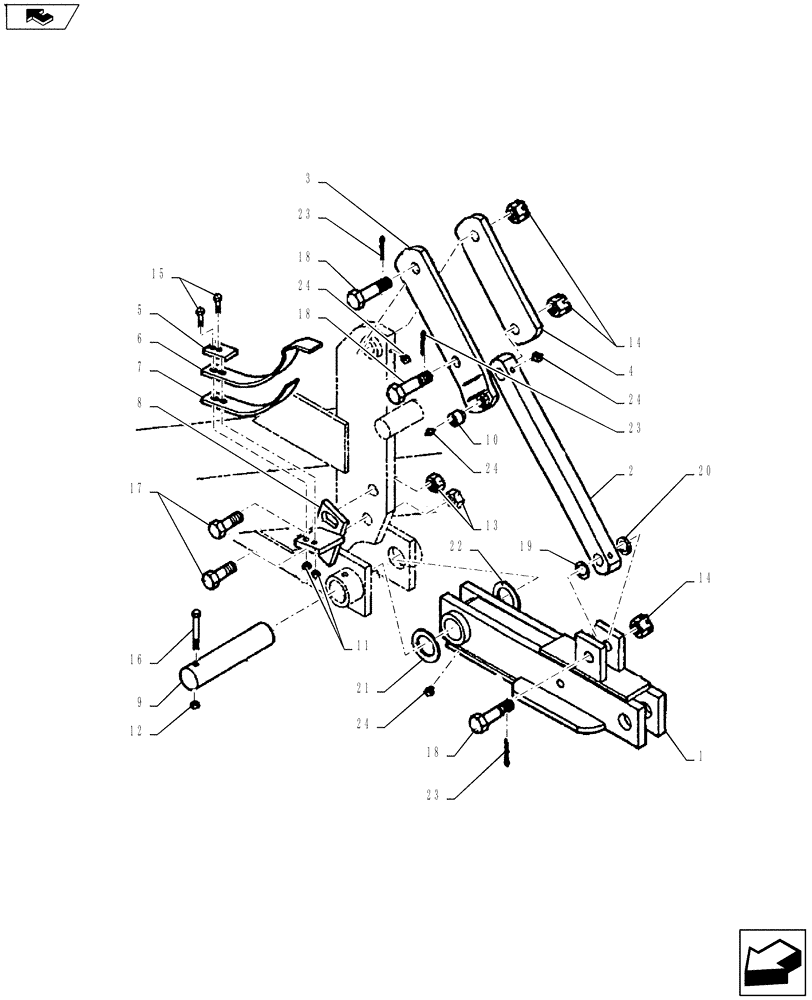

Запчасти Case IH TURBO-TIGER (39.100.03) - SPRING TRIP ASSEMBLY (39) - FRAMES AND BALLASTING

1

09935000

BEAM ASSY.

1шт.

2

09932000

LOWER LINK

1шт.

3

09933000

UPPER LINK

1шт.

4

09934000

UPPER LINK

Inside

1шт.

5

09949000

STRAP

Flat

1шт.

6

24918115

STRAP

Trip Spring

1шт.

7

24918116

STRAP

Helper Spring

1шт.

8

09944000

MOUNTING PARTS

Spring

1шт.

9

14893271

PIN

1шт.

10

21891250

CAM FOLLOWER

1шт.

11

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

12

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

13

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

2шт.

14

NSS

NOT SOLD SEPARAT

1" NC Slotted Hex. Nut

3шт.

15

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Cap Screw

2шт.

16

NSS

NOT SOLD SEPARAT

1/2" x 3-1/2" NC Cap Screw

1шт.

17

16901408

BOLT

7/8" x 2-1/4" NC Cap Gd. 5

2шт.

18

16901615

SPECIAL BOLT

1"x 3-3/4" NC Cap, W/hole

3шт.

19

17616020

WASHER

1" Mach., Bushing 14 Ga.

1шт.

20

17616023

BUSHING

1" Mach., 18 Ga.

1шт.

21

17632030

BUSHING

2" Mach., 16 Ga.

1шт.

22

17632010

GROOVED BUSHING

2" Mach., 18 Ga.

1шт.

23

432-1232

COTTER PIN,3/16" OD x 2" L

3шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Zerk

5шт.
