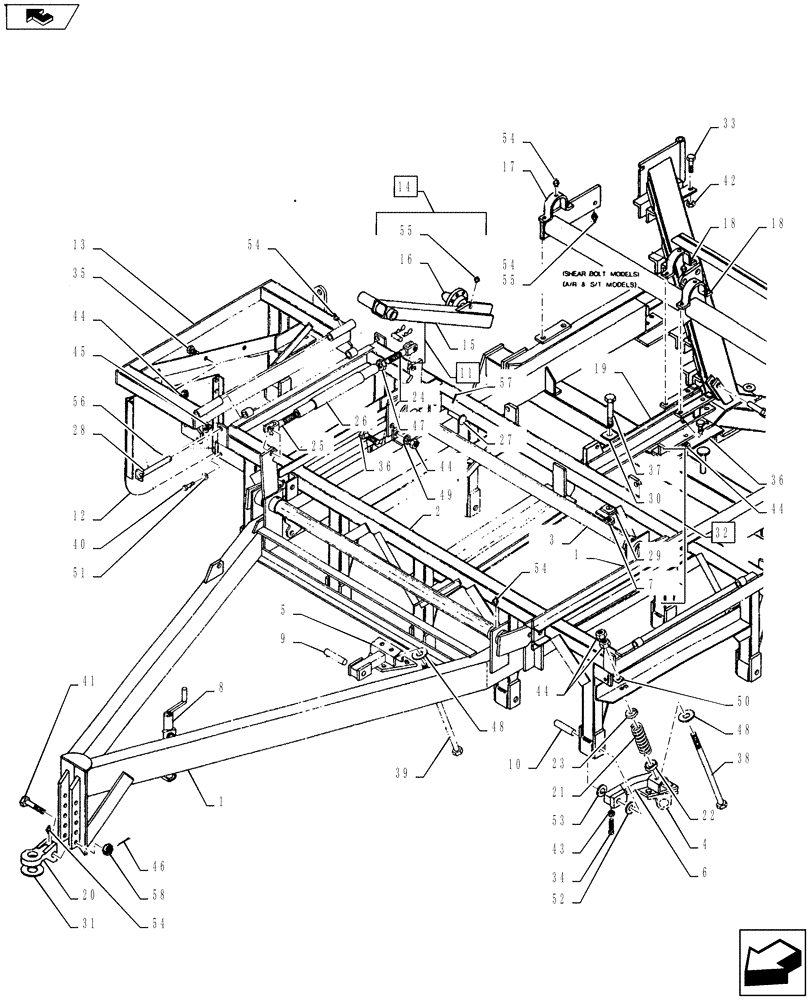

Запчасти Case IH TURBO-TIGER (39.100.01) - MAIN FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

09902100

FRAME

Pull (SB Model)

1шт.

1

09937110

FRAME

Pull (A/R & S/T Model)

1шт.

2

09903100

FRAME

Disc

1шт.

3

09902500

KIT

Disc Frame Point Bundle

1шт.

4

09942000

HUB ASSY.

W/Disc LH/RH

6шт.

5

09905100

MOUNTING PARTS

Center Disc

1шт.

6

09905300

BRACKET

Left Disc Mount

5шт.

7

09905200

BRACKET

Right Disc Mount

5шт.

8

84533450

JACK

5000 lb

1шт.

9

14892047

SPECIAL PIN

1шт.

10

14892046

SPECIAL PIN

10шт.

11

32408000

TURNBUCKLE

W/Pins

1шт.

12

09911000

SPLASH SHIELD

RH Dirt

1шт.

12

09912000

SPLASH SHIELD

LH Dirt

1шт.

13

09908000

FRAME

Single Disc RH Wing (Shown)

1шт.

13

09908100

FRAME

Single Disc Weld RH

1шт.

13

09913000

FRAME

Single Disc RH Wing Assy.

1шт.

13

09909000

FRAME

Single Disc LH Wing

1шт.

13

09909100

FRAME

Single Disc Weld LH

1шт.

13

09914000

FRAME

Single Disc LH Wing Assy.

1шт.

13

09919000

FRAME

Three Disc RH Wing

1шт.

13

09919100

FRAME

Three Disc RH Wing Weld

1шт.

13

09900023

FRAME

Three Disc RH Wing Assy.

1шт.

13

09920000

FRAME

Three Disc LH Wing

1шт.

13

09920100

FRAME

Three Disc LH Wing Weld

1шт.

13

09900024

FRAME

Three Disc LH Wing Assy.

1шт.

14

09835001

ARM

RH Spindle (SB Model)

1шт.

14

09835000

ARM

RH Spindle Weld

1шт.

14

09804000

ARM

RH Spindle (SB Model)

1шт.

14

09938000

ARM

RH Spindle (A/R & S/T Model)

1шт.

15

09838000

ARM

RH Spindle L/Hub (SB Model)

1шт.

15

09840000

ARM

RH Spindle L/Hub (SB Model)

1шт.

15

09951000

ARM

RH Spindle /Hub (A/R & S/T Model)

1шт.

16

28082100

HUB

Q-821 Assy.

2шт.

16

28177800

HUB ASSY.

Q-778 Assy.

2шт.

17

09503000

CLAMP

Outer Tube

2шт.

18

09504000

CLAMP

Inner Tube

2шт.

19

09803000

TUBE

Cylinder Mount (SB Model)

1шт.

20

20092071

ADJUSTABLE CLEVIS

Single

1шт.

21

24156202

SPRING

Compression

12шт.

22

20090050

HOLDER

Spring Casting

12шт.

23

20090060

SPRING BOX

Holder Casting

12шт.

24

32407020

YOKE

RH Threaded End

1шт.

25

32407030

YOKE

LH Threaded End

1шт.

26

32408020

TUBE

1шт.

27

14820315

PIN

4шт.

28

14816685

CLEVIS

Pivot Pin

4шт.

29

09922100

CLAMP

Cylinder

1шт.

30

09922120

PLATE

1шт.

31

09524000

WASHER

Wear

1шт.

32

09922000

CLAMP

Assy.

1шт.

33

NSS

NOT SOLD SEPARAT

1/2" x 2" NC Cap Screw

2шт.

34

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" NC Set Screw

11шт.

35

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

NC Cap Screw

8шт.

36

16012104

BOLT

3/4" x 2-1/2" NC Cap Screw Gd 5

14шт.

37

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

NC Bolt

1шт.

38

16901269

CAPSCREW

3/4" x 17-3/4" NC Hex.

10шт.

39

16901270

BOLT

3/4" x 22" NC Hex.

2шт.

40

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

NC Cap Screw

14шт.

41

16902027

SPECIAL PIN

1-1/4" x 6-1/2" Sp. Bolt

1шт.

42

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

13шт.

43

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

11шт.

44

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

52шт.

45

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

21шт.

46

NSS

NOT SOLD SEPARAT

1-1/4" NC Slotted Nut

1шт.

47

NSS

NOT SOLD SEPARAT

1-1/4" NC Jam Nut

1шт.

48

NSS

NOT SOLD SEPARAT

3/4" Std. Flat Washer

18шт.

49

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

10шт.

50

17913000

SPECIAL WASHER

Square Bevel

12шт.

51

17414011

WASHER

7/8" Heavy

16шт.

52

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Mach., 14 Ga.

22шт.

53

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Mach., 10 Ga.

22шт.

54

NSS

NOT SOLD SEPARAT

1/8" NPT Zerk

21шт.

55

NSS

NOT SOLD SEPARAT

1/4" -28 Zerk

5шт.

56

NSS

NOT SOLD SEPARAT

1/4" - 1-1/2" Cotter Pin

8шт.

57

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

4шт.

58

NSS

NOT SOLD SEPARAT

3/16" x 2-1/2" Cotter Pin

1шт.

59

16012194

BOLT

3/4x" x 4-3/4" Nc Cap, Gd.5 (Not Shown)

5шт.
