Запчасти Case IH TURBO-TIGER (35.100.07) - HYDRAULIC CYLINDER ASSEMBLY (5" X 16" CYLINDER) (35) - HYDRAULIC SYSTEMS

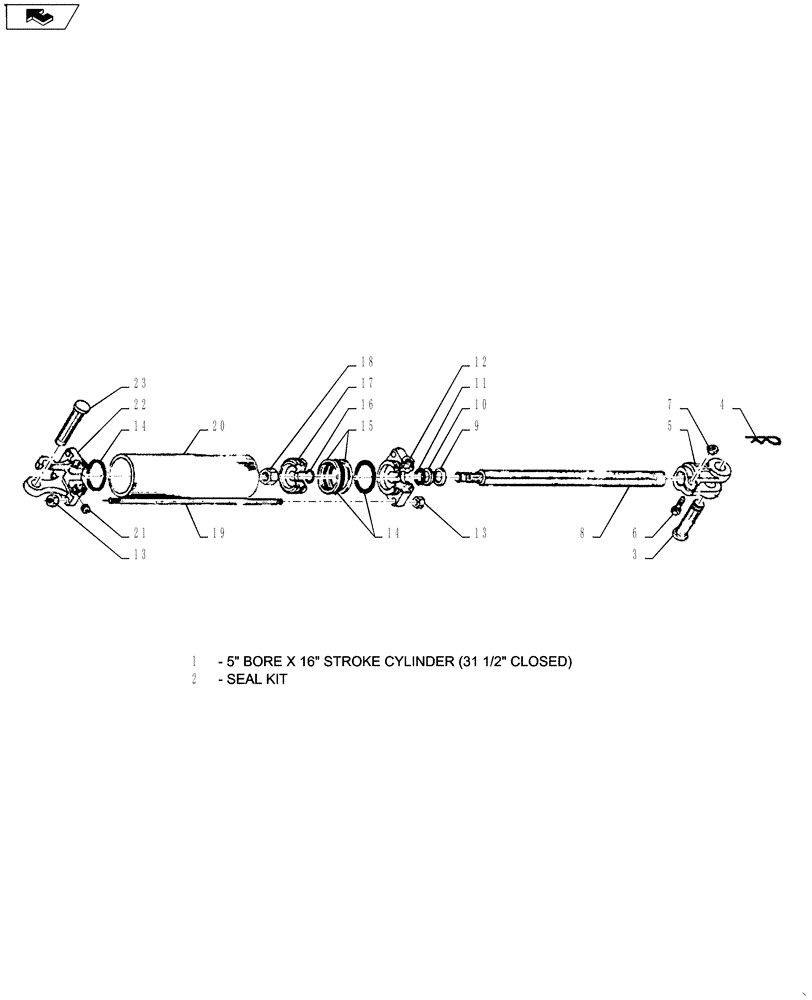

Схема запчастей Case IH TURBO-TIGER - (35.100.07) - HYDRAULIC CYLINDER ASSEMBLY (5" X 16" CYLINDER) (35) - HYDRAULIC SYSTEMS
13
17
7
22
5
8
11
21
1
12
19
20
10
9
14
home
15
4
3
23
2
13
16
14
6
18

Артикул

Название

Примечание

Количество

1

25050164

CYLINDER ASSY.

5" x 16"

1шт.

2

25805001

WIPER SEAL

Kit For 5" Cylinder W/2" Rod

1шт.

2

25805010

WIPER SEAL

Kit For 5" Cylinder W/1-1/2" Rod

1шт.

3

14820221

CLEVIS

1-1/4" x 2-3/4" EL Pin

1шт.

3

14820352

CLEVIS PIN

1-1/4" x 3-3/4" EL

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" # 11 Hair Pin

2шт.

5

25804002

SHAFT

Clevis Casting Rod End

1шт.

5

25804020

CLEVIS

Casting Rod End

1шт.

5

25804029

YOKE

Clevis Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25805003

PISTON ROD

2" For 16" Cylinder

1шт.

8

25805011

PISTON ROD

1-1/2" For 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25805004

HEAD

Cylinder

1шт.

12

25805012

CYLINDER ASSY.

Head

1шт.

13

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

17

25805005

PISTON

1шт.

18

14002002

NUT

1-1/4" NF Hex.

1шт.

19

25805006

THREADED TIE-ROD

4шт.

20

25805007

BARREL

For 5" x 16" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

22

25805008

1шт.

23

14820301

CLEVIS PIN

1-1/4" x 3-3/4" EL

1шт.

24

NSS

NOT SOLD SEPARAT

118 NPT Grease Zerk (Not Shown)

1шт.
