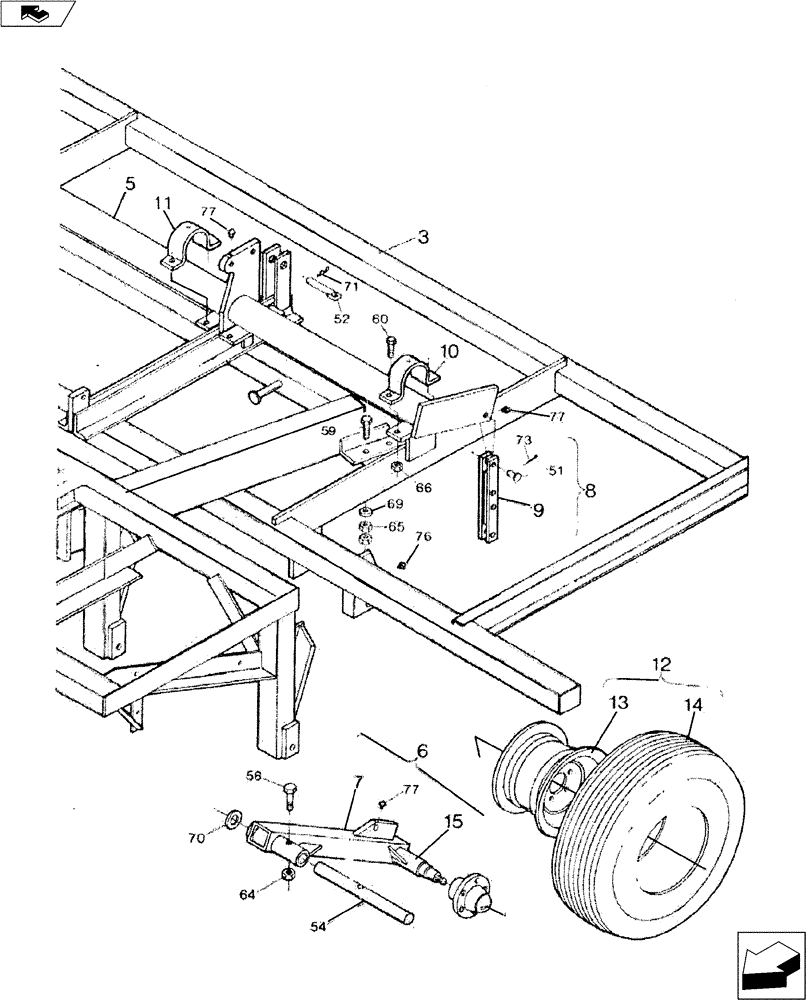

Запчасти Case IH TURBO-CHAMP (39.100.02) - MAIN FRAME - FRAME LIFT (39) - FRAMES AND BALLASTING

3

09610000

FRAMEWORK

Main

1шт.

5

09609000

TUBE

Main Frame Lift

1шт.

6

09611000

HUB

LH Spindle Arm With

1шт.

6

09612000

HUB

RH Spindle Arm With

1шт.

7

09611001

SPINDLE

LH Arm Less Hub

1шт.

7

09612001

SPINDLE

RH Arm Less Hub

1шт.

8

09613000

LIFT LINK

Assy.

2шт.

9

04605310

LIFT LINK

2шт.

10

09503010

CLAMP

Outer Lift Tube

2шт.

11

09504100

CLAMP

Inner Lift Tube

2шт.

12

10110154

WHEEL

10 x 15 6-Hole

2шт.

13

10110154

WHEEL

10 x 15 6-Hole

2шт.

14

NSS

NOT SOLD SEPARAT

12.5L x 15 6-Ply Tire

2шт.

15

28180300

HUB ASSY.

Q-803 6-Bolt

2шт.

51

14816180

HEADED PIN

1" D ia. X 2-1/8" EL Clevis

6шт.

52

14816395

CLEVIS

1" Dia. X 4-7/8" EL Pin

1шт.

54

09308000

ROD ASSY.

2" Dia. X 18-5/8" Lg. Pin

2шт.

56

16008134

BOLT

1/2" x 3-1/4" Gd. 5

2шт.

59

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

60

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

8шт.

64

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

65

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

24шт.

66

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

10шт.

69

17413011

WASHER

3/4" x 0.24 Thick

6шт.

70

17632020

BUSHING

2" Machinery

1шт.

71

NSS

NOT SOLD SEPARAT

3/16" x 3" Hair Pin

1шт.

73

NSS

NOT SOLD SEPARAT

1/4" X 1 - 1/2" Cotter Pin

4шт.

76

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

13шт.

77

NSS

NOT SOLD SEPARAT

1/4-28 Thread Grease Zerk

5шт.
