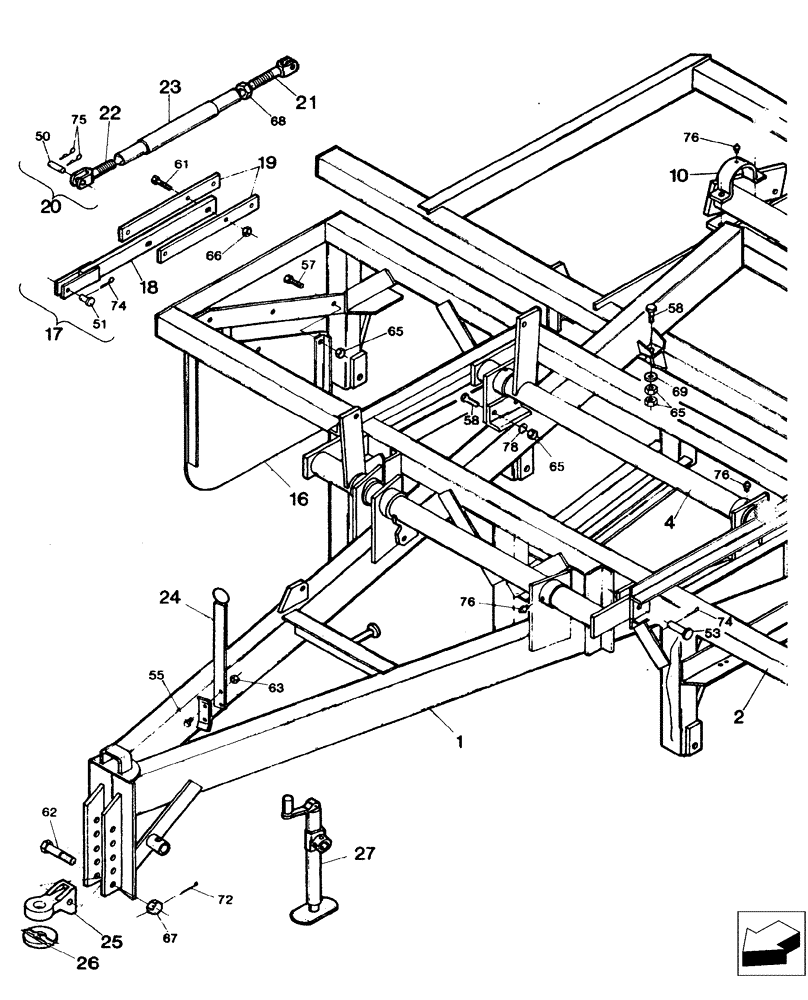

Запчасти Case IH TURBO-CHAMP (39.100.01) - MAIN FRAME - DISC LIFT (39) - FRAMES AND BALLASTING

1

09600015

FRAMEWORK

1шт.

2

09603100

FRAMEWORK

Disc

1шт.

4

09602510

FRAMEWORK

Disc Lift Tube

1шт.

10

09503010

CLAMP

Outer Left Tube

2шт.

16

09604000

SHIELD

RH Dirt

1шт.

16

09605000

SHIELD

LH Dirt

1шт.

17

09614001

LINK/SHACKLE

Assy., W/Pins

1шт.

18

09614100

LINK/SHACKLE

Bar

1шт.

19

09956200

LINK/SHACKLE

Bar

2шт.

20

32409000

TURNBUCKLE

W/Pins

1шт.

21

32407020

YOKE

RH Threaded End

1шт.

22

32407030

YOKE

LH Threaded End

1шт.

23

32409020

TUBE

1шт.

24

04615000

BRACKET

Hose Support

1шт.

25

20092071

ADJUSTABLE CLEVIS

Single

1шт.

26

20092071

ADJUSTABLE CLEVIS

Single

1шт.

27

84533450

JACK

5000 lb

1шт.

27

32252000

JACK ASSY.

5000#

1шт.

50

32405000

PIN

1" Dia. X 2" EL

2шт.

51

14816180

HEADED PIN

1" Dia. X 2-1/8" EL Clevis

6шт.

53

14820315

PIN

1-1/4" Dia. X 3-7/8" EL Clevis

4шт.

55

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Capscrew

2шт.

57

12-1232

GEAR

3/4" x 2" NC Capscrew Gd. 3

8шт.

58

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

6шт.

61

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

2шт.

62

16902027

SPECIAL PIN

1-1/4" x 6-1/2" NC Hex. Bolt

1шт.

63

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

65

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

24шт.

66

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

10шт.

67

NSS

NOT SOLD SEPARAT

1/14" NC Slotted Nut

1шт.

68

NSS

NOT SOLD SEPARAT

1-1/4" NC Jam Nut

1шт.

69

17413011

WASHER

3/4" x 0.24 Thick

6шт.

72

NSS

NOT SOLD SEPARAT

3/16" x 2-1/2" Cotter Pin

1шт.

74

NSS

NOT SOLD SEPARAT

1/4" X 2" Cotter Pin

6шт.

75

32406000

PIN

Clip

4шт.

76

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

13шт.

78

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

4шт.
