(35.100.03) - HYDRAULIC CYLINDER - 3" X 16"

Запчасти Case IH TURBO-CHAMP (35.100.03) - HYDRAULIC CYLINDER - 3" X 16" (35) - HYDRAULIC SYSTEMS

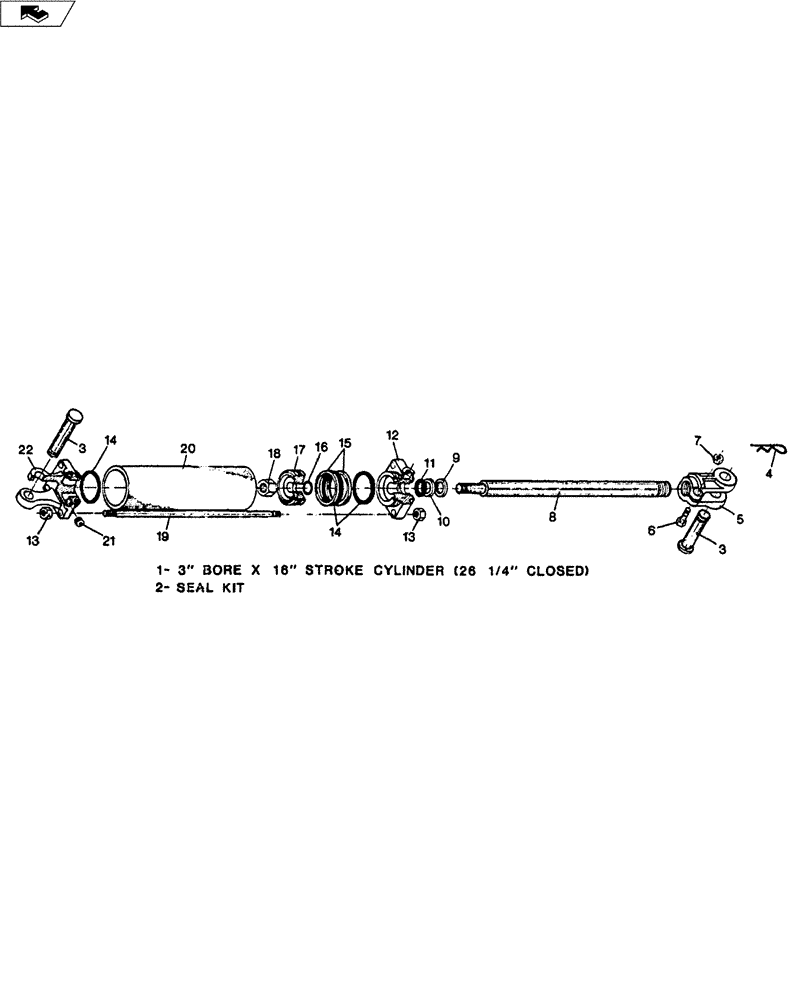

Схема запчастей Case IH TURBO-CHAMP - (35.100.03) - HYDRAULIC CYLINDER - 3" X 16" (35) - HYDRAULIC SYSTEMS
21
6
3
13
7
12
14
13
16
8
10
2
22
19
11
1
15
20
18
5
14
3
4
17
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25030166

HYDRAULIC CYLINDER

3" x 16", 26-1/4" Closed

1шт.

2

25803011

KIT

Seal For 3" Cylinder

1шт.

3

25890100

KIT

1 " x 2-3/4" EL Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" 11# Hair Pin

4шт.

5

25803012

CLEVIS

Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803023

ROD

1-1/2" For 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

25803014

HEAD

Cylinder

1шт.

13

25803021

NUT

Hex.

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

Piston

1шт.

17

25330160R

REMAN-HYD CYLINDER

TURBO-CHAMP®, DMI, 3" X 16", Piston

1шт.

17

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

18

25803022

NUT

Hex.

1шт.

19

25803016

THREADED TIE-ROD

4шт.

20

25803024

BARREL

For 3" x 16" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

22

25803018

Cylinder

1шт.
