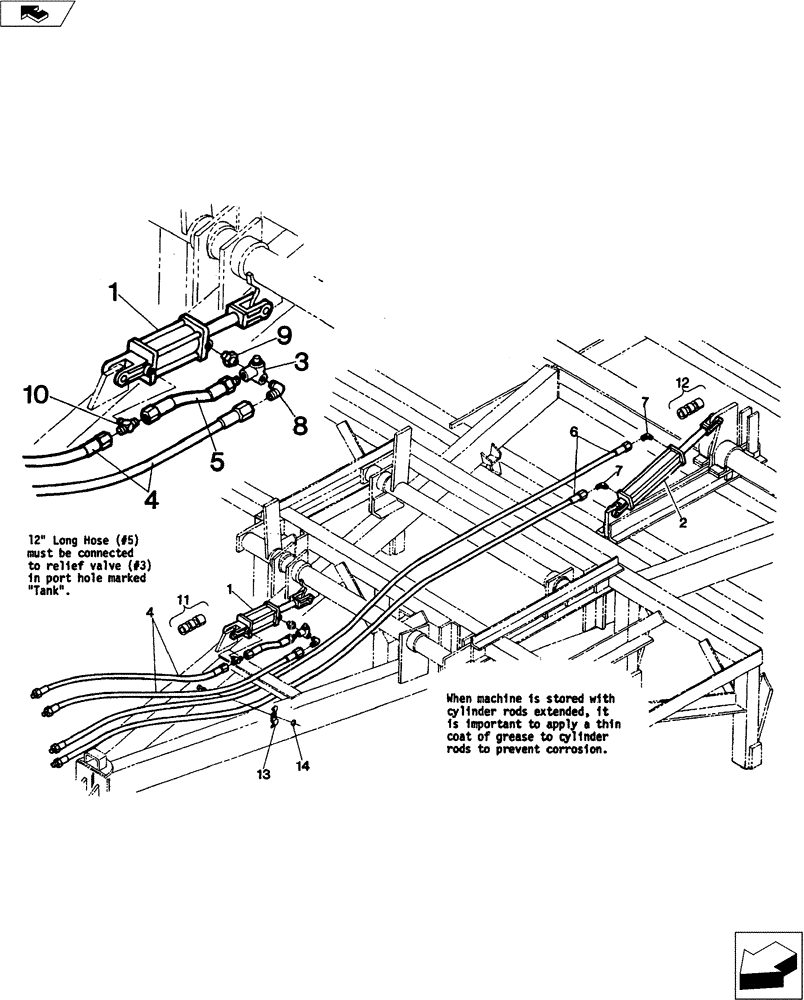

Запчасти Case IH TURBO-CHAMP (35.100.01) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

25030081

HYDRAULIC CYLINDER

3" x 8"

1шт.

2

25030166

HYDRAULIC CYLINDER

3" x 16"

1шт.

3

25405020

VALVE PRESSURE RELIE

1шт.

4

25600685

3/8" x 144" Long

2шт.

5

25600812

HOSE

1/2" Hyd. x 12" Long

1шт.

6

25600894

1/2" x 252" Long

2шт.

7

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

2шт.

8

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

1шт.

9

25707512

LUBE NIPPLE

1/2" NPTM

1шт.

10

218-1113

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Br

1шт.

11

25800010

CYLINDER

Stroke Control Segments (1-1/4"Rod)

1шт.

12

25800030

CYLINDER

Stroke Control Segments (1-1/2"Rod)

1шт.

13

22530601

HOSE CLAMP

Double

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.
