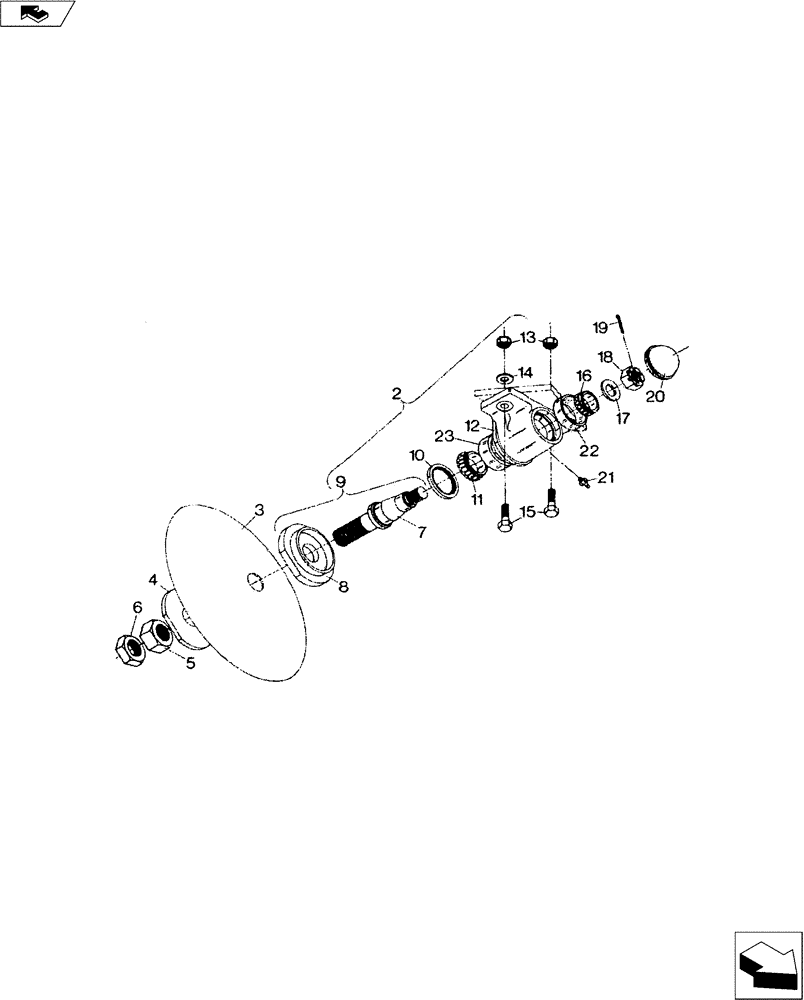

Запчасти Case IH TURBO-CHAMP (75.200.03) - DISC HUB ASSEMBLY (75) - SOIL PREPARATION

1

09942000

HUB ASSY.

W/Disc blade

1шт.

2

28003000

HUB ASSY.

LH/RH, Includes Ref. 9-12 & 16-21

1шт.

3

443639A1

PLOW DISC

24" Blade

1шт.

4

09904020

WASHER

Outside

1шт.

5

425-1628

NUT,1 3/4"-5, G5, Hvy

1шт.

6

14032800

LOCK NUT

1-3/4" NC Jam

1шт.

7

28890001

SPINDLE

Includes Ref. 11 &16

1шт.

8

09942000

HUB ASSY.

W/Disc blade

1шт.

9

09904101

SPINDLE

W/Washer, Includes Ref. 7 & 8

1шт.

10

21932750

SEAL

2.75 ID (CR# 531108)

1шт.

In An Emergency, Chicago Rawhide #27394 May Be Substituted For This Seal

1шт.

11

3216619R91

TAPERED BEARING,55mm ID x 26mm W

2.165 ID Cone (Timken# JLM506878E)

1шт.

12

28703000

HUB ASSY.

LH, Includes Ref. 22 & 23

1шт.

13

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

2шт.

14

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" Heavy

1шт.

15

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

2шт.

16

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.796 ID (Timken#25590)

1шт.

17

17421020

GROMMET

1-1/4" Special Washer

1шт.

18

NSS

NOT SOLD SEPARAT

1-1/4" NF Slotted Nut

1шт.

19

NSS

NOT SOLD SEPARAT

7/32" x 2" Cotter Pin

1шт.

20

28480320

DUST CAP

Hub

1шт.

21

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

22

130503H

BEARING CUP

3.265 OD (Timken #25520)

1шт.

23

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.543 OD (Timken #JLM506810)

1шт.
