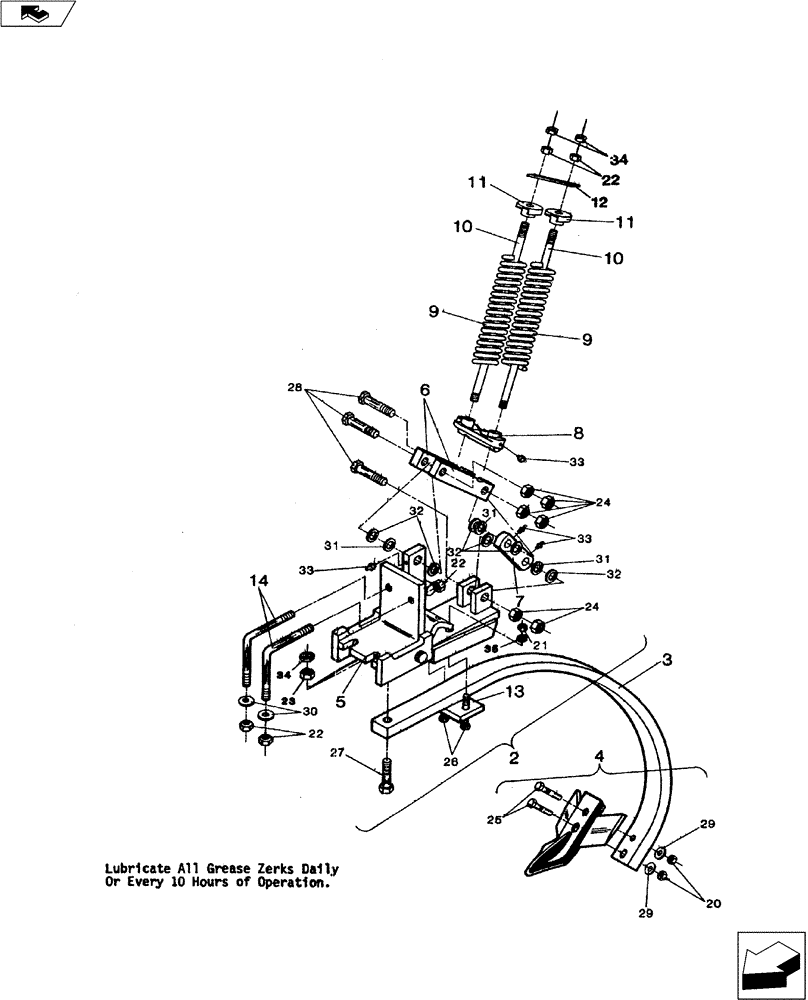

Запчасти Case IH TURBO-CHAMP (75.200.01) - AUTOMATIC RESET SHANK ASSEMBLY (75) - SOIL PREPARATION

1

09560001

KIT

32" A/R Shank Assy., W/Turbo Point (Not Shown)

1шт.

2

09562000

KIT

Auto Reset Assy. (Less 3&4)

1шт.

3

33020032

SHANK

1-1/2" x 2" x 32"

1шт.

4

33310061

PLOUGHSHARE

Turbo C Point W/Hardware

1шт.

5

09561000

MOUNTING PARTS

Pivot Assy.

1шт.

6

09563000

UPPER LINK

Bar

2шт.

7

09564000

LOWER LINK

Bar

1шт.

8

09565100

HOLDER

Spring Casting

1шт.

9

24156203

SPRING

Compression

2шт.

10

16909128

ROD

2шт.

11

20090050

HOLDER

Spring Casting

2шт.

12

09566000

1шт.

13

09568000

PLATE

Flat

1шт.

14

16512470

SPECIAL BOLT

Bent Threaded Rod

2шт.

20

NSS

NOT SOLD SEPARAT

1/2" NC Lock Nut

2шт.

21

NSS

NOT SOLD SEPARAT

5/8" NC Lock Nut

2шт.

22

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

8шт.

23

NSS

NOT SOLD SEPARAT

3/4" NC Heavy Hex. Nut

1шт.

24

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Jam Nut

6шт.

25

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC

2шт.

26

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

2шт.

27

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

28

16901413

BOLT

7/8" x 3-1/4" NC Special Hex.

3шт.

29

NSS

NOT SOLD SEPARAT

1/2" Std Washer

2шт.

30

17413011

WASHER

3/4" x 0.24 Thick

2шт.

31

17614010

BUSHING

7/8" Mach 18 Ga.

3шт.

32

17614020

BUSHING

7/8" Mach 14 Ga.

6шт.

33

NSS

NOT SOLD SEPARAT

1-4"-28 Straight Zerk

5шт.

34

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

3шт.

35

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

2шт.
