(39.110.02) - JACK ASN 101060

Запчасти Case IH TURBO-CHAMP (39.110.02) - JACK ASN 101060 (39) - FRAMES AND BALLASTING

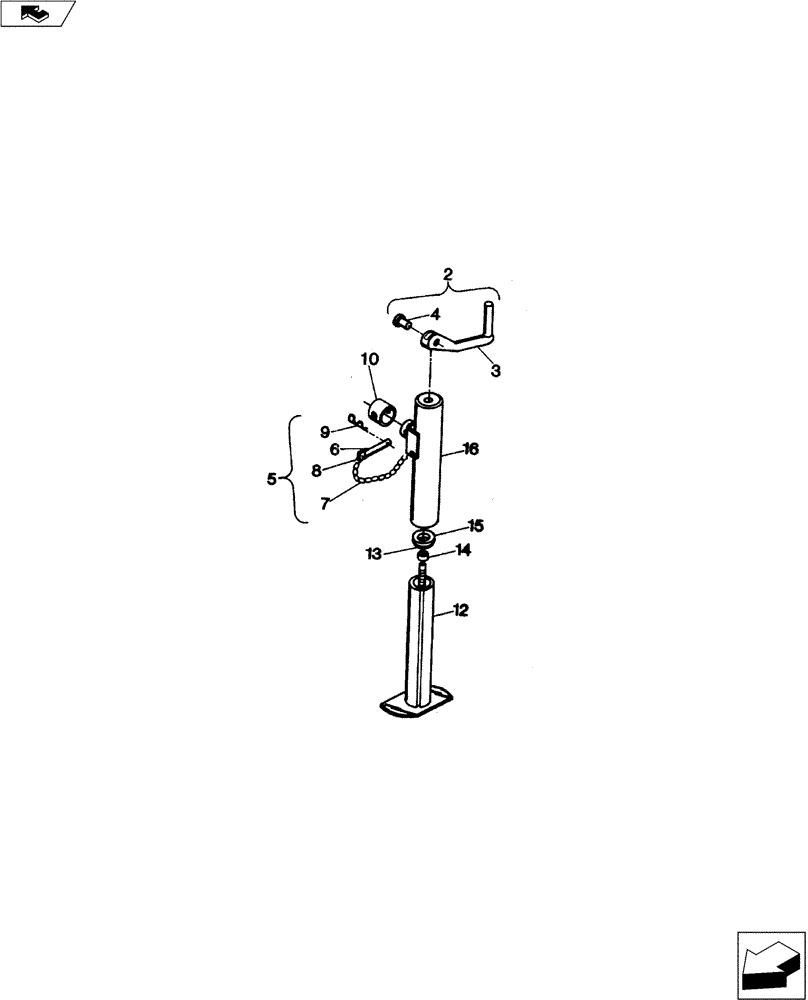

Схема запчастей Case IH TURBO-CHAMP - (39.110.02) - JACK ASN 101060 (39) - FRAMES AND BALLASTING
7
5
16
2
9
3
14
10
15
12
13
6
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

32252000

JACK ASSY.

5000 LB (Not Shown), Start Serial: 101060

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit, Includes Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

32250001

REPAIR KIT

Locking Pin, Includes Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

Locking Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Chain

1шт.

8

NSS

NOT SOLD SEPARAT

S-Hook

2шт.

9

NSS

NOT SOLD SEPARAT

Hairpin

1шт.

10

09937112

GUIDE BUSHING

Mounting Bracket

1шт.

11

32220002

CYLINDER ASSY.

Inner Ram Kit, Includes Ref. 4, 13-15 (Not Shown)

1шт.

12

NSS

NOT SOLD SEPARAT

Inner Ram

1шт.

13

21890751

1шт.

14

32220004

Felt

1шт.

15

21890750

THRUST BEARING

Washer

1шт.

16

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.
