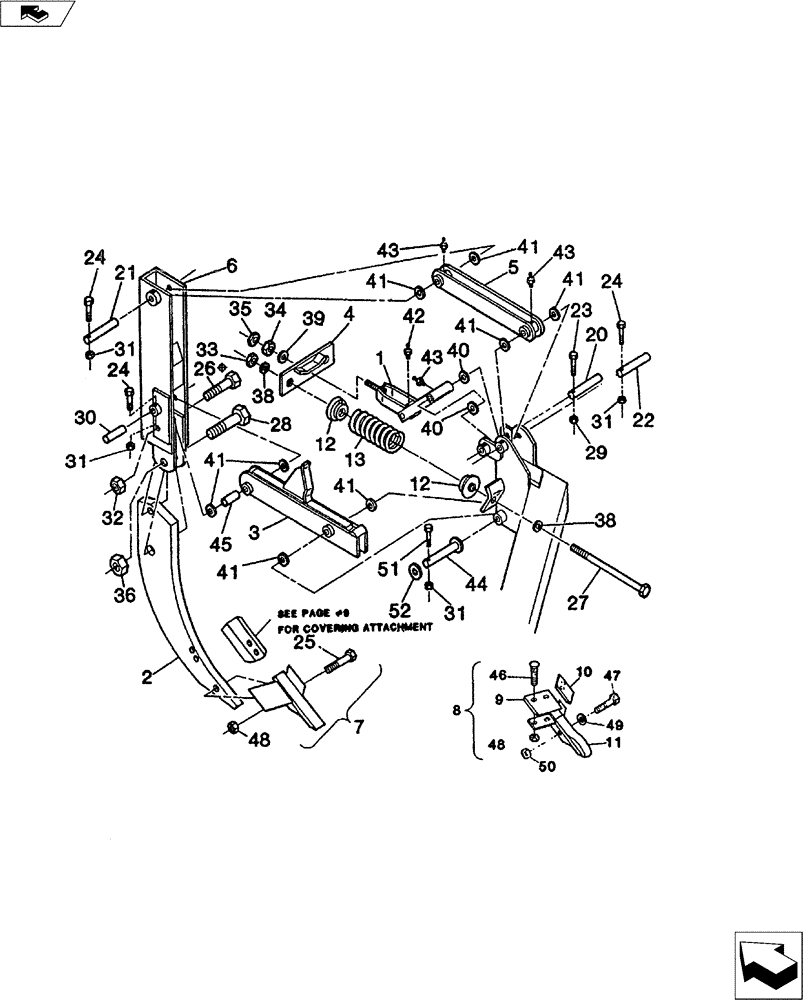

Запчасти Case IH TIGER (75.200.02) - AUTO RESET ASSEMBLY (75) - SOIL PREPARATION

1

09960800

LINKAGE

Roller

1шт.

2

09961103

SHANK

H.S.

1шт.

3

09961801

LINK

Lower W/Bushings

1шт.

4

09961900

BRACKET

Top Spring Holder

1шт.

5

09962101

LINK

Upper

1шт.

6

09962200

BRACKET

A/R Upright

1шт.

7

09907000

POINT

Tiger Assy.

1шт.

8

09907010

POINT

Tiger Assy., H.D.

1шт.

9

09907002

FRAME

R.H. Wing, Includes Ref., 9, 46, 48

1шт.

10

09907003

FRAME

L.H. Wing, Includes Ref., 10, 46 ,48

1шт.

11

09907010

POINT

Tiger, Includes Ref., 11, 47, 48, 49

1шт.

12

20090090

SPRING BOX

Holder Casting

4шт.

13

24162501

COIL SPRING

Compression

2шт.

20

14891659

SPECIAL PIN

1" Dia., x 7-5/16" Lg.

1шт.

21

14892045

SPECIAL PIN,31.75mm OD x 158.75mm L

1-1/4" Dia., x 6-1/4" Lg.

2шт.

22

14892055

SPECIAL PIN

1-1/4" Dia x 7" Lg.

1шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

NC

1шт.

24

426-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

NC

4шт.

25

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC

1шт.

26

16012241

CAPSCREW

3/4" x 6" NC Hex., Gd. 2

1шт.

27

16901272

BOLT

3/4" x 20" NC Hex.

2шт.

28

16902416

SPECIAL BOLT

1-1/2" x 4" NC Hex.

1шт.

29

NSS

NOT SOLD SEPARAT

3/8" NC Hex., Lock Nut

1шт.

30

14892053

SPECIAL PIN

1-1/4" Dia., x 5-5/8" Lg.

1шт.

31

NSS

NOT SOLD SEPARAT

7/16" NC Hex., Lock Nut

4шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

1шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Lock Nut

2шт.

34

NSS

NOT SOLD SEPARAT

7/8" NC Hex., Nut

1шт.

35

NSS

NOT SOLD SEPARAT

7/8" NC Hex., Jam Nut

1шт.

36

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

NC Hex.

1шт.

37

NSS

NOT SOLD SEPARAT

7/16" Std., Washer (Not Shown)

2шт.

38

NSS

NOT SOLD SEPARAT

3/4" Std., Washer

4шт.

39

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8", 1/4" Thick

1шт.

40

17616020

WASHER

1" Dia Machine Bushing 14 Ga.

2шт.

41

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Dia., Machine 14 Ga.

1шт.

41

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Dia Machine 10 Ga.

1шт.

42

NSS

NOT SOLD SEPARAT

1/4" - 28 Straight Zerk

2шт.

43

NSS

NOT SOLD SEPARAT

1/8" NPT Straight Zerk

3шт.

44

14820631

CLEVIS

1-1/4" Dia., x 7" Lg.

1шт.

45

44012503

BUSHING,34.92mm ID x 38.73mm OD x 73.15mm L

2-7/8" Lg.

1шт.

46

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" Plow Bolt

4шт.

47

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

NC

1шт.

48

NSS

NOT SOLD SEPARAT

1/2" NC Hex., Nut

1шт.

49

NSS

NOT SOLD SEPARAT

1/2" Std., Washer

1шт.

50

NSS

NOT SOLD SEPARAT

1/2" NC Heavy Nut

1шт.

51

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

NC

1шт.

52

17421021

WASHER

1-1/4" Heavy

1шт.
