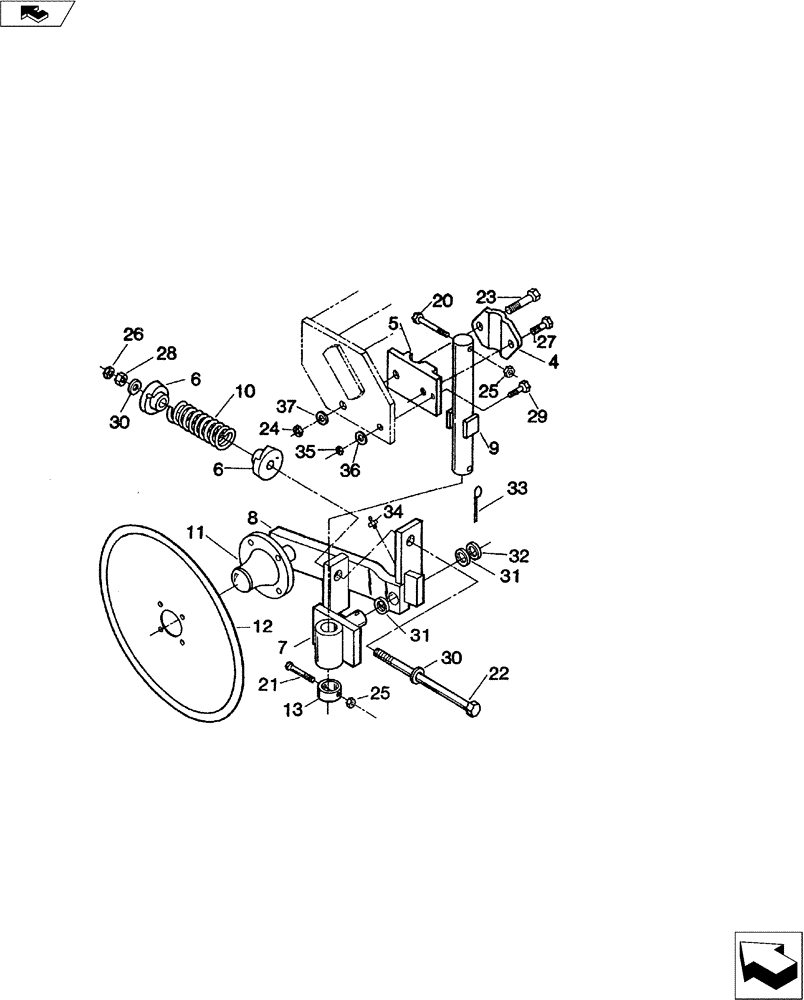

Запчасти Case IH TIGER (75.200.01) - SPRING COULTER ASSEMBLY (75) - SOIL PREPARATION

1

09996033

FIELD ATTACHMENT

3-Coulter, Includes 3 Comp. Coulter Assy., & Mounts (Not Shown)

1шт.

2

09996035

FIELD ATTACHMENT

2-Coulter, Includes 2 Comp. Coulter Assy., & Mounts (Not Shown)

1шт.

3

04642010

COULTER

Includes 6, 7, 8, 10 & Hardware (Not Shown)

1шт.

4

20092110

CLAMP

Coulter Casting

1шт.

5

09983000

BRACKET

Coulter Mounting

1шт.

6

20090050

HOLDER

Spring Casting

2шт.

7

04642020

COULTER

Pivot Weld

1шт.

8

04642030

POWER ARM

Coulter W/Hub

1шт.

9

04649000

COULTER

Shaft

1шт.

10

24156205

COIL SPRING

Compression

1шт.

11

28163311

HUB ASSY.

633 4-Bolt

1шт.

12

443638A1

PLOW DISC

24" Coulter Blade - Smooth

1шт.

13

49529000

PIPE

Coulter Bottom Collar

1шт.

20

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

NC

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Cap Screw

1шт.

22

413-10216

BOLT,Hex, 5/8" - 11 x 13-1/2", Gr 5

NC

1шт.

23

16012175

BOLT

3/4" x 4-1/4" NC Gd., 5

1шт.

24

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

1шт.

25

NSS

NOT SOLD SEPARAT

3/8" NC Hex., Nut

1шт.

26

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

27

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

NC

1шт.

28

14021000

NUT

5/8" Hvy., Duty

1шт.

29

424-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 2

NC Gd. 2

1шт.

30

17411012

WASHER

11/16" ID x 1-3/4" OD x 0.250

2шт.

31

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Mach., 14 Ga.

2шт.

32

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Mach.

1шт.

33

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

34

NSS

NOT SOLD SEPARAT

1/8" NPT Zerk

1шт.

35

NSS

NOT SOLD SEPARAT

1/2" NC Hex., Nut

1шт.

36

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

1шт.

37

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

1шт.
