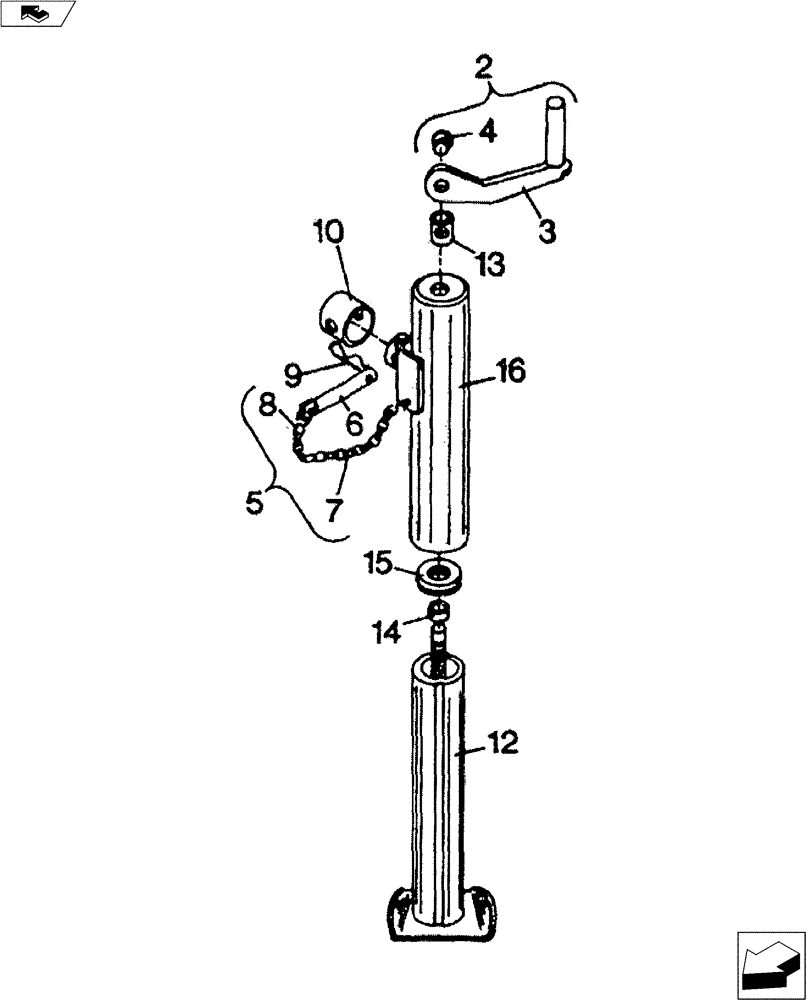

Запчасти Case IH S-SERIES (39.110.02) - JACK ASSEMBLY (39) - FRAMES AND BALLASTING

1

84533450

JACK

5000 lb

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

32220001

REPAIR KIT

Locking Pin

1шт.

6

NSS

NOT SOLD SEPARAT

Locking Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Chain

1шт.

8

NSS

NOT SOLD SEPARAT

S-Hook

2шт.

9

NSS

NOT SOLD SEPARAT

Hairpin

1шт.

10

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting Bracket

1шт.

11

32220002

CYLINDER ASSY.

Inner Ram Kit (Not Shown)

1шт.

12

NSS

NOT SOLD SEPARAT

lnner Ram

1шт.

13

32210750

SLEEVE

Handle

1шт.

14

32220004

1шт.

15

32220003

THRUST BEARING

1шт.

16

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.
