(35.100.02) - HYDRAULIC CYLINDER ASSEMBLY

Запчасти Case IH S-SERIES (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

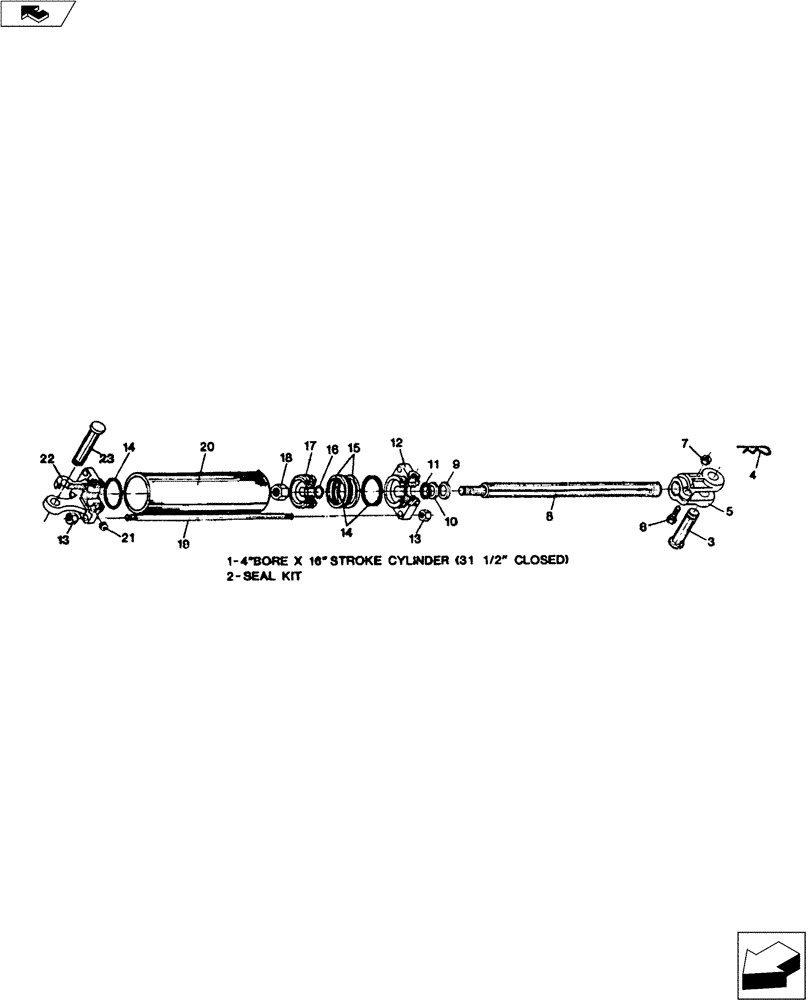

Схема запчастей Case IH S-SERIES - (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
21
19
6
4
23
13
13
11
1
2
14
16
10
14
3
22
18
15
7
20
5
8
12
9
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25040160

4" Bore x 16"

1шт.

2

25804001

KIT

Seal For 4" Bore W/2" Rod

1шт.

3

14820221

CLEVIS

1-1/4" x 2-3/4" EL Pin

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" 11 Hairpin

2шт.

5

25804002

SHAFT

Clevis Casting Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25804003

2" For 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25804004

1шт.

13

NSS

NOT SOLD SEPARAT

5/8" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25804005

SHAFT

Piston

1шт.

18

14001602

NUT

1" NF Hex.

1шт.

19

25804006

THREADED TIE-ROD

4шт.

20

25804007

For 4" x 16"

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Pipe Plug

1шт.

22

25804008

1шт.

23

14820241

CLEVIS

1-1/4" x 3 EL Pin

1шт.
