(35.100.01) - HYDRAULIC CYLINDER ASSEMBLY

Запчасти Case IH S-SERIES (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

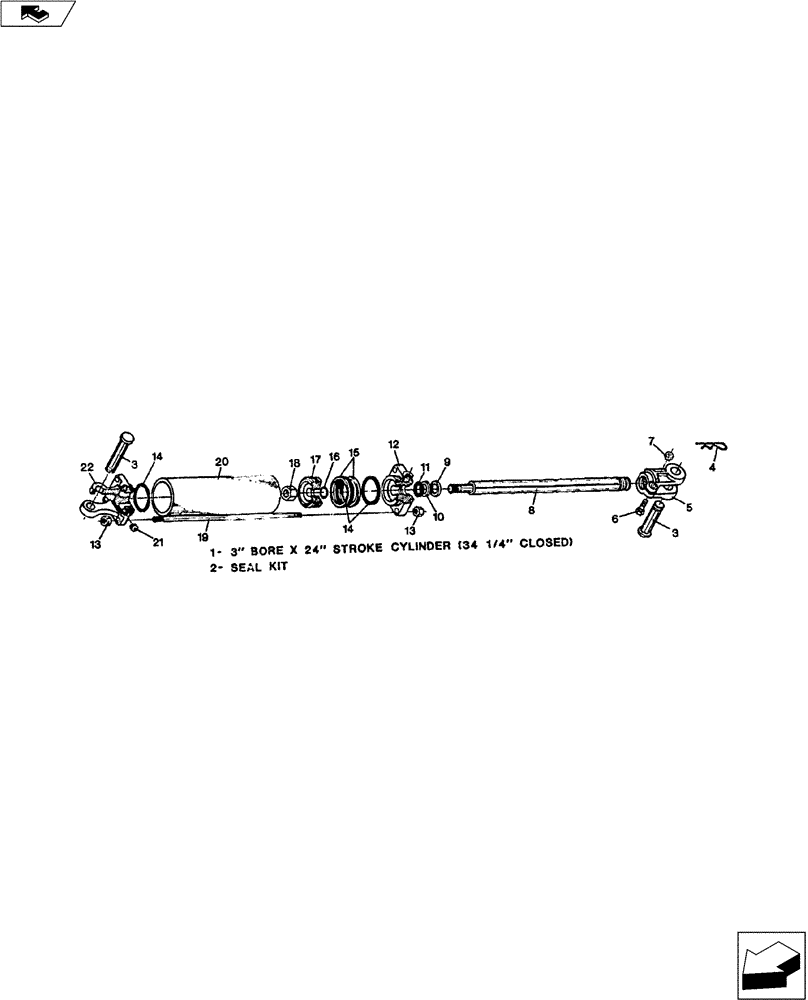

Схема запчастей Case IH S-SERIES - (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
2
20
4
12
13
16
19
21
13
9
8
3
10
15
14
17
22
3
18
11
14
1
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25030240

CYLINDER

3" Bore x 24"

1шт.

2

25803007

KIT

Seal For 3" Bore W/1-1/4" Rod

1шт.

3

25890100

KIT

1" Cyl. Bag Of Parts

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" 11 Hair Pin

2шт.

5

25803001

SHAFT

Clevis Casting End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803008

1-1/4" For 24"

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25803002

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25803003

SHAFT

1шт.

18

NSS

NOT SOLD SEPARAT

3/4'' NF Hex. Nut

1шт.

19

25803009

TIE-ROD

4шт.

20

25803010

BARREL

For 3" Bore x 24" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" NPT Pipe Plug

1шт.

22

25803006

YOKE

Cylinder Base

1шт.
