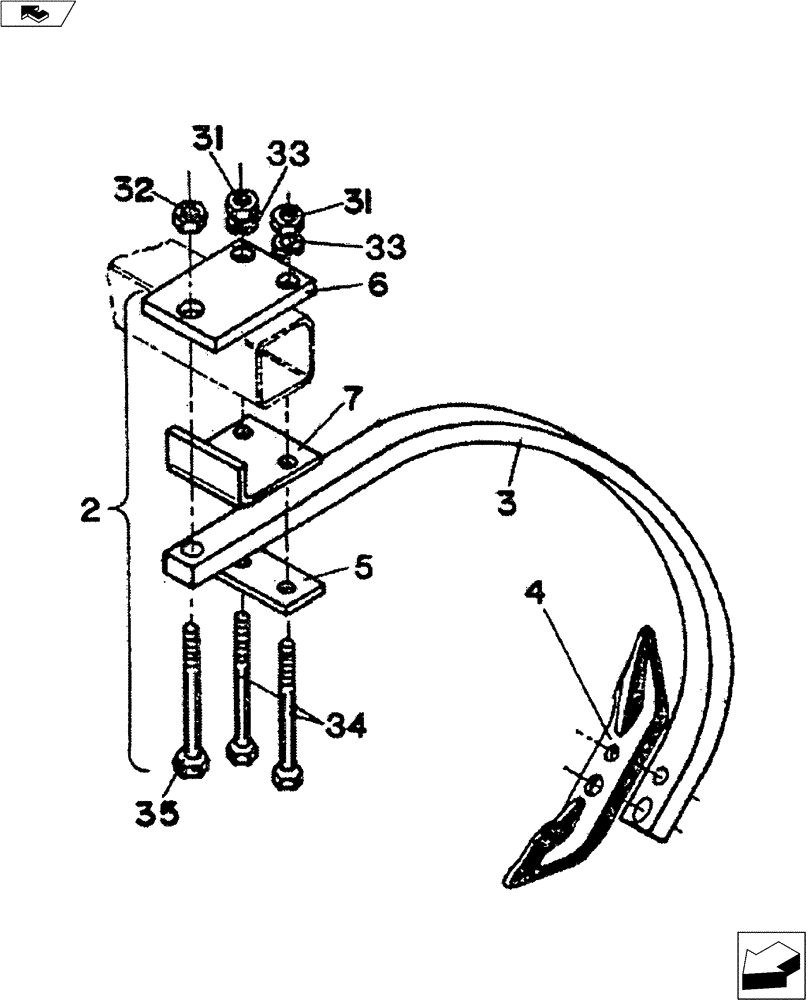

Запчасти Case IH S-SERIES (75.200.05) - 32" RIGID SHANK ASSEMBLY (75) - SOIL PREPARATION

1

09222001

SHANK

32'' Rigid Assy. Less Point (Not Shown)

1шт.

2

P0466017

MOUNTING PLATE

Rigid Shank Bundle Less Shank & Point

1шт.

3

33020032

SHANK

1-1/4" x 2" x 32"

1шт.

4

33310041

POINT

Heavy Duty Chisel W/Hardware

1шт.

5

09236000

CLAMP

Plate

1шт.

6

09213000

CLAMP

Top Plate

1шт.

7

09235000

CLAMP

Lower Shank Mtg. Plate

1шт.

30

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut (Not Shown)

2шт.

31

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

33

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

2шт.

34

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

2шт.

35

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

1шт.
