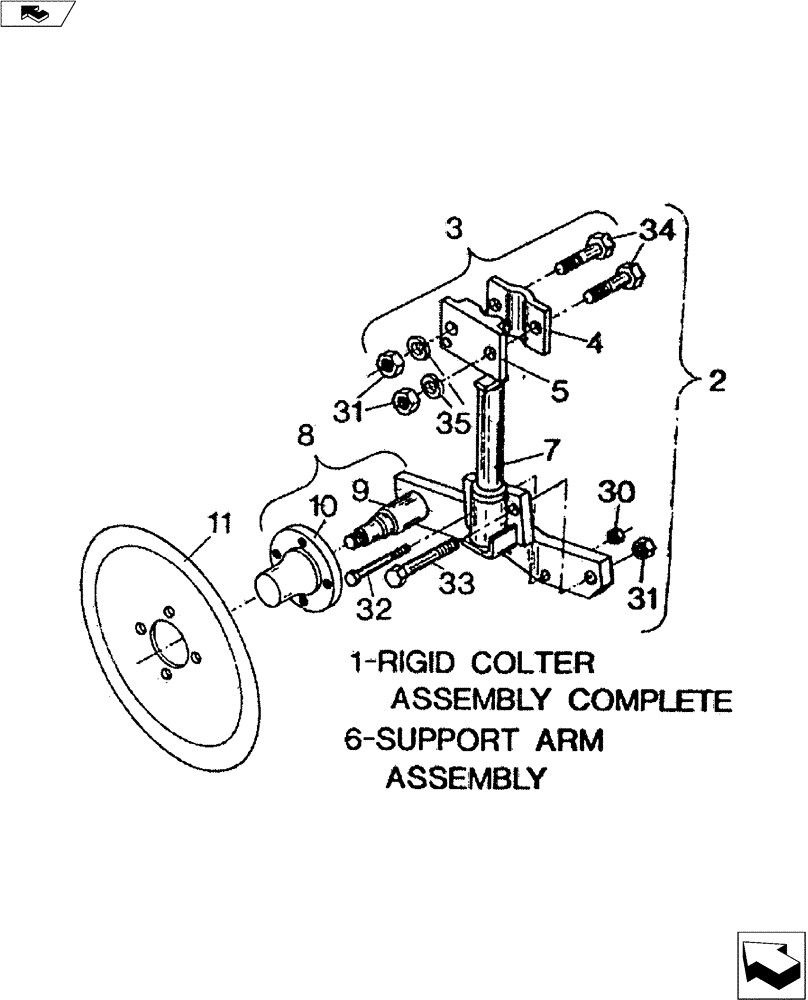

Запчасти Case IH S-SERIES (75.200.04) - SPRING LOADED COLTER ASSEMBLY S-SERIES CHISEL PLOW (75) - SOIL PREPARATION

1

02455000

CHOPPER BODY ASSY

Spring Loaded Coulter Complete

1шт.

2

02455001

COULTER

Spring Loaded Assy. Less Blade

1шт.

3

02454000

1шт.

4

20092110

CLAMP

Top Coulter

1шт.

5

20092023

CLAMP

Coulter

1шт.

6

02430000

SUPPORTING ARM

1шт.

7

02431000

MOUNTING PARTS

Support Arm Upper

1шт.

8

49326000

SUPPORTING ARM

1шт.

9

49333000

SUPPORTING ARM

Less Hub

1шт.

10

28163300

HUB ASSY.

Q-633

1шт.

11

20090050

HOLDER

Spring Casting

2шт.

12

24156205

COIL SPRING

(Not Shown)

1шт.

13

443638A1

PLOW DISC

24" Coulter Blade (Not Shown)

1шт.

30

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

2шт.

31

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.

32

NSS

NOT SOLD SEPARAT

5/8" x 14" NC Hex. Bolt

1шт.

33

NSS

NOT SOLD SEPARAT

3/4" x 4-1/2" NC Hex. Bolt Gd. 5

2шт.

34

17411012

WASHER

11/16" ID x 1-3/4" OD x 1/4" Thick

2шт.

35

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

2шт.

36

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machinery 14 Ga. (Not Shown)

2шт.

37

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machinery 10 Ga. (Not Shown)

1шт.

38

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin (Not Shown)

1шт.

39

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk (Not Shown)

1шт.
