(75.200.03) - RIGID COLTER ASSEMBLY S-SERIES CHISEL

Запчасти Case IH S-SERIES (75.200.03) - RIGID COLTER ASSEMBLY S-SERIES CHISEL (75) - SOIL PREPARATION

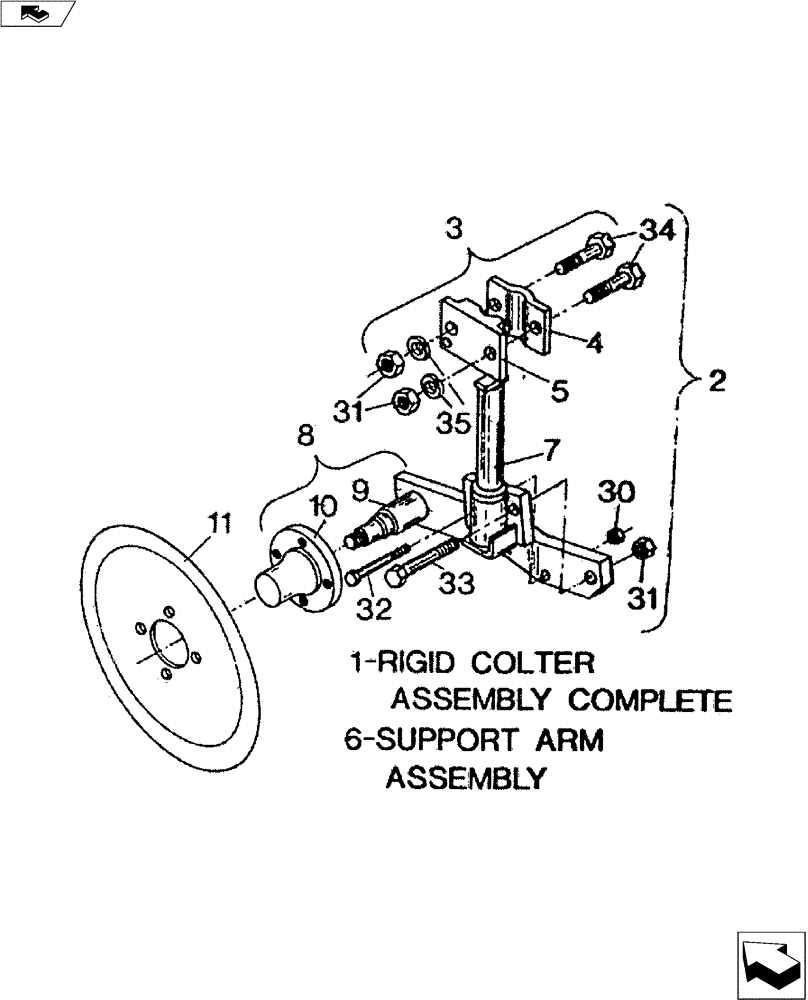

Схема запчастей Case IH S-SERIES - (75.200.03) - RIGID COLTER ASSEMBLY S-SERIES CHISEL (75) - SOIL PREPARATION
35
32
8
9
3
11
1
5
31
33
7
6
34
31
4
2
10
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

02453000

CHOPPER BODY ASSY

Rigid Coulter Complete

1шт.

2

02453001

COULTER

Rigid Assy. Less Blade

1шт.

3

02454000

Bundle W/Hardware

1шт.

4

20092110

CLAMP

Top Coulter

1шт.

5

20092023

CLAMP

Coulter

1шт.

6

02453300

CHOPPER BODY ASSY

Support Arm W/Hardware

1шт.

7

02453400

MOUNTING PARTS

Support Arm Upper

1шт.

8

02453200

SUPPORTING ARM

1шт.

9

02453201

SUPPORTING ARM

Less Hub

1шт.

10

28163300

HUB ASSY.

Q-633

1шт.

11

443638A1

PLOW DISC

24" Coulter Blade

1шт.

30

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

3шт.

32

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

NC

1шт.

33

16012124

BOLT

3/4" x 3" NC Hex. Gd. 5

1шт.

34

16012164

BOLT

3/4" x 4" NC Hex. Gd. 5

2шт.

35

NSS

NOT SOLD SEPARAT

3/4" Lock Washers

2шт.
