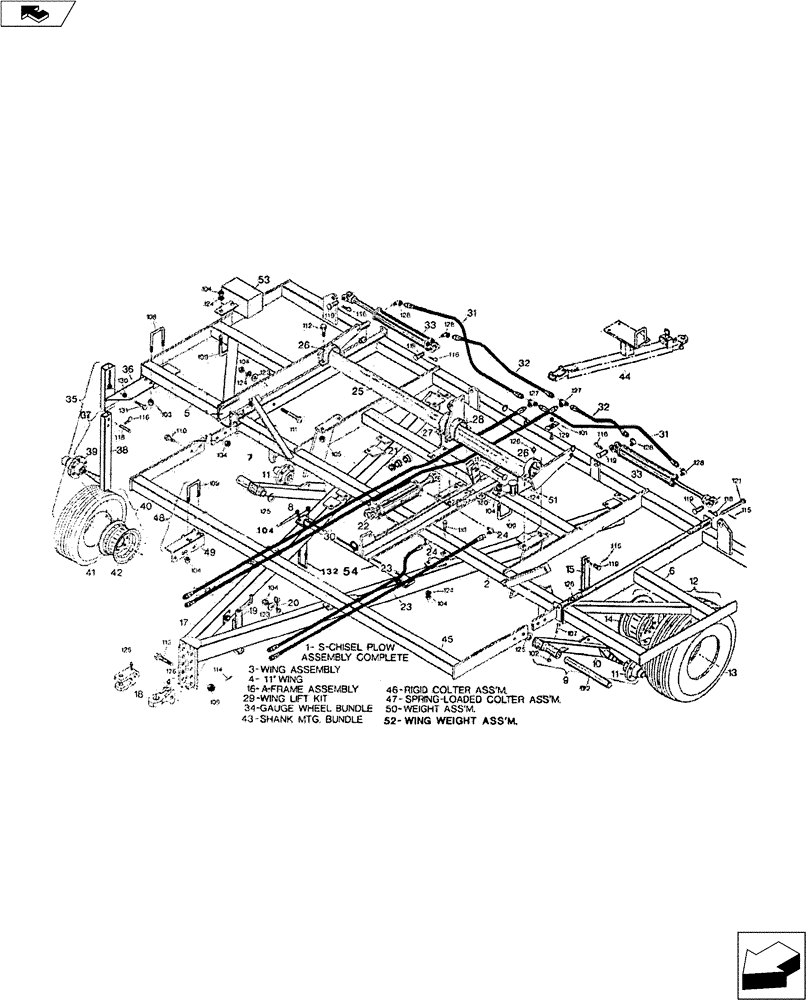

Запчасти Case IH S-SERIES (75.200.02) - S-CHISEL PLOW ASSEMBLY (75) - SOIL PREPARATION

1

NSS

NOT SOLD SEPARAT

9-Shank Chisel Plow Assy. Complete

1шт.

1

NSS

NOT SOLD SEPARAT

11-Shank Chisel Plow Assy. Complete

1шт.

1

NSS

NOT SOLD SEPARAT

13-Shank Chisel Plow Assy. Complete

1шт.

1

NSS

NOT SOLD SEPARAT

15-Shank Chisel PIow Assy. Complete

1шт.

1

NSS

NOT SOLD SEPARAT

17-Shank Chisel Plow Assy. Complete

1шт.

1

NSS

NOT SOLD SEPARAT

19-Shank Chisel Plow Assy. Complete

1шт.

2

09501100

FRAME

Main

1шт.

3

09512000

CHOPPER BODY ASSY

11" Wing

2шт.

3

09514000

CHOPPER BODY ASSY

42" RH Wing

1шт.

3

09515000

CHOPPER BODY ASSY

42" LH Wing

1шт.

3

09516000

CHOPPER BODY ASSY

56" RH Wing

1шт.

3

09517000

CHOPPER BODY ASSY

56" LH Wing

1шт.

4

09512100

FRAME

11" Wing

2шт.

5

09514100

FRAME

42" RH Wing

1шт.

5

09516100

FRAME

56" RH Wing

1шт.

6

09513100

FRAME

42" LH Wing

1шт.

6

09517100

FRAME

56" LH Wing

1шт.

7

09506000

CHOPPER BODY ASSY

RH Spindle Arm

1шт.

8

09526000

CHOPPER BODY ASSY

RH Spindle Arm Less Hub

1шт.

9

09507000

CHOPPER BODY ASSY

LH Spindle Arm

1шт.

10

09527000

CHOPPER BODY ASSY

LH Spindle Arm Less Hub

1шт.

11

28380301

PULLEY

Q-803 Hub Assy.

2шт.

12

10110154

WHEEL

10 x 15 6 Hole W/Guard

2шт.

13

NSS

NOT SOLD SEPARAT

12.5L x 15 Tire

2шт.

14

10110154

WHEEL

10 X 15 6 Hole W/Guard

2шт.

15

09508000

LINK

Lift

2шт.

16

09513000

CHOPPER BODY ASSY

A-Frame W/Single Clevis & Jack

1шт.

16

09509000

CHOPPER BODY ASSY

A-Frame W/Double Clevis & Jack

1шт.

17

09509100

FRAME

1шт.

18

20092051

CLEVIS

Double

1шт.

18

20092071

ADJUSTABLE CLEVIS

Single

1шт.

19

84533450

JACK

5000 lb

1шт.

20

22306020

PIN

Pigtail

2шт.

21

25800030

CYLINDER

Cyl. Stroke Control Kit

1шт.

22

25040160

4" Dia x 16"

1шт.

23

25600897

HOSE

1/2" Hyd. x 162-1/2" Lg.

2шт.

24

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

MNPT, JICM

2шт.

25

09502000

TUBE

Lift

1шт.

26

09503000

CLAMP

Lift Tube

2шт.

27

09504000

CLAMP

RH Lift Tube

1шт.

28

09505000

CLAMP

LH Lift Tube

1шт.

29

09523000

KIT

Wing Lift

1шт.

30

25600698

WIRE

3/8" NPT x 21"Long

2шт.

31

25600666

WIRE

3/8" NPT x 66" Long

2шт.

32

25600639

WIRE

3/8" NPT x 39" Long

2шт.

33

25030240

CYLINDER

3" Bore x 24" Stroke Hyd.

2шт.

34

09521010

KIT

Gauge Wheel Bundle, Includes - LH & RH Assy.

1шт.

35

09520000

WHEEL ASSY

RH Gauge

1шт.

35

09521000

WHEEL ASSY

LH Gauge

1шт.

36

09518000

SUPPORT

RH Gauge Wheel

1шт.

36

09519000

SUPPORT

LH Gauge Wheel

1шт.

37

09522000

ARM

Gauge Wheel

2шт.

38

09529000

ARM

Gauge Wheel Less Hub

2шт.

39

28170900

HUB ASSY.

Q-709

2шт.

40

10910501

WHEEL ASSY

9.5 x 15 Tire

2шт.

41

NSS

NOT SOLD SEPARAT

9.5 x 15 6-Ply Tire

2шт.

42

NSS

NOT SOLD SEPARAT

8 x 15 Wheel

2шт.

43

P0466017

MOUNTING PLATE

Rigid Shank Bundle

9шт.

43

09350085

9шт.

44

09254000

HITCH

Rear Assy.

1шт.

45

09510000

BAR

Front

1шт.

45

09511000

BAR

Front Coulter

1шт.

46

02453000

CHOPPER BODY ASSY

Rigid Coutler

15шт.

47

02455000

CHOPPER BODY ASSY

Spring Loaded Coutler

15шт.

48

09525000

KIT

Coulter Mtg. Bundle

10шт.

49

09525100

KIT

Coulter Mtg. Bundle

10шт.

50

09528000

CHOPPER BODY ASSY

S-Weight

1шт.

51

09528100

WEIGHT

1шт.

52

09531000

CHOPPER BODY ASSY

42" Wing Weight

2шт.

52

09530000

CHOPPER BODY ASSY

56" Wing Weight

2шт.

53

09531100

WEIGHT

42" Wing

2шт.

53

09530100

WEIGHT

56" Wing

2шт.

54

09509300

FRAME

Front Brace

1шт.

101

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

2шт.

102

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

103

NSS

NOT SOLD SEPARAT

5/8 NC Hex. Nut

8шт.

104

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

105

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

8шт.

106

NSS

NOT SOLD SEPARAT

1-1/4" Slotted Hex. Nut

1шт.

107

16008134

BOLT

1/2" x 3-1/4" NC Hex. Gd. 5

2шт.

108

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

4шт.

109

16312230

U-BOLT

BOLT "U" 3/4" X 4" X 5-5/8"

1шт.

110

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

NC

14шт.

111

NSS

NOT SOLD SEPARAT

3/4" x 5'' NC Hex. Bolt 11" Only

4шт.

112

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

NC

8шт.

113

16902027

SPECIAL PIN

1-1/4" x 6-1/2" NC Hex. Bolt

1шт.

114

NSS

NOT SOLD SEPARAT

3/16" x 2-1/2" Cotter Pin

1шт.

115

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

8шт.

116

NSS

NOT SOLD SEPARAT

1/8" Hairpin 11

8шт.

117

NSS

NOT SOLD SEPARAT

3/16" x 3" Hairpin

1шт.

118

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-3/4"

2шт.

119

14816180

HEADED PIN

1" x 2-1/4"

10шт.

120

14816395

CLEVIS

1" x 4-7/8" Pin

1шт.

121

14816905

PIN

1" x 11-1/4"

4шт.

122

09308000

ROD ASSY.

2" x 18-5/8" Pin

2шт.

123

NSS

NOT SOLD SEPARAT

3/4" Std. Washer

2шт.

124

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

14шт.

125

17632020

BUSHING

2" Machinery

4шт.

126

219-86

LUBE NIPPLE,1/8" NPTF

NPT Zerk

1шт.

127

217-1162

TEE,3/8"-18 Female

NPT Pipe

2шт.

128

15000371

ELBOW

3/8" NPT Street

4шт.

129

22530601

HOSE CLAMP

Double

2шт.

130

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

131

NSS

NOT SOLD SEPARAT

5/8 x 2" NC Hex. Bolt

1шт.

132

16312020

U-BOLT

BOLT "U" 3/4" x 4" x 8"

2шт.
