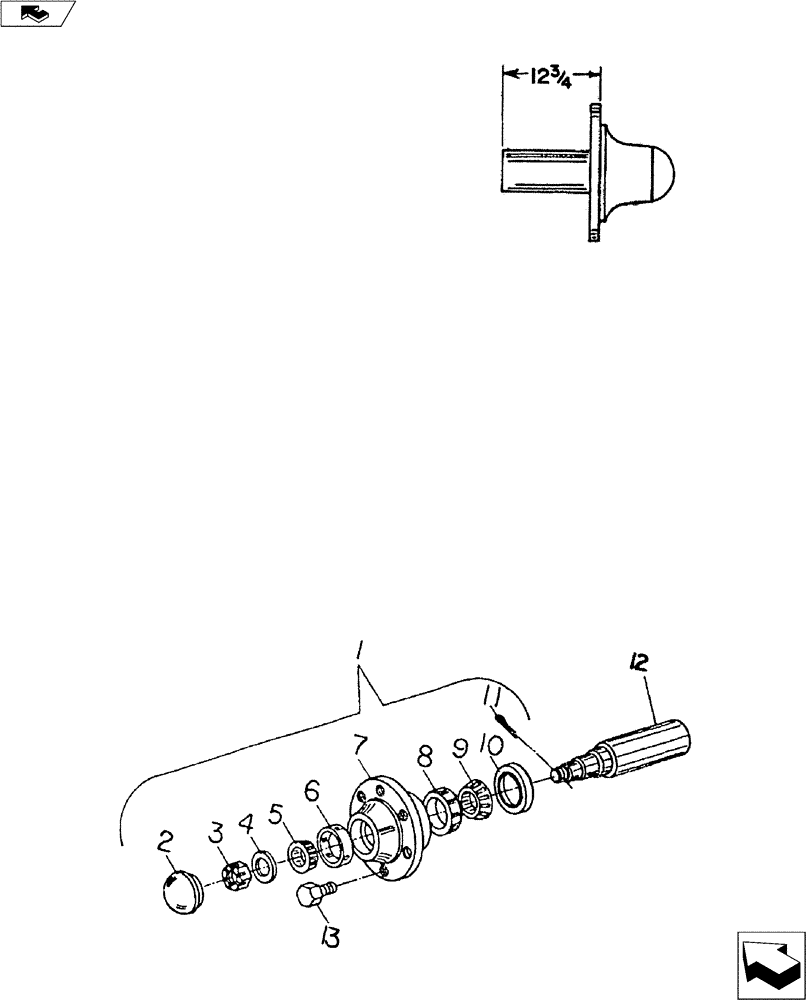

Запчасти Case IH S-SERIES (44.100.03) - Q-803 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28180300

HUB ASSY.

Q-803 6-Bolt

1шт.

2

28480300

CAP

Dust

1шт.

3

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Hex. Nut

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

5

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.375 Bore Timken 25877

1шт.

6

165964R1

BEARING CUP

2.875 Timken 25821

1шт.

7

NSS

NOT SOLD SEPARAT

6-Bolt Hub

1шт.

8

21883270

BEARING CUP

3.270 Timken 25520

1шт.

9

330426R91

1.800 Bore Timken 25590

1шт.

10

491715R91

OIL SEAL

2.00 ID x 3.625 OD CR 521430

1шт.

11

NSS

NOT SOLD SEPARAT

5/32" Cotter Pin x 1-1/2" Lg.

1шт.

12

NSS

NOT SOLD SEPARAT

Spindle

1шт.

13

16409053

SPECIAL BOLT

9/16" NF x 1-1/8" Lg. Lug

6шт.

14

28078303

HUB ASSY.

Spindle (Not Shown)

1шт.
