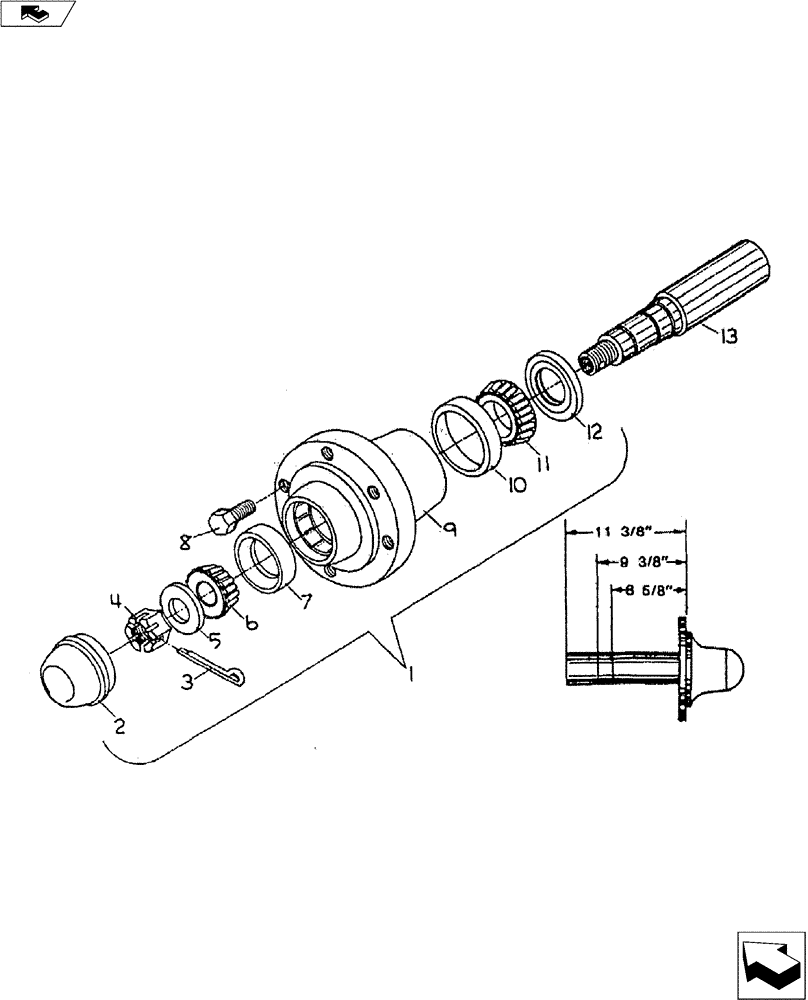

Запчасти Case IH S-SERIES (44.100.02) - Q-709 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28170900

HUB ASSY.

Q-709 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore Timken LM67048

1шт.

7

651817R1

BEARING CUP

2.33 OD Timken LM67010

1шт.

8

16408053

SPECIAL BOLT

1/2" NF x 1-15/32" Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2.56 OD Timken LM48510

1шт.

11

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1.38 Bore Timken LM48548

1шт.

12

T23709

SEAL

1.50 ID x 2.62 OD CR 15190

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 10-1/4"

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 11"

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 13"

1шт.

14

28070911

HUB

Spindle Assy. 8-5/8" (Not Shown)

1шт.

14

28070921

HUB

Spindle Assy. 9-3/8" (Not Shown)

1шт.

14

28070931

HUB ASSY.

Spindle 11-3/8" (Not Shown)

1шт.
