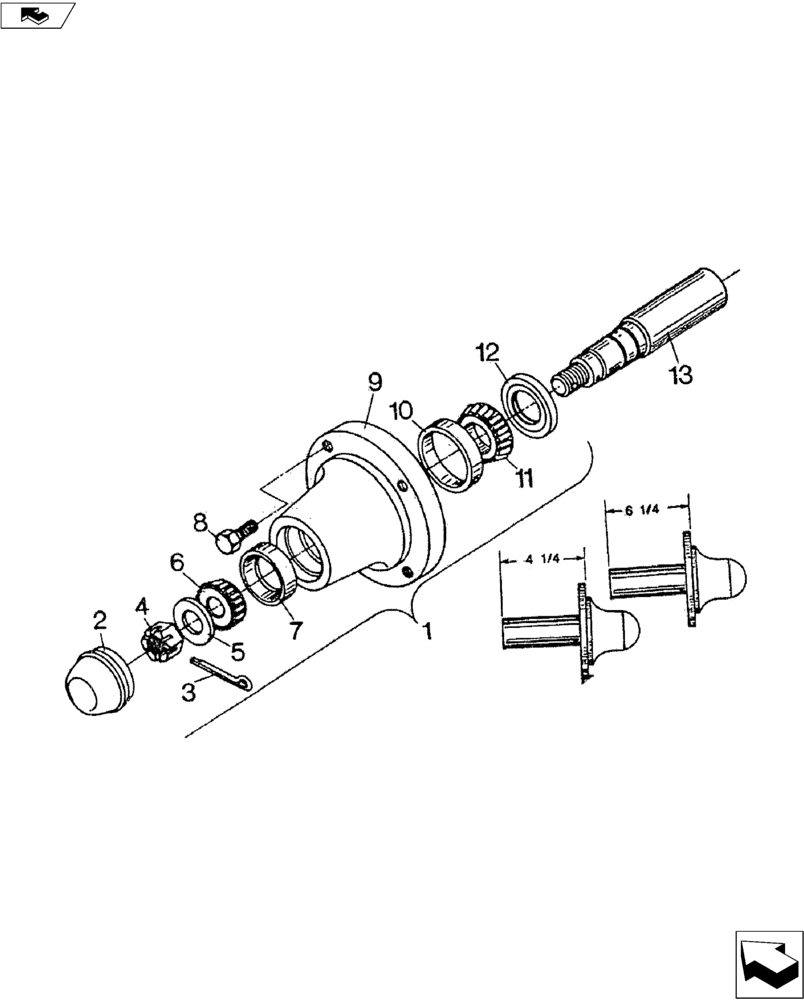

Запчасти Case IH S-SERIES (44.100.01) - Q-633 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

0.75 Bore Timken LM11949

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

1.78 OD Timken 2720

1шт.

8

16408052

SPECIAL BOLT

1/2" x 1-1/4" NF Wheel

4шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

651817R1

BEARING CUP

2.33 OD Timken LM67010

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore Timken LM67048

1шт.

13

126621C1

SEAL

1.50 ID x 2.33 OD CR 14975

1шт.

14

NSS

NOT SOLD SEPARAT

Spindle 6-1/4" (Not Shown)

1шт.

14

NSS

NOT SOLD SEPARAT

Spindle 4-1/4" (Not Shown)

1шт.

15

28063304

HUB ASSY.

Spindle 6-1/4" (Not Shown)

1шт.

15

28063311

HUB

Spindle Assy. 4-1/4" (Not Shown)

1шт.
