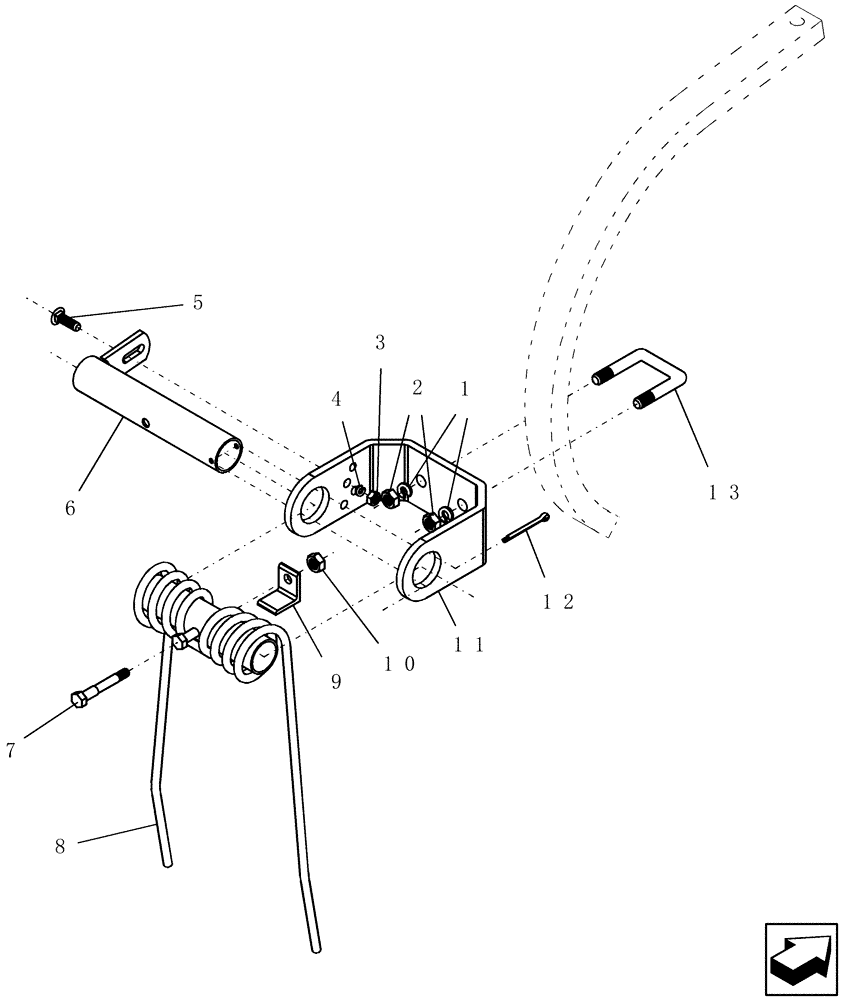

Запчасти Case IH PTX600 (4.070.1) - SHANK FURROW CLOSER (18) - MISCELLANEOUS

1

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

2

280431

NUT,1/2"-13, G5

2шт.

3

9628503

NUT,3/8"-16, G5

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

5

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

6

GD-895

TUBE,7.937" L

harrow tube

1шт.

7

8946

BOLT

shoulder 3/8"-16 x 2 1/2", G5

1шт.

8

87505458

TINE

harrow, 9 w x 16 long

1шт.

9

AP-902

STOP DEVICE

tine angle

1шт.

10

88902

NUT,3/8"-16

1шт.

11

GD-894

HOLDER

shank harrow

1шт.

12

87400

COTTER PIN,3/16" x 2"

1шт.

13

432595A1

U-BOLT

us 1/2"-13 2 1/8" w 2 1/2" d G2

1шт.
