Запчасти Case IH PTX600 (3.010.1) - SAFETY/TRANSPORT LIGHTING ELECTRICAL ASSEMBLY (BSN CBJ0014092) Electrical/Electronics

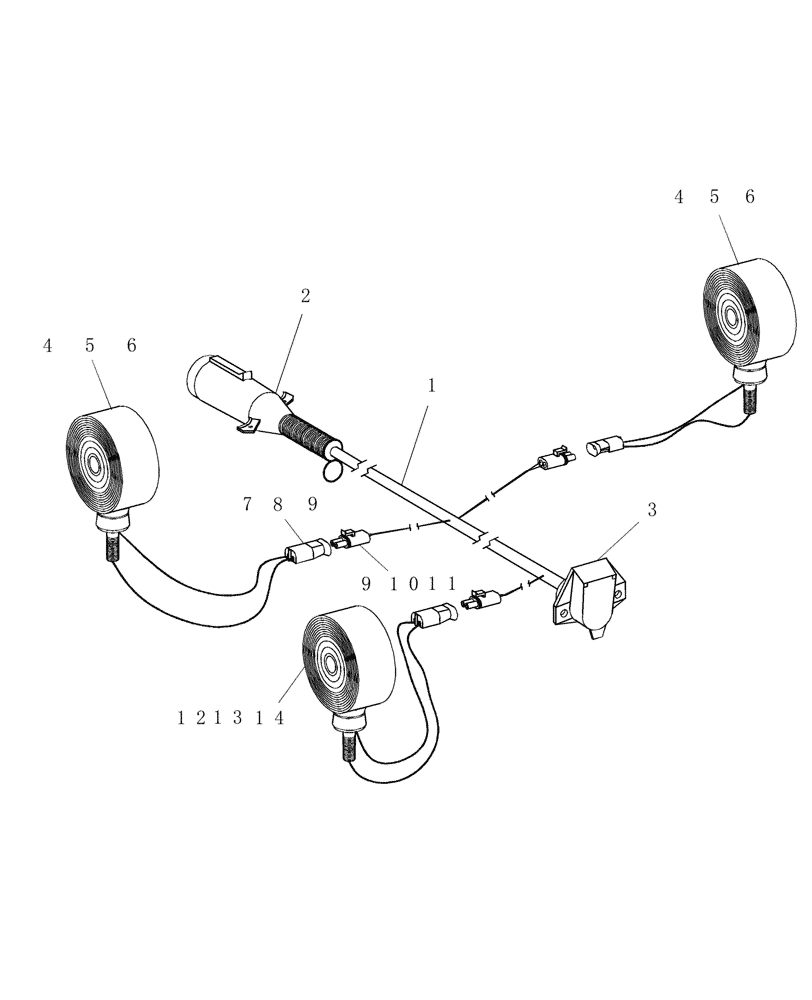

Схема запчастей Case IH PTX600 - (3.010.1) - SAFETY/TRANSPORT LIGHTING ELECTRICAL ASSEMBLY (BSN CBJ0014092) Electrical/Electronics
9
3
5
8
14
10
13
11
7
5
4
1
4
6
6
9
12
2

Артикул

Название

Примечание

Количество

1

14783

HARNESS

lighting, tillage

1шт.

Includes 412765A1, 5996, 481849C1, three 245482C1, six 225122C1 and six 412914A1

1шт.

2

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

Includes 481849C1

1шт.

2

481849C1

PROTECTIVE COVER

rubber boot

1шт.

3

412766A1

MULTIPOLE CONNECTOR

metal 7c receptacle

1шт.

4

432622A1

WARNING LIGHT

amber assembled

1шт.

Includes 432601A1 and 529068

1шт.

5

432601A1

LENS

amber acrylic

2шт.

6

84129422

BULB

Dual Contact

1шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

8

225119C1

TERMINAL

14-16awg

2шт.

9

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

2шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

11

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

2шт.

12

425058A1

STOP LIGHT

red tail assembled

1шт.

Includes 6815 and 9417867

1шт.

13

6815

LENS

red

1шт.

14

86537133

BULB,C6, #1157, 12.8V

1шт.

Выбрано товаров: 19
