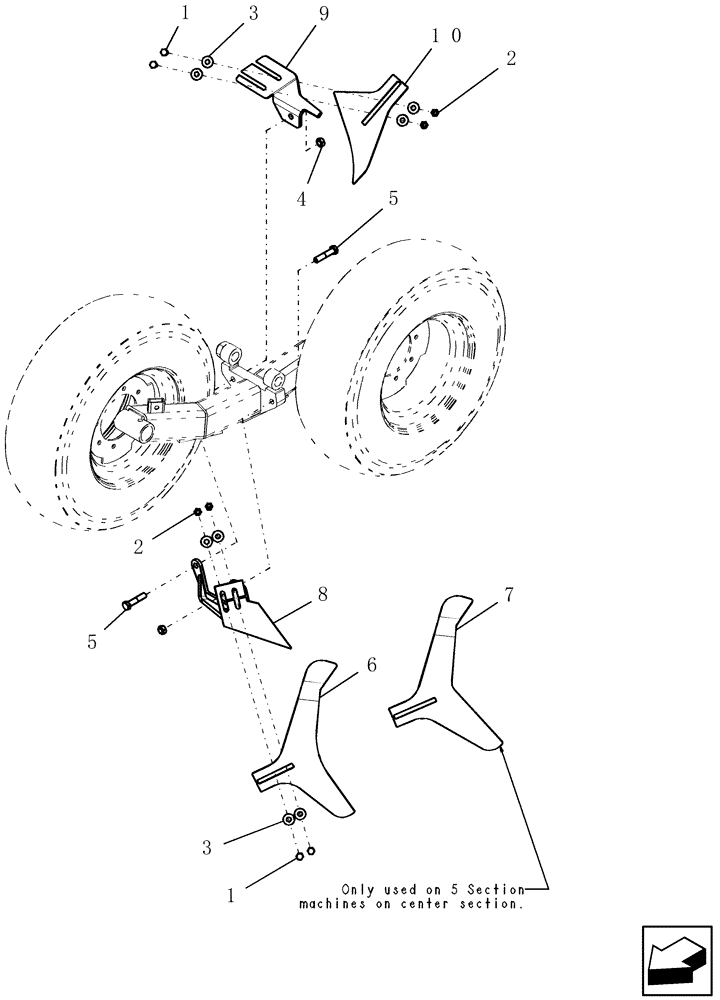

Запчасти Case IH PTX600 (4.010.1) - MUDSCRAPER OPTION (18) - MISCELLANEOUS

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

2

86992215

LOCK NUT,1/2"-13, GC

4шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

4

85700693

NUT,5/8" - 11, Gr C

2шт.

5

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

6

NW-604

SCRAPER BLADE

rear LH

1шт.

Shown

1шт.

6

NW-607

SCRAPER BLADE

rear RH

1шт.

Not Shown

1шт.

7

NW-618

SCRAPER BLADE

rear LH - special

1шт.

Shown

1шт.

7

NW-619

SCRAPER BLADE

rear RH - special

1шт.

Not Shown

1шт.

8

NW-535V2

SUPPORT

scraper rear LH

1шт.

Shown

1шт.

8

NW-537V2

SUPPORT

scraper rear RH

1шт.

Not Shown

1шт.

9

NW-536V2

SUPPORT

scraper front LH

1шт.

Shown

1шт.

9

NW-534V2

SUPPORT

scraper front RH

1шт.

Not Shown

1шт.

10

NW-539V3

SCRAPER

front tire

1шт.
