Запчасти Case IH PTX600 (1.180.3) - WING WALKING BEAM HUB AND ASSEMBLY (12) - FRAME

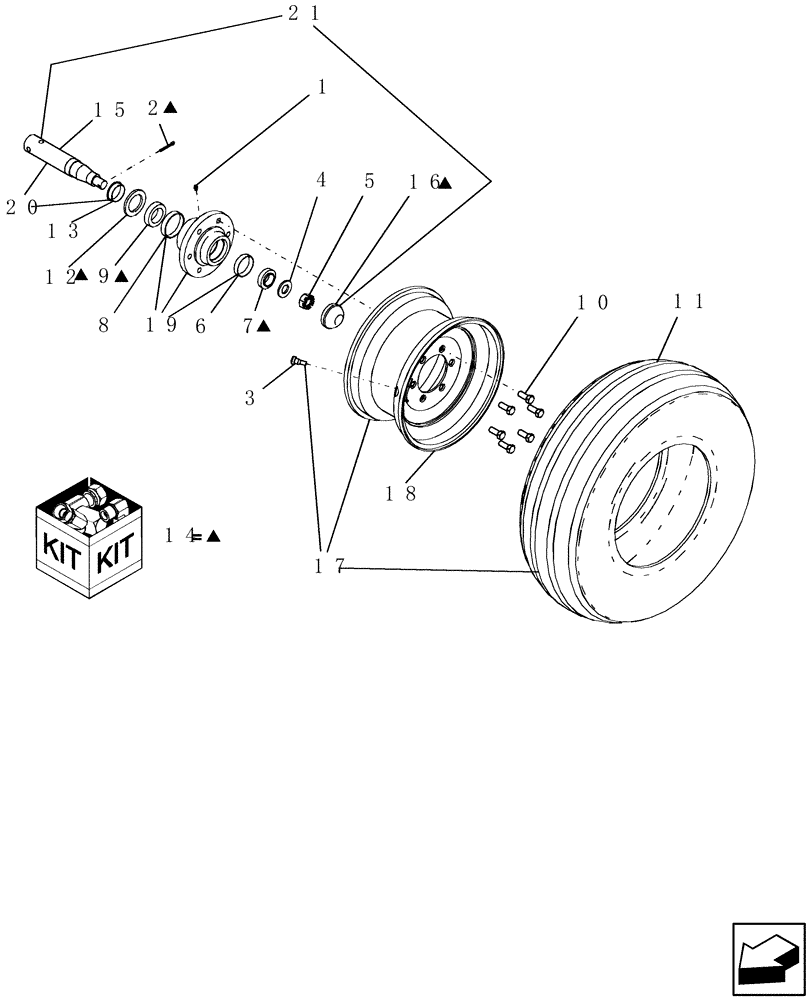

Схема запчастей Case IH PTX600 - (1.180.3) - WING WALKING BEAM HUB AND ASSEMBLY (12) - FRAME
7
9
11
12
21
20
14
13
15
6
4
18
3
5
2
10
8
16
17
19
1

Артикул

Название

Примечание

Количество

1

88775

LUBE NIPPLE,1/4"-28

1шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

3

196033

VALVE STEM

tr/415

1шт.

4

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

3

84203972

TIRE TUBE

15/9.5L-15SL/R15

1шт.

5

86020752

SLOTTED NUT

1"-14, G5

1шт.

6

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

8

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

9

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

10

G49036

WHEEL BOLT

wheel 9/16"-18 x 1 1/4", G5, WB12

6шт.

11

1980928C1

TYRE/TIRE

9.5l-15sl 8pr

1шт.

Purchase Locally

1шт.

Standard

1шт.

11

5937

TYRE/TIRE

9.5l x 15 fi - d load range

1шт.

Heavy Duty

1шт.

Purchase Locally

1шт.

12

3685

OIL SEAL

triple lip - h615 hub

1шт.

13

51200202

SLEEVE

wear, spindle S614/S811

1шт.

14

6615

WHEEL BEARING KIT

completion - H615

1шт.

Includes cotterpin, cones, dust cap and seal

1шт.

15

432603A1

SPINDLE

2" x 11 1/2"- S614 hub

1шт.

Includes 1628 and 25-1316

1шт.

16

51200086

HUB CAP

dc15 h614

1шт.

17

87504815

WHEEL ASSY

15X8 6 hole with 9.5L-15SL 8P +1 1/8" offset

1шт.

Includes 87504814, 87505456 and 84203972

1шт.

Standard

1шт.

17

87505471

WHEEL ASSY

15 x 8 6h with 9.5l-15fi d

1шт.

Heavy Duty

1шт.

Includes 87505456, 5937 and 196033

1шт.

18

87505456

RIM

15" x 8" - 6 hole

1шт.

19

87505492

HUB

H615-1 assembly with cups and bolts

1шт.

Includes hub, cups and wheel bolts

1шт.

20

CC-164

SPINDLE

2" x 11 1/2" with wear sleeve

1шт.

Includes 3686 and 432603A1

1шт.

21

NW-614A

HUB

and spindle assembly, H615

1шт.

Includes hub, spindle, dust cap. bearings, seals and wheel bolts

1шт.

Выбрано товаров: 37
