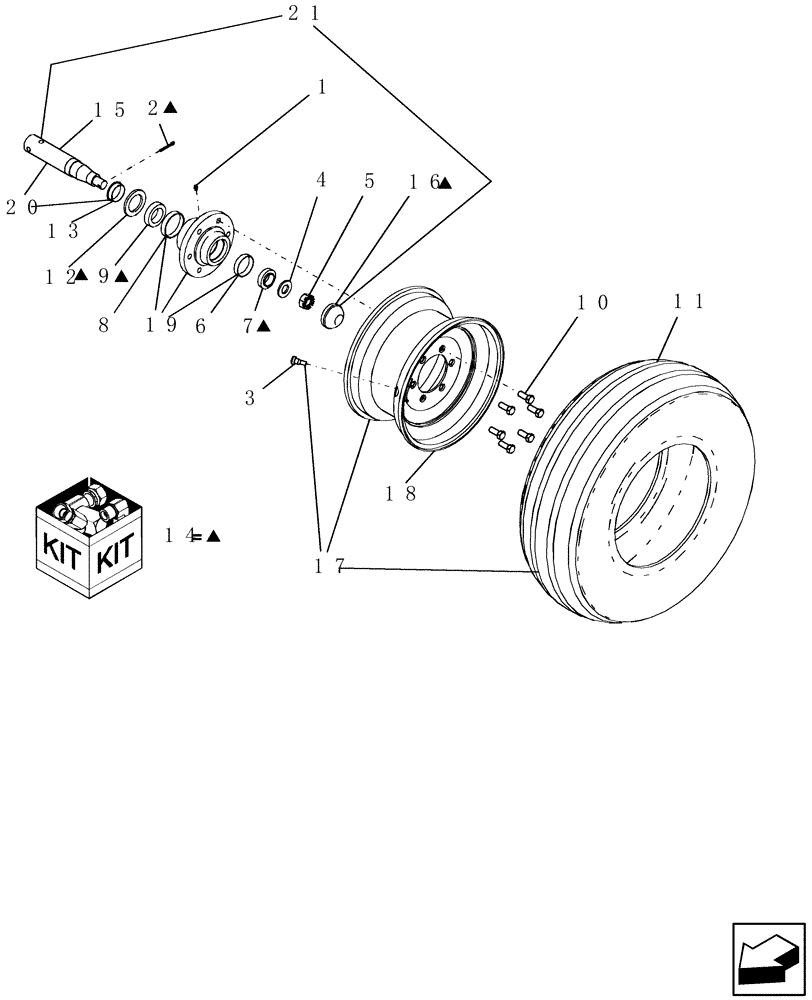

Запчасти Case IH PTX600 (1.170.3) - 3 SECTION CENTER WALKING BEAM HUB AND SPINDLE (12) - FRAME

1

88775

LUBE NIPPLE,1/4"-28

1шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

3

196033

VALVE STEM

tr/415

1шт.

25', 31' and 34' models

1шт.

3

22802

VALVE

stem tire tr/801 hp

1шт.

4

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

5

86020752

SLOTTED NUT

1"-14, G5

1шт.

6

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

1шт.

25', 31' and 34' models

1шт.

6

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

25', 31' and 34' models

1шт.

7

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

1шт.

37' and 40' models

1шт.

8

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

25', 31' and 34' models

1шт.

8

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

1шт.

37' and 40' models

1шт.

9

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

25', 31' and 34' models

1шт.

9

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

1шт.

37' and 40' models

1шт.

10

G49036

WHEEL BOLT

wheel 9/16"-18 x 1 1/4", G5, WB12

6шт.

11

3474

TYRE/TIRE

11l x 15 fi - d load range

1шт.

Purchase Locally

1шт.

25', 31' and 34' models

1шт.

11

400602A1

TYRE/TIRE

11l x 15 fi - f load range

1шт.

37' and 40' models

1шт.

Purchase Locally

1шт.

12

3685

OIL SEAL

triple lip - h615 hub

1шт.

25', 31' and 34' models

1шт.

12

51200154

OIL SEAL

hub #455260

1шт.

13

51200202

SLEEVE

wear, spindle S614/S811

1шт.

14

6615

WHEEL BEARING KIT

completion - H615

1шт.

Includes cotterpin, cones, dust cap and seal

1шт.

25', 31' and 34' models

1шт.

14

7811

WHEEL BEARING KIT

completion - H811

1шт.

Includes 300426R91, 560953R91, 419963A1, 3686, 4260 and 432-1224

1шт.

37' and 40' models

1шт.

15

432603A1

SPINDLE

2" x 11 1/2"- S614 hub

1шт.

Includes 1628 and 25-1316

1шт.

25', 31' and 34' models

1шт.

15

8605

SPINDLE

S811 2" x 12 5/16"

1шт.

37' and 40' models

1шт.

16

51200086

HUB CAP

dc15 h614

1шт.

25', 31' and 34' models

1шт.

16

87505192

HUB CAP

dc17

1шт.

17

NSS

NOT SOLD SEPARAT

Wheel, tire and valve assemblies are not sold separately

1шт.

18

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

1шт.

25', 31' and 34' models

1шт.

18

87505453

RIM

15" x 8" 8 hole heavy - 1 1/2" offset

1шт.

37' and 40' models

1шт.

19

87505492

HUB

H615-1 assembly with cups and bolts

1шт.

Includes hub, cups and wheel bolts

1шт.

25', 31' and 34' models

1шт.

19

87505495

HUB

H811-3 assembly with cups and zerk hole

1шт.

Includes 1742, 1744 and eight G49036

1шт.

37' and 40' models

1шт.

20

CC-164

SPINDLE

2" x 11 1/2" with wear sleeve

1шт.

Includes 3686 and 432603A1

1шт.

25', 31' and 34' models

1шт.

20

CC-165

SPINDLE

2" x 12 5/16" with wear sleeve

1шт.

Includes 3686 and 8605

1шт.

37' and 40' models

1шт.

21

NW-614A

HUB

and spindle assembly, H615

1шт.

25', 31' and 34' models

1шт.

Includes hub, spindle, dust cap. bearings, seals and wheel bolts

1шт.

21

NW-810A

HUB

& spindle assembly H811-12.31LG

1шт.

37' and 40' models

1шт.

Includes hub, spindle, dust cap. bearings, seals and wheel bolts

1шт.
