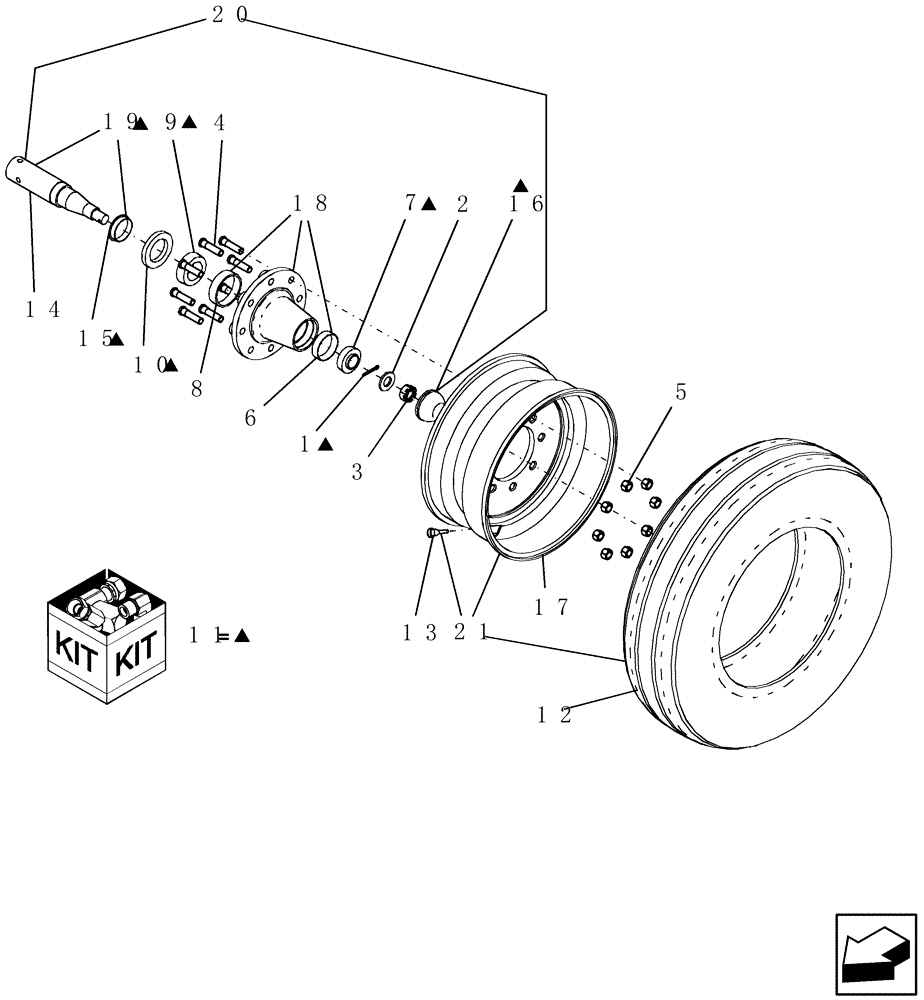

Запчасти Case IH PTX600 (1.160.3) - 5 SECTION CENTER SECTION WALKING BEAM HUB ASSEMBLY (12) - FRAME

1

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

2

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

3

86020752

SLOTTED NUT

1"-14, G5

1шт.

4

2739

STUD

5/8"-18 x 2 1/2" wb46

8шт.

5

554480R1

WHEEL NUT

hub wheel 5/8"-18, GB

8шт.

6

86977427

BEARING CUP,76.22mm OD x 19.05mm W

#2720

1шт.

7

86576988

BEARING ASSY,31.75mm ID x 62mm OD x 20.64mm W

tm#2790

1шт.

8

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

1шт.

9

174127

TAPERED BEARING,2" ID x 1.192"

tm#3780

1шт.

10

4622

OIL SEAL

SE17

1шт.

11

21312

WHEEL BEARING KIT

hub completion - H812-16

1шт.

Includes 432-1224, 23432, ST773A, ST783A, 4622 and 22814

1шт.

Not Shown

1шт.

12

22799

TYRE/TIRE

235/75R17.5 H load range

1шт.

Purchase Locally

1шт.

13

87421679

VALVE STEM

tire vs-20-1

1шт.

14

432581A1

SPINDLE

S812 - 2 1/2" x 12 3/4"

1шт.

Includes 1628 and 25-1316

1шт.

15

22814

SLEEVE

wear, S812 spindle

1шт.

Not Shown

1шт.

16

87505192

HUB CAP

dc17

1шт.

17

87505454

RIM

17 1/2" x 6 3/4" x 8 hole- 1 1/2" offset

1шт.

18

87506296

HUB

H812-16 w/cups & studs

1шт.

Includes cups, studs and nuts

1шт.

19

CC-171

SPINDLE

2 1/2" x 12 3/4" with wear sleeve

1шт.

Includes 432581A1 and 22814

1шт.

20

CC-171A

HUB

& spindle assembly, H812 - 12 11/16"

1шт.

Includes CC-171, 22888\C, 432581A1, 22814, ST773A, ST783A, 4622, 432-1224, and 23432

1шт.

21

NSS

NOT SOLD SEPARAT

Wheel, tire and valve assemblies are not sold separately

1шт.
