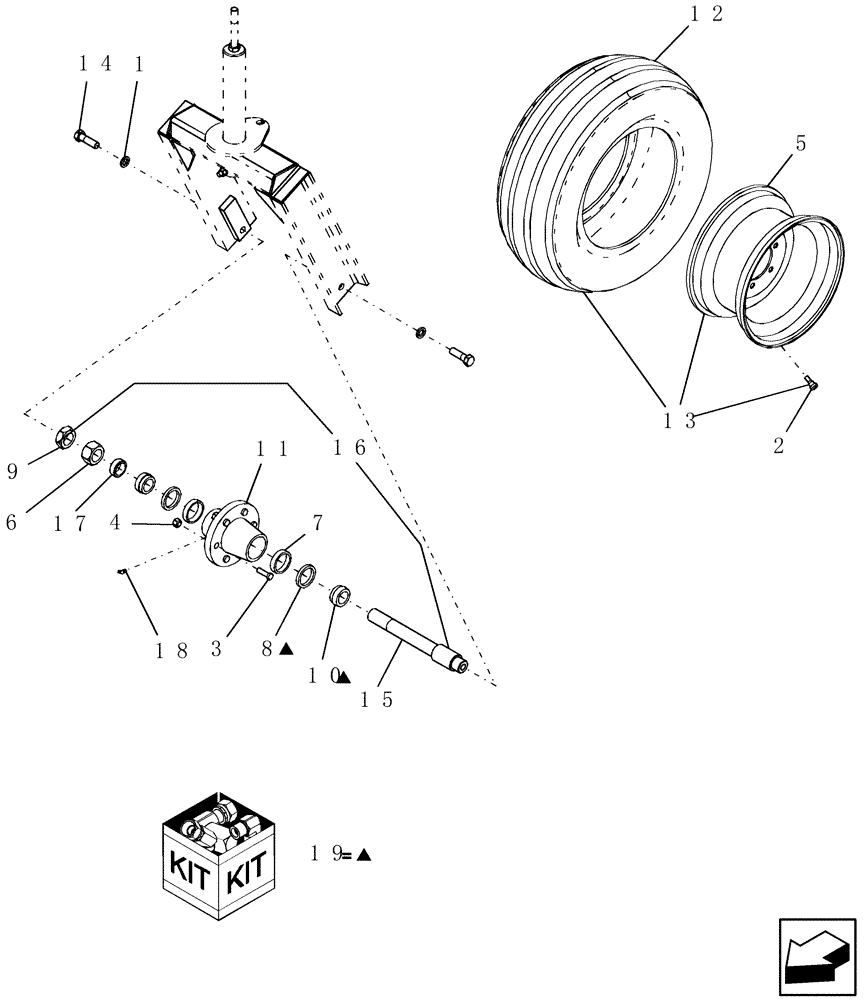

Запчасти Case IH PTX600 (1.150.3) - CASTER HUB AND SPINDLE ASSEMBLY (12) - FRAME

1

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

2

196033

VALVE STEM

tr/415

1шт.

2

84203972

TIRE TUBE

15/9.5L-15SL/R15

1шт.

3

1662

BOLT

stud 1/2"-20 G5 wb16

6шт.

4

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

5

87505456

RIM

15" x 8" - 6 hole

1шт.

6

425-1024

NUT,1 1/2"-6, G5

1шт.

7

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

8

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

SE24

2шт.

9

8337

JAM NUT

jam 1 1/2"-6

1шт.

10

72012

BEARING CONE

#LM13686

2шт.

11

87505491

HUB

H617-1 assembly with cups and studs and nuts

1шт.

12

5937

TYRE/TIRE

9.5l x 15 fi - d load range

1шт.

Purchase Locally

1шт.

12

1980928C1

TYRE/TIRE

9.5l-15sl 8pr

1шт.

Purchase Locally

1шт.

13

87505471

WHEEL ASSY

15 x 8 6h with 9.5l-15fi d

1шт.

Shown

1шт.

Includes 87505456, 5937 and 196033

1шт.

Center Section for heavy duty option

1шт.

Center Section for standard option

1шт.

Wing Section for heavy duty option

1шт.

13

87504815

WHEEL ASSY

15X8 6 hole with 9.5L-15SL 8P +1 1/8" offset

1шт.

Includes 87504814, 87505456 and 84203972

1шт.

Not Shown

1шт.

Wing Section for standard option

1шт.

14

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

15

GD-161

SPINDLE

caster wheel

1шт.

16

GD-161A

HUB

and spindle assembly H617-14.44" long, thru hub

2шт.

Includes 4783\C, 6617, GD-161 and GD-162

1шт.

17

GD-162

SPACER

tube wheel spindle

2шт.

18

88775

LUBE NIPPLE,1/4"-28

1шт.

19

6617

WHEEL BEARING KIT

completion - h617

1шт.
