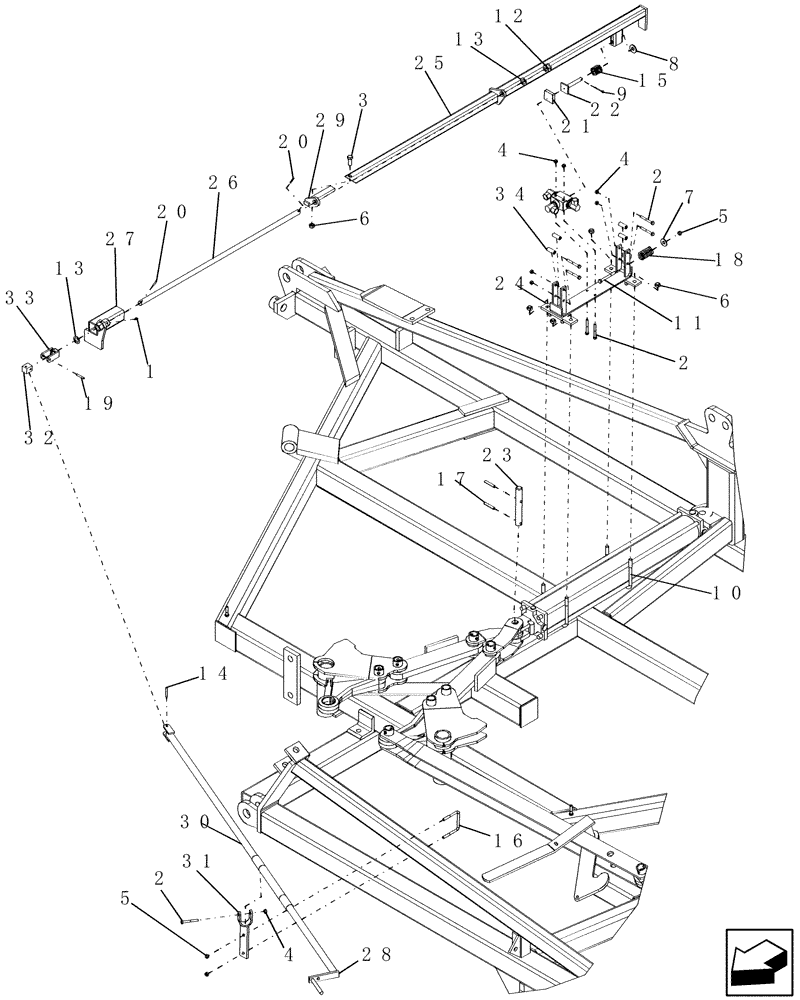

Запчасти Case IH PTX600 (1.121.1) - RAM MOUNT DEPTH CONTROL (12) - FRAME

1

88775

LUBE NIPPLE,1/4"-28

1шт.

2

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

7шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

4

281010

LOCK NUT,7/8"-14, GC

7шт.

5

88902

NUT,3/8"-16

3шт.

6

86992215

LOCK NUT,1/2"-13, GC

5шт.

7

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

9

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

10

2644

U-BOLT

us 1/2"-13 4 5/8" wide x 5 1/2" deep

2шт.

11

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

1шт.

12

425-1212

SLOTTED NUT,3/4"-10, G5

1шт.

13

4285

WASHER

3/4" id 18ga

2шт.

14

86624087

PIN,1/4" x 1 3/4", Coiled

2шт.

15

87506260

COMPRESSION SPRING

5/32" wr 1 5/16" od 1 1/2" long

1шт.

16

7783

U-BOLT

us 3/8"-16 x 3 1/16" wide x 3 1/4" deep, G5

1шт.

17

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

2шт.

18

87505469

SPRING

compression .192'' Wire x 1.292'' OD x 2.875'' long

1шт.

19

438-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1шт.

20

82895491

LOCK PIN,4.76mm OD x 25.4mm L, Slotted

2шт.

21

CA-193

BUMPER

square poly

1шт.

22

432548A1

PLUNGER

depth stop

1шт.

23

NW-712V2

PIN,25.4mm OD x 177.8mm L

1" x 7"

1шт.

24

432547A1

SADDLE

cylinder 4"

1шт.

25

432541A1

ARM

depth stop

1шт.

26

NW-904

ADJUSTER

ram mount depth stop

1шт.

27

432542A1

STOP

depth striker

1шт.

28

432549A1

CRANK

depth adjuster

1шт.

Includes NW-908

1шт.

29

432546A1

SUPPORT

end pivot

1шт.

30

NW-908

PROTECTOR

crank

1шт.

31

NW-909

STOP

crank rest

1шт.

32

432543A1

BLOCK

universal

1шт.

33

432545A1

CLEVIS

universal

1шт.

34

432544A1

ROLLER

depth stop

4шт.
