Запчасти Case IH PTX600 (1.110.1) - DEPTH CRANK ASSEMBLY (CENTER SECTION) ASSEMBLY (25 FT TO 44 FT MODELS) (12) - FRAME

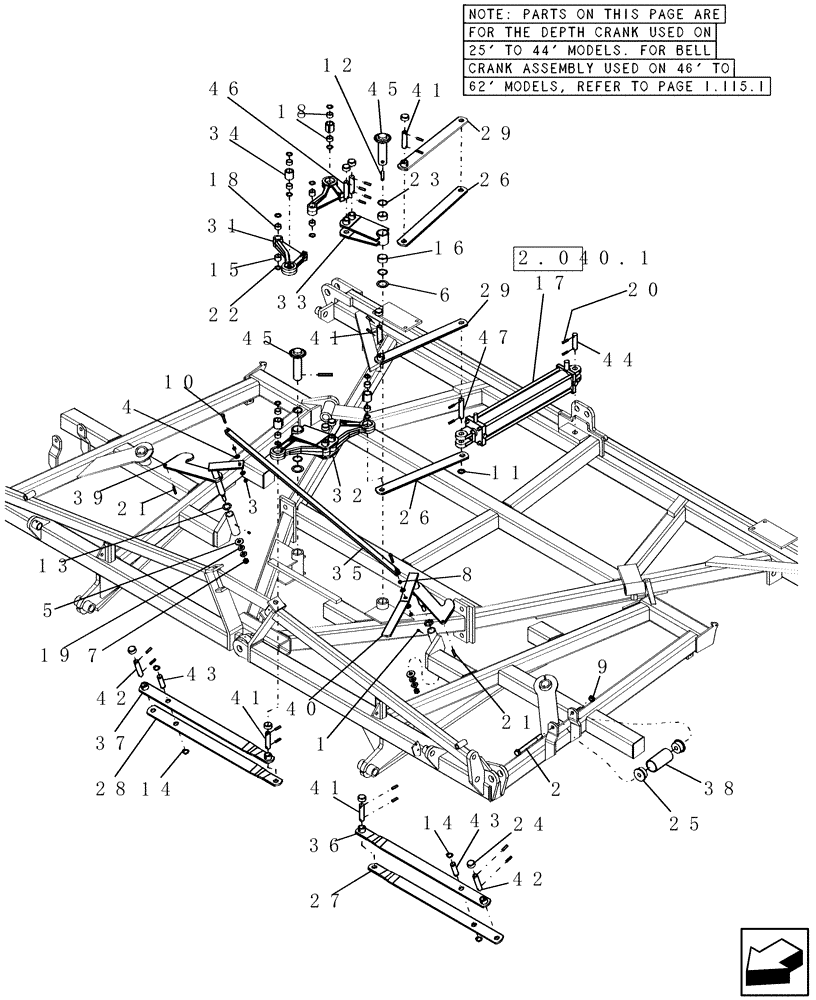

Схема запчастей Case IH PTX600 - (1.110.1) - DEPTH CRANK ASSEMBLY (CENTER SECTION) ASSEMBLY (25 FT TO 44 FT MODELS) (12) - FRAME
17
10
43
32
40
15
13
41
26
23
38
14
24
21
34
43
14
45
46
2.040.1
45
3
27
36
5
47
11
20
31
12
2
41
6
42
4
28
42
16
22
41
39
7
18
35
9
37
18
19
44
41
29
26
25
29
21
33
8
1

Артикул

Название

Примечание

Количество

1

88775

LUBE NIPPLE,1/4"-28

2шт.

2

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

1шт.

3

88902

NUT,3/8"-16

2шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

5

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

6

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

2шт.

7

85700693

NUT,5/8" - 11, Gr C

2шт.

8

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

9

280375

NUT,3/4"-10, GC

1шт.

10

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

11

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

12

4770

ROLL PIN

1/2" x 3"

2шт.

13

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

2шт.

14

87019495

SNAP RING,#98, Ext

4шт.

15

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

4шт.

16

6637

BUSHING

composite 2" x 1 3/4" x 1"

2шт.

17

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline

1шт.

Refer to 4 x 24 Cylinder page for details

1шт.

17

9652R

REMAN-HYD CYLINDER

PTX600 PRECISION TILLAGE BSN Y9S003001, 25 FT TO 44 FT MODELS, 4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline (12/01-7/08)

1шт.

17

9652C

CORE-HYD CYLINDER

Return Number

1шт.

18

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

12шт.

19

432609A1

SPRING WASHER

5/8" id x 1 3/8" od x 5/64" thick

4шт.

20

425291A1

ROLL PIN

3/8" x 1 1/2" spiral

24шт.

21

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

2шт.

22

121189

OIL SEAL

1 1/4" od x 1/8" thick

16шт.

23

8059

SEAL,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2" od x 1/8" thick

4шт.

24

8060

CAP

vinyl 1 1/2" x 3/4"

10шт.

25

CA-147

TUBE

flex, 25/32" id x 2 27/64" - flanged

2шт.

26

NW-305

LINK

depth

2шт.

27

NW-306

LINK

depth, for 13' center section, LH

1шт.

Shown

1шт.

27

NW-406

LINK

depth for 16' center section, LH

1шт.

Not Shown

1шт.

28

NW-307

LINK

depth, for 13' center section, RH

1шт.

Shown

1шт.

28

NW-404

LINK

depth for 16' center section, RH

1шт.

Not Shown

1шт.

29

NW-317

LINK

depth c/w pin lock

2шт.

31

NW-332

ROCKER

depth crank with bushings

2шт.

Includes 6635 and 7995

1шт.

32

NW-333A

CRANK

assembly, depth/rocker

1шт.

Includes four 425291A1, four 8058, two NW-332 and two NW-467

1шт.

33

NW-333

CRANK

depth with bushings

1шт.

Includes two 6637

1шт.

34

NW-334

ARM

weeble with bushing

4шт.

Includes two 7995

1шт.

35

432535A1

LINK

depth lock actuator 13'

1шт.

Shown

1шт.

35

432550A1

LINK

depth lock actuator 16'

1шт.

Not Shown

1шт.

36

NW-346

LINK

depth for 13' center section, LH c/w pin lock

1шт.

Shown

1шт.

36

NW-412

LINK

depth for 16' center section, LH c/w pin lock

1шт.

Not Shown

1шт.

37

NW-347

LINK

depth for 13' center section, RH c/w pin lock

1шт.

Shown

1шт.

37

NW-413

LINK

depth for 16' center section, RH c/w pin lock

1шт.

Not Shown

1шт.

38

NW-417

ROLLER

hinge line lift chain

1шт.

39

NW-419V2

ROCKER

depth lock

1шт.

40

NW-420V2

LEVER

depth lock

1шт.

41

NW-451

PIN

1" x 4 1/16"

1шт.

42

NW-452

PIN

1" x 4 9/16"

1шт.

43

NW-454

PIN

1" x 3", Years: -30-JUN-05

1шт.

43

6573

PIN

1" x 3" Usable length, snap ring groove, Start Year: 01-JUL-05

1шт.

44

NW-463

PIN

1" x 3 7/8"

1шт.

45

NW-465

PIN

1 3/4" x 6 5/8"

1шт.

46

NW-467

PIN

1" x 4 1/4"

1шт.

47

NW-712V2

PIN,25.4mm OD x 177.8mm L

1" x 7"

1шт.

Выбрано товаров: 69
