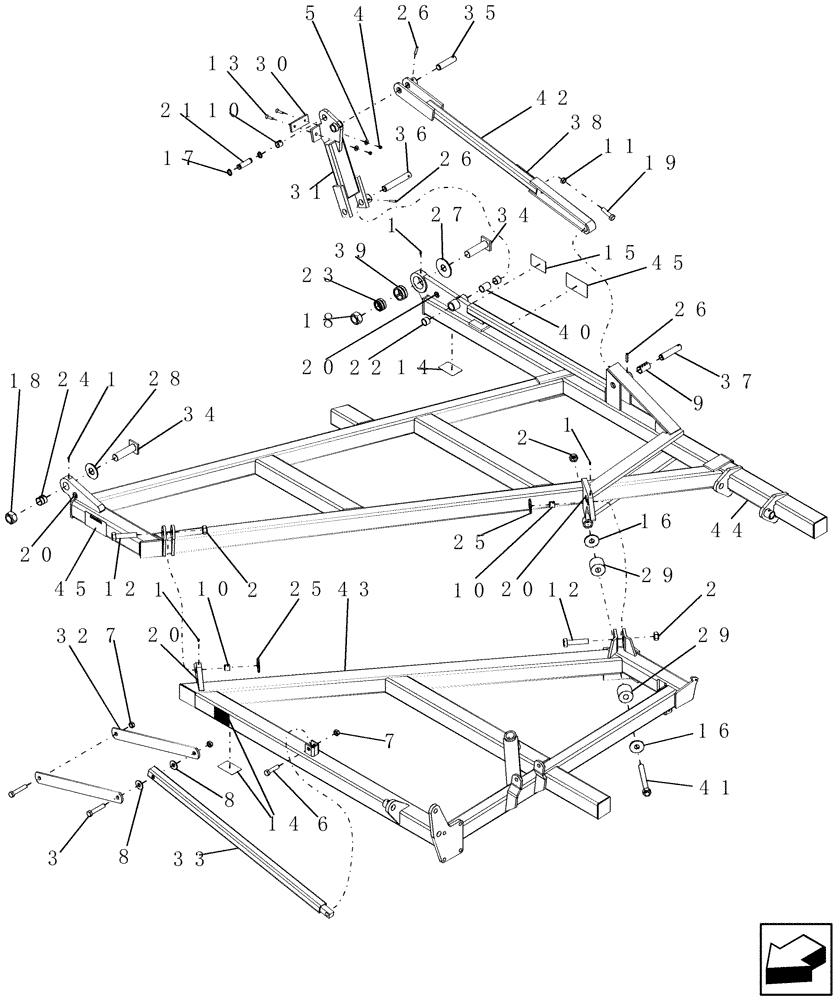

Запчасти Case IH PTX600 (1.070.1) - 9 FT THREE SECTION OUTER WING ASSEMBLY (12) - FRAME

1

88775

LUBE NIPPLE,1/4"-28

4шт.

2

280286

NUT,1"-8, GB

3шт.

3

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

4

88902

NUT,3/8"-16

2шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

6

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

7

280375

NUT,3/4"-10, GC

3шт.

8

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

9

3498

BUSHING

tension 1 1/2" x 1 1/4" x 2 1/2" long

1шт.

10

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

11

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

12

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

2шт.

13

5884

SCREW

cap 3/8"-16 x 1 1/2" blk fh

2шт.

14

432589A1

DECAL

reflector amber 2.9" x 4.3", Serial Range: -CBJ0014092

3шт.

14

22903

DECAL

retroreflective amber 2" x 9", Start Serial: CBJ0014093

3шт.

15

412907A1

DECAL

reflector red 2.9" x 4.3", Serial Range: -CBJ0014092

1шт.

16

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

2шт.

17

87019495

SNAP RING,#98, Ext

2шт.

18

87323803

LOCK NUT

1 1/2"-12, GC

2шт.

19

6452

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5, Full Thd

1шт.

20

6566

DECAL

grease 50 hours

4шт.

21

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

22

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

23

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

24

7825

GROOVED BUSHING

tension 1 3/4" x 1 1/2" x 1 1/2" long

1шт.

25

7860

WASHER

1 1/16" id 3 3/16"

2шт.

26

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

3шт.

27

432583A1

WASHER

1.52" id x 4.25" od x .188" thick

1шт.

28

432584A1

WASHER

1.52" id x 3.5" od x .188" thick

1шт.

29

CA-136

TUBE

poly 2 3/4" od x 1 1/4" id x 2 1/2" long

2шт.

30

ND-485

BRAKE PAD

caster pivot

1шт.

31

NW-372

LEVER

lift 114º for 13' center section

1шт.

32

NW-380

LINK

rest, inner

2шт.

33

NW-384

LINK

rest for 9' & 6' wing, 114º

1шт.

34

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

2шт.

35

NW-473

PIN

1 1/4" x 4 3/4"

1шт.

36

NW-476

PIN

1 1/4" x 7 1/2"

1шт.

37

NW-477

PIN

1 1/4" x 5 1/2"

1шт.

38

NW-500.06

DECAL

wing lift adjustment

1шт.

39

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

40

NW-507

SPACER

plastic 1 1/2" od x 1 15/16" long

1шт.

41

NW-579

BOLT

1"-8 x 9 1/8"

1шт.

42

NW-674

LIFT LINK

55"

1шт.

Includes NW-500.06

1шт.

42

NW-731

LINK

lift extended loop 53 7/8"

1шт.

43

432465A1

FRAME

9' front wing LH

1шт.

Includes 64601C1 and 6566

1шт.

43

432464A1

FRAME

9' front wing RH

1шт.

Includes 64601C1 and 6566

1шт.

44

432468A1

FRAME

9' 114º rear wing LH

1шт.

Includes 7809, NW-505, 64601C1, 7825, two 6636, NW-507, two TC-500.08, two 22903, and three 6566

1шт.

44

432467A1

FRAME

9' 114º rear wing RH

1шт.

Includes 7809, NW-505, 64601C1, 7825, two 6636, NW-507, two TC-500.08, two 22903, and three 6566

1шт.

45

TC-500.08

DECAL

raised wings

1шт.
