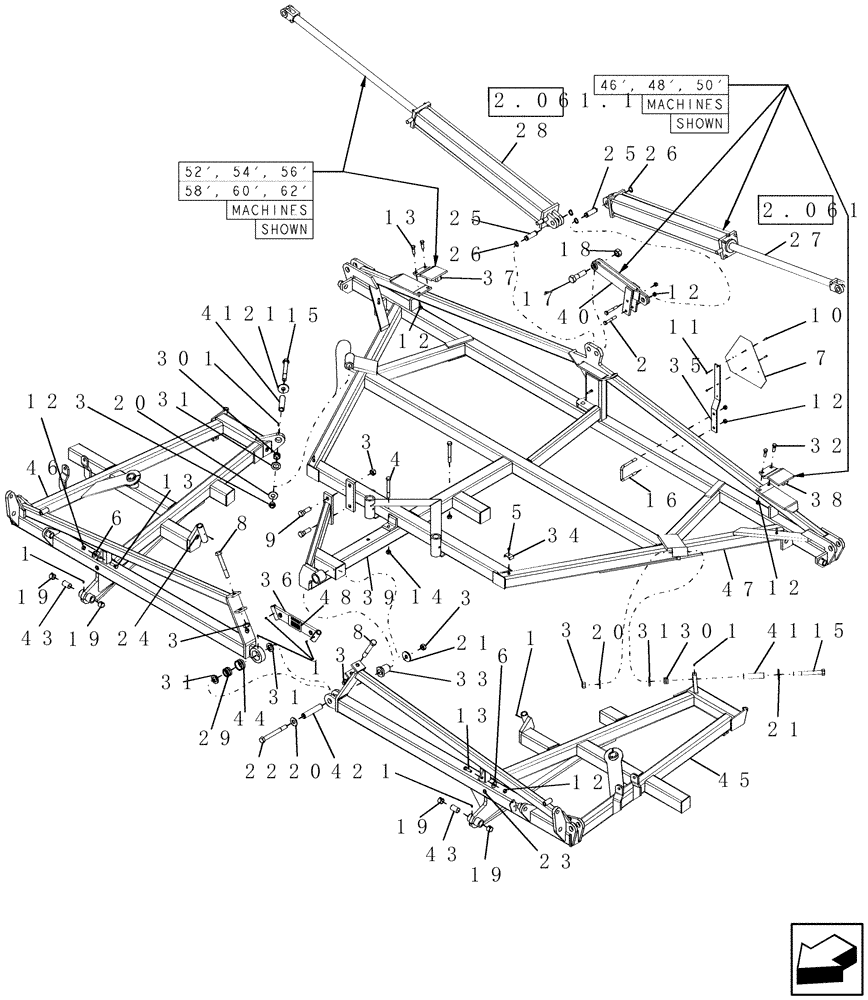

Запчасти Case IH PTX600 (1.030.1) - 16 FT CENTER ASSEMBLY (12) - FRAME

1

88775

LUBE NIPPLE,1/4"-28

9шт.

2

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

3

280286

NUT,1"-8, GB

7шт.

4

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

5

88902

NUT,3/8"-16

1шт.

6

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

7

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

8

9602223

BOLT,Hex, 1" - 8 x 7", Gr 5

2шт.

9

84128

BOLT,Hex, 1" x 3", Gr 5

2шт.

10

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

280129

NUT,1/4"-20

2шт.

12

85700693

NUT,5/8" - 11, Gr C

10шт.

13

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

14

280375

NUT,3/4"-10, GC

2шт.

15

18682

BOLT,Hex, 1" - 8 x 8", Gr 5

2шт.

16

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

17

413-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 5

1 1/4"-7 x 4 1/2", G5

1шт.

18

86609684

NUT,1 1/4"-7, GB

1шт.

19

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

4шт.

20

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

3шт.

21

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

3шт.

22

84015

BOLT,Hex, 1" - 8 x 8 1/2", Gr 5

1шт.

23

6566

DECAL

grease 50 hours

7шт.

24

6567

DECAL

grease 200 hours

2шт.

25

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

2шт.

Monarch Cylinders - clevis end

1шт.

25

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

2шт.

Monarch Cylinders - rod end

1шт.

26

86625148

SNAP RING,#125, Ext

4шт.

27

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

1шт.

40', 42' and 44' models

1шт.

Refer to 5" Hydraulic Cylinder - Monarch page for details

1шт.

Not Shown

1шт.

27

87437294

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1016mm Stroke

5" x 40" mon 3000 psi without pins

1шт.

40', 42' and 44' models

1шт.

Refer to 5" Hydraulic Cylinder - Monarch page for details

1шт.

Not Shown

1шт.

27

87437294R

REMAN-HYD CYLINDER

PTX600 PRECISION TILLAGE BSN Y9S003001, 5" x 40" mon 3000 psi without pins, 16 FT CENTER ASSEMBLY, 40', 42' and 44' models (12/01-7/08)

1шт.

27

87437294C

CORE-HYD CYLINDER

Return Number

1шт.

28

87444840

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1219.2mm Stroke

5" x 48" Monarch, 3000 psi, without pins

1шт.

52', 54', 56', 58', 60' and 62' models

1шт.

Includes 8973, 8974 and four 6570

1шт.

Refer to 5" Hydraulic Cylinder - Monarch page for details

1шт.

Shown

1шт.

28

87444840

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1219.2mm Stroke

5" x 48" Monarch, 3000 psi, without pins

1шт.

52', 54', 56', 58', 60' and 62' models

1шт.

Refer to 5" Hydraulic Cylinder - Monarch page for details

1шт.

Shown

1шт.

29

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

30

7975

BUSHING

tension 1 3/4" x 1 1/2" x 1" long

2шт.

31

8013

WASHER

1 1/2" id 2 1/2" 1/4"

4шт.

32

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

2шт.

33

CA-131

PLASTIC-RUBBER TUBE

flex, 1 35/64" id x 2 3/16" - flanged

1шт.

34

CC-105

HOSE CLAMP

for 2 hoses

1шт.

35

ND-575

BRACKET

S.M.V sign

1шт.

36

NW-304

LINK

king post

1шт.

Includes two 1298, two 6566, and TC-500.10

1шт.

37

NW-387

ROLLER

rest for 16' center section, 12' wing, 95º

1шт.

52', 54', 56', 58', 60' and 62' models

1шт.

38

NW-388

ROLLER

rest for 16' center section, 9' wing, 95º

1шт.

46', 48' and 50' models

1шт.

39

432477A1

FRAME

16' center pivot junction

1шт.

40

NW-407

BRACKET

mount, cylinder, For 16' center section, 114º

1шт.

40', 42' and 44' models

1шт.

Not Shown

1шт.

40

NW-408

BRACKET

mount, cylinder, For 16' center section to 9' wing, 95º

1шт.

46', 48' and 50' models

1шт.

Shown

1шт.

41

NW-461

SLEEVE

1" id x 1 1/2" od x 5 5/8" long

1шт.

42

NW-462

SLEEVE

1" id x 1 1/2" od x 6 7/8" long

1шт.

43

NW-501V2

SPACER

steel 1 7/16" od x 2 1/4" long

1шт.

44

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

45

432474A1

FRAME

16' center LH

1шт.

Includes two 432569A1, two 6566, 6567, 7975, and NW-501V2

1шт.

46

432473A1

FRAME

16' center RH

1шт.

Includes two 432569A1, three 6566, 6567, 7809, 7975, NW-501V2, and NW-505

1шт.

47

432472A1

FRAME

16' center without fitting

1шт.

48

TC-500.10

CAUTION DECAL

proceed cautiously

1шт.
