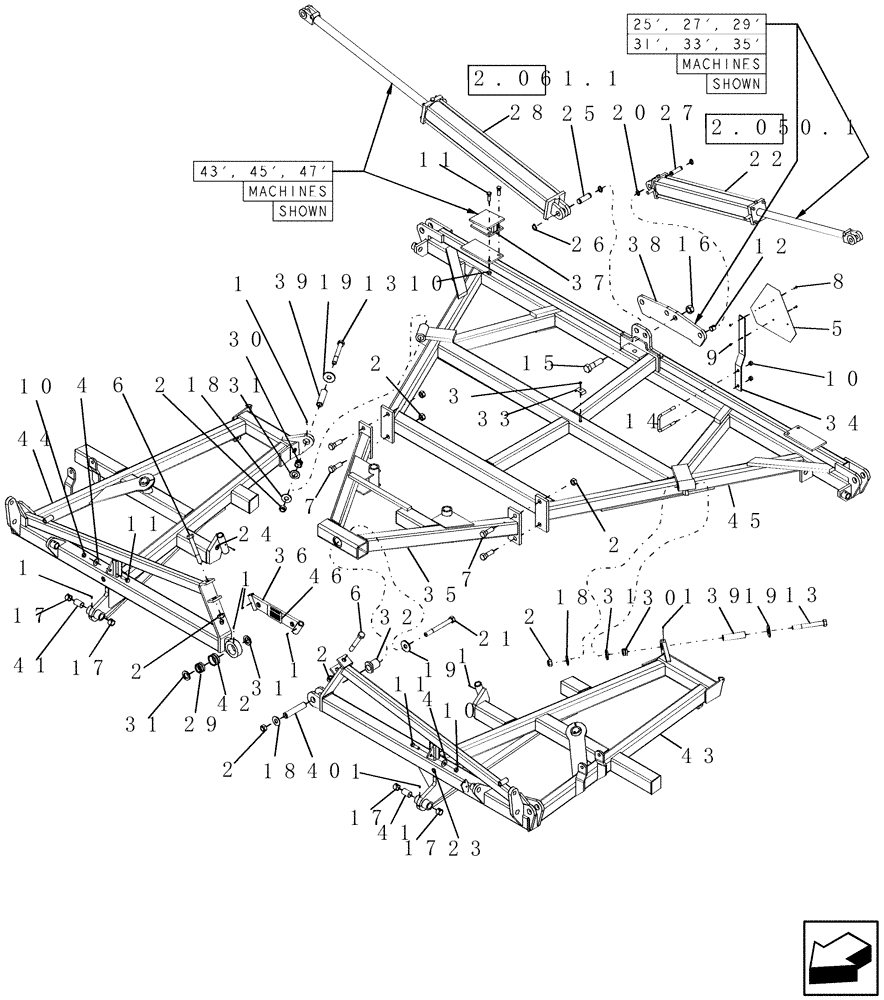

Запчасти Case IH PTX600 (1.020.1) - 13 FT CENTER ASSEMBLY (12) - FRAME

1

88775

LUBE NIPPLE,1/4"-28

9шт.

2

280286

NUT,1"-8, GB

9шт.

3

88902

NUT,3/8"-16

1шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

5

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

6

9602223

BOLT,Hex, 1" - 8 x 7", Gr 5

2шт.

7

84128

BOLT,Hex, 1" x 3", Gr 5

4шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

9

280129

NUT,1/4"-20

2шт.

10

85700693

NUT,5/8" - 11, Gr C

6шт.

11

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

12

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

1шт.

13

18682

BOLT,Hex, 1" - 8 x 8", Gr 5

2шт.

14

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

15

413-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 5

1 1/4"-7 x 4 1/2", G5

1шт.

16

86609684

NUT,1 1/4"-7, GB

1шт.

17

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

4шт.

18

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

3шт.

19

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

3шт.

20

87019495

SNAP RING,#98, Ext

2шт.

21

84015

BOLT,Hex, 1" - 8 x 8 1/2", Gr 5

1шт.

22

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

25'. 27', 29', 31', 33' and 35' models

1шт.

Refer to 4" X 32" Cylinder page for details

1шт.

87437292R

REMAN-HYD CYLINDER

PTX600 BSN Y9S003001 (12/01-7/08)

1шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

23

6566

DECAL

grease 50 hours

7шт.

24

6567

DECAL

grease 200 hours

2шт.

25

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

1шт.

Monarch Cylinders - clevis end

1шт.

25

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

Monarch Cylinders - rod end

1шт.

26

86625148

SNAP RING,#125, Ext

2шт.

27

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

Monarch Cylinders - clevis end

1шт.

27

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.

Monarch Cylinders - rod end

1шт.

28

87437294

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1016mm Stroke

5" x 40" mon 3000 psi without pins

1шт.

43', 45' and 47' models

1шт.

Refer to 5" Hydraulic Cylinder - Monarch page for details

1шт.

Shown

1шт.

28

87437294R

REMAN-HYD CYLINDER

PTX600 PRECISION TILLAGE BSN Y9S003001, 5" x 40" mon 3000 psi without pins, 13 FT CENTER ASSEMBLY, 43', 45' and 47' models (12/01-7/08)

1шт.

28

87437294C

CORE-HYD CYLINDER

Return Number

1шт.

28

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

1шт.

37', 39' and 41' models

1шт.

Refer to 5" Hydraulic Cylinder - Monarch page for details

1шт.

Not Shown

1шт.

29

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

30

7975

BUSHING

tension 1 3/4" x 1 1/2" x 1" long

2шт.

31

8013

WASHER

1 1/2" id 2 1/2" 1/4"

4шт.

32

CA-131

PLASTIC-RUBBER TUBE

flex, 1 35/64" id x 2 3/16" - flanged

1шт.

33

CC-105

HOSE CLAMP

for 2 hoses

1шт.

34

ND-575

BRACKET

S.M.V sign

1шт.

35

432449A1

FRAME

13' center pivot

1шт.

36

NW-304

LINK

king post

1шт.

Includes two 1298, two 6566, and TC-500.10

1шт.

37

NW-386

ROLLER

rest for 13' center section, 9' wing, 95º

1шт.

43', 45' and 47' models

1шт.

38

NW-418

MOUNTING PLATE

cylinder 114º

1шт.

25', 27', 29', 31', 33', 35', 37', 39' and 41' models

1шт.

39

NW-461

SLEEVE

1" id x 1 1/2" od x 5 5/8" long

1шт.

40

NW-462

SLEEVE

1" id x 1 1/2" od x 6 7/8" long

1шт.

41

NW-501V2

SPACER

steel 1 7/16" od x 2 1/4" long

1шт.

42

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

43

432452A1

FRAME

13' center LH

1шт.

Includes two 432569A1, two 6566, 6567, 7975, and NW-501V2

1шт.

44

432453A1

FRAME

13' center RH

1шт.

Includes two 432569A1, three 6566, 6567, 7809, 7975, NW-501V2, and NW-505

1шт.

45

432454A1

FRAME

13' center rear without fitting

1шт.

46

TC-500.10

CAUTION DECAL

proceed cautiously

1шт.
