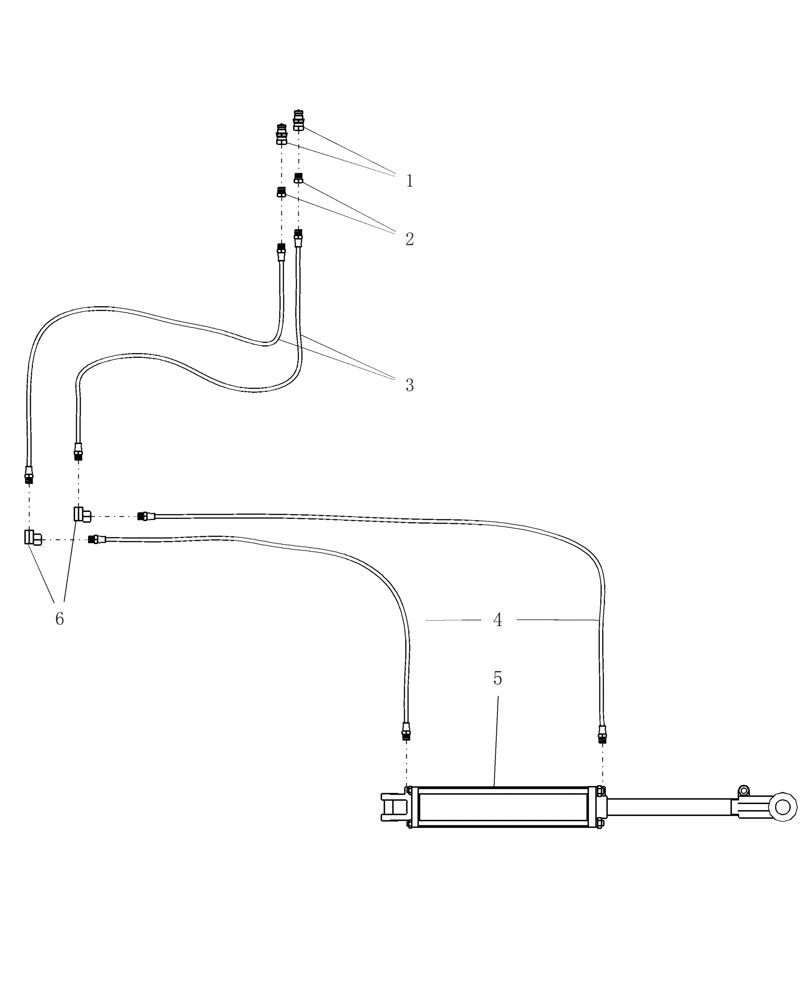

Запчасти Case IH PTX600 (2.080.1) - SINGLE MARKER HYDRAULICS (07) - HYDRAULICS

1

435414A1

QUICK MALE COUPLING,1/2"-14 NPTF

2шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

2шт.

3

6723

HYDRAULIC HOSE,0.25" ID x 240.00", SAE 100R17 Class 2 Type 2, SAE J517, SAE J516

1/4" x 240" fl

2шт.

3

432611A1

HYDRAULIC HOSE,0.25" ID x 288.00"

1/4" x 288" fl, 3/8" mpt x 3/8" mpt

2шт.

3

6918

HYDRAULIC HOSE,6.35 mm ID x 8229.60 mm, SAE 100R17

1/4" x 324" fl

2шт.

4

6917

HYDRAULIC HOSE

1/4" x 264" fl

2шт.

4

432611A1

HYDRAULIC HOSE,0.25" ID x 288.00"

1/4" x 288" fl, 3/8" mpt x 3/8" mpt

2шт.

4

6918

HYDRAULIC HOSE,6.35 mm ID x 8229.60 mm, SAE 100R17

1/4" x 324" fl

2шт.

4

6919

HYDRAULIC HOSE,0.25" ID x 360.00", SAE 100R17 Class 2 Type 2, SAE J517, SAE J516

1/4" x 360" fl

2шт.

4

432619A1

HYDRAULIC HOSE,0.25" ID x 390.00"

1/4" x 390" fl, 3/8" mpt x 3/8" mpt

2шт.

4

6920

HYDRAULIC HOSE,6.35 mm ID x 10363.20 mm, SAE 100R17 Class 2 Type 2

1/4" x 408" fl

2шт.

4

7049

HYDRAULIC HOSE,0.25" ID x 432.00", SAE J517, SAE J516, SAE 100R17

1/4" x 432" fl

2шт.

5

8180

HYDRAULIC CYLINDER,28.57mm Rod, 304.8mm Stroke

2" X 12" Monarch, 2500 psi with pins

1шт.

Refer to hydraulic cylinder page for replacement parts

1шт.

6

21603

FITTING

90º swivel elbow, 3/8" fpt x 3/8" fpt

2шт.
