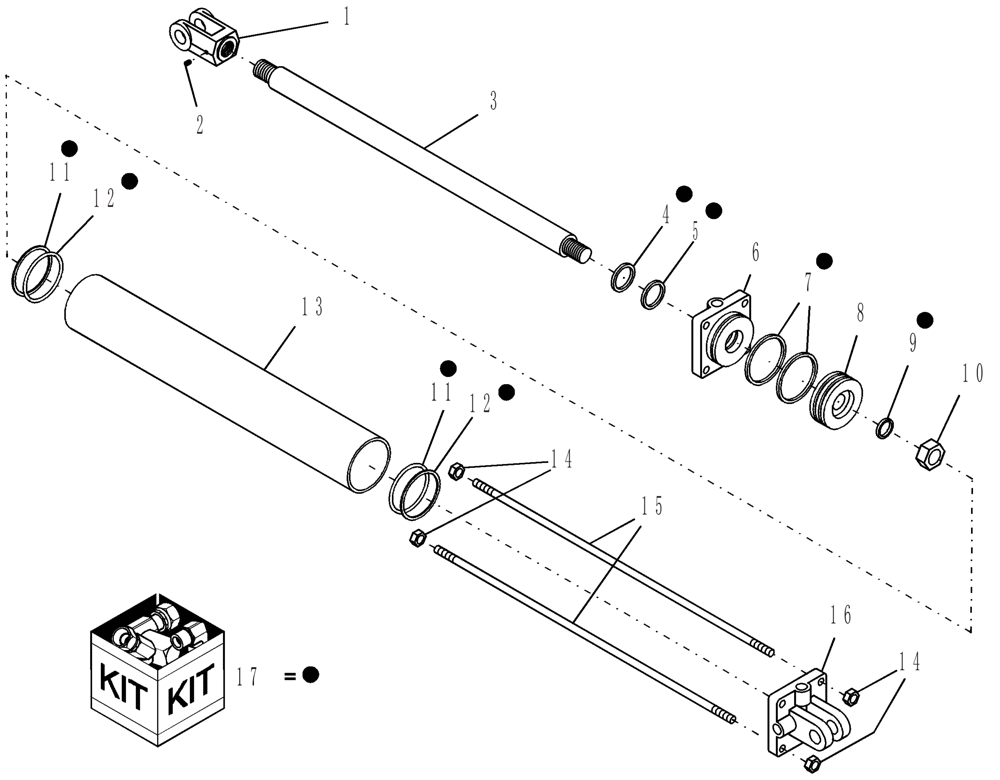

Запчасти Case IH PTX600 (2.050.1) - 4" X 32" HYDRAULIC CYLINDER - MONARCH (07) - HYDRAULICS

0

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

87437292R

REMAN-HYD CYLINDER

PTX600 BSN Y9S003001 (12/01-7/08)

1шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

1

8945

CLEVIS

cyl rod, Monarch 1 pin (#492658)

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

8961

SHAFT

cylinder, 4" x 32" Monarch 1 3/4" dia (#494775)

1шт.

2a

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

4

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 9791V2

1шт.

5

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 9791V2

1шт.

6

87409410

HEAD

cylinder front 4" bore x 1 3/4" rod

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING PISTON

2шт.

Included in repair kit 9791V2

1шт.

8

9673

PISTON

4" Monarch psp seal psi (#494735)

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING ROD

1шт.

Included in repair kit 9791V2

1шт.

10

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 9791V2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 9791V2

1шт.

13

8958

TUBE,4.00" DIA x 32.00" L

cylinder, 4" x 32" Monarch 3000 psi (#467332)

1шт.

14

86643107

NUT,5/8" - 18, Gr 8

5/8"-18, G8

8шт.

15

8959

TIE-ROD

cylinder 32 Monarch 5/8" di 3000 psi (#492362)

4шт.

16

87409432

HEAD

cylinder base 4" bore, 2, 3/4"-16 orb

1шт.

17

9791V2

SEAL KIT

4 Monarch 1 3/4" rod psp seal (#643184)

1шт.

100

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.

Not Shown

1шт.

100

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

Not Shown

1шт.

100

87019495

SNAP RING,#98, Ext

4шт.

Not Shown

1шт.
