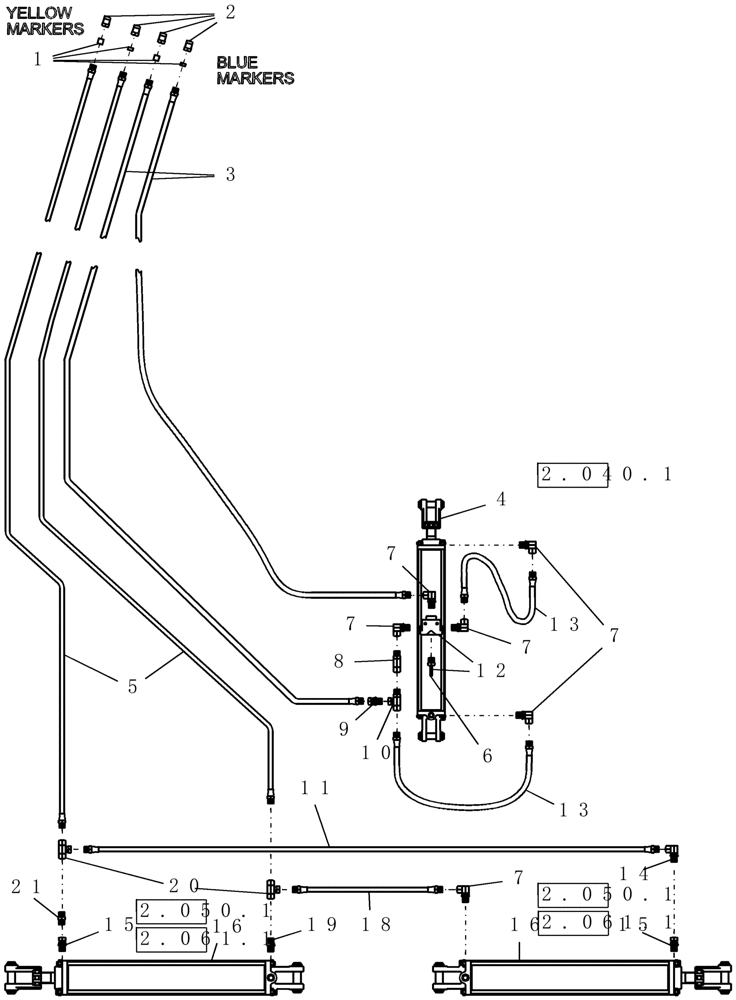

Запчасти Case IH PTX600 (2.010.1) - 3 SECTION HYDRAULICS (07) - HYDRAULICS

1

ND-059

KIT

hose color coding

1шт.

Blue Markers are for the Depth Control Circuit. Yellow Markers are for the Wing Control Circuit

1шт.

2

435414A1

QUICK MALE COUPLING,1/2"-14 NPTF

4шт.

3

22887

HYDRAULIC HOSE,12.7mm ID x 10058mm L, SAE 100R2

1/2" x 396" fl

2шт.

29', 35', and 41' models

1шт.

3

432576A1

HYDRAULIC HOSE

1/2" x 420" fl, 1/2" mpt x 1/2" mpt

2шт.

38' and 44' models

1шт.

4

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline

1шт.

Refer to 4 x 24 Cylinder page for details

1шт.

4

9652R

REMAN-HYD CYLINDER

PTX600 PRECISION TILLAGE BSN Y9S003001, 4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline (12/01-7/08)

1шт.

4

9652C

CORE-HYD CYLINDER

Return Number

1шт.

5

22830

HYDRAULIC HOSE,0.38" ID x 372.00", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 372" fl

2шт.

29', 35', and 41' models

1шт.

5

22825

HYDRAULIC HOSE,0.38" ID x 387.00", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 387" fl

2шт.

38' and 44' models

1шт.

6

6284

CARTRIDGE

valve depth stop

1шт.

7

3568

ELBOW

stl 90º 1/2"mb 1/2"fpx

6шт.

8

8463

CHECK VALVE

1/2" fpt x 1/2" mpt

1шт.

9

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

1шт.

10

617267

TEE,1/2"-14 Female x 1/2"-14 Male Run

1шт.

11

22827

HYDRAULIC HOSE,0.38" ID x 100.00", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 100" fl

1шт.

12

51200150

CONTROL VALVE

depth stop assembly complete

1шт.

Includes 6284

1шт.

13

22829

HYDRAULIC HOSE,0.50" ID x 15.00", SAE J517

2шт.

14

87331082

FITTING

90º, 1/2" NPTF Male x 1/2" NPSM Fem Sw

1шт.

15

6550

RESTRICTOR

hydraulic - swivel

2шт.

16

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

2шт.

29', 35' and 38' models

1шт.

Refer to 4" X 32" Cylinder page for details

1шт.

87437292R

REMAN-HYD CYLINDER

PTX600 BSN Y9S003001 (12/01-7/08)

2шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

16

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

2шт.

41' and 44' models

1шт.

Refer to 5" Hydraulic Cylinder - Monarch page for details

1шт.

18

22617

HYDRAULIC HOSE,0.38" ID x 27.00", SAE J517, SAE J516, SAE J1273, SAE J517

3/8" x 27" fl, 1/2" mpt x 1/2" mpt

1шт.

29', 35', and 41' models

1шт.

18

22621

HYDRAULIC HOSE,0.38" ID x 65.50", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 65 1/2" fl, 1/2" mpt x 1/2" mpt

1шт.

38' and 44' models

1шт.

19

87331078

FITTING

1/2" morb x 1/2" mpt

1шт.

20

6809

TEE

fitting, hydraulic - swivel

2шт.

21

86637713

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

1шт.
