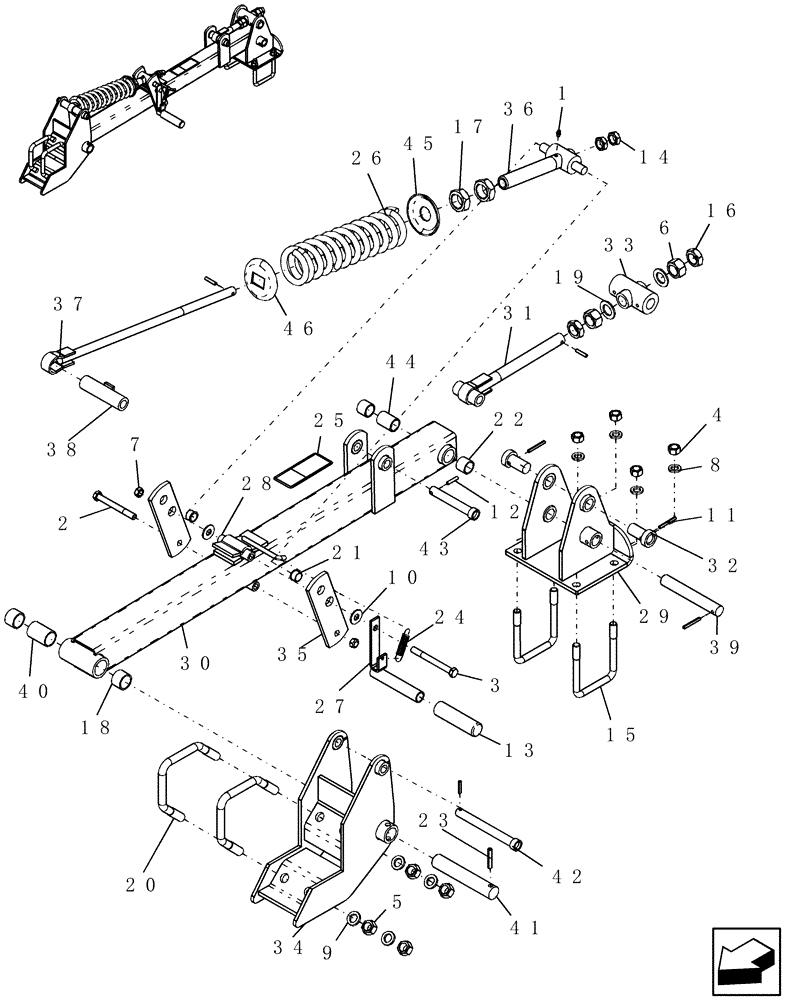

Запчасти Case IH PTX600 (6.340.1) - MOUNTED HEAVY HARROW ARM ASSEMBLY Related Equipment

1

88775

LUBE NIPPLE,1/4"-28

1шт.

2

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

3

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

5

280954

NUT,3/4"-10, G5

4шт.

6

9849633

NUT,1"-8, G5

2шт.

7

86992215

LOCK NUT,1/2"-13, GC

2шт.

8

12034871

WASHER

5/8"

4шт.

9

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

11

87718

LOCK PIN,6.35mm OD x 50.8mm L

3шт.

12

300868

ROLL PIN,6mm OD x 36mm L, Slotted

4шт.

13

3740

HANDLE

plastic - 1" id

1шт.

14

86632557

JAM NUT,Jam, 3/4"-10, G5

2шт.

15

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

2шт.

16

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

17

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

18

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

19

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

2шт.

20

6712

U-BOLT

v 3/4"-10 x 4", G5 extended

2шт.

21

8446

BUSHING,19.07mm ID x 22.28mm OD x mm L

flanged Oilite .751" id x .877" od x 1/2" long

2шт.

22

9562K

KIT

Nylatron* bushing 1 1/4" x 1" x 1"

2шт.

23

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

24

432591A1

TENSION SPRING

1/8" wire x 3/4" od x 3 1/4" long

1шт.

25

23212V2

DECAL

hazard lifting

1шт.

26

87506253

COMPRESSION SPRING

9/16" x 3 9/16" x 13 3/4"

1шт.

27

HM-213

LATCH

lever, with handle

1шт.

28

HM-276

LATCH

flipper

1шт.

29

HM-740

BRACKET

mount, rear

1шт.

30

HM-741

ARM

main, heavy harrow

1шт.

Includes 23212

1шт.

31

HM-744

LINK

section pitch adjustment

1шт.

32

HM-746

PIN

section mount - upper

2шт.

33

HM-749

PIVOT

section pitch

1шт.

34

HM-753

BRACKET

mount, front

1шт.

35

HM-754

PIVOT PLATE

spring tension

2шт.

36

84204624

TRUNNION

Spring Pivot

1шт.

37

HM-756

ADJUSTMENT ROD

height

1шт.

38

HM-757

PIN

top pivot

1шт.

39

HM-758

PIN

section pitch adjustment

1шт.

40

HM-759

PIVOT

top

1шт.

41

HM-760

PIVOT PIN

main

1шт.

42

HM-761

PIVOT PIN

spring tension link

1шт.

43

HM-764

PIVOT PIN

adjustment

1шт.

44

HM-765

BUSHING

pivot, bottom

1шт.

45

PM-466

CUP

spring, lower

1шт.

46

PM-467

CUP

spring, upper

1шт.
