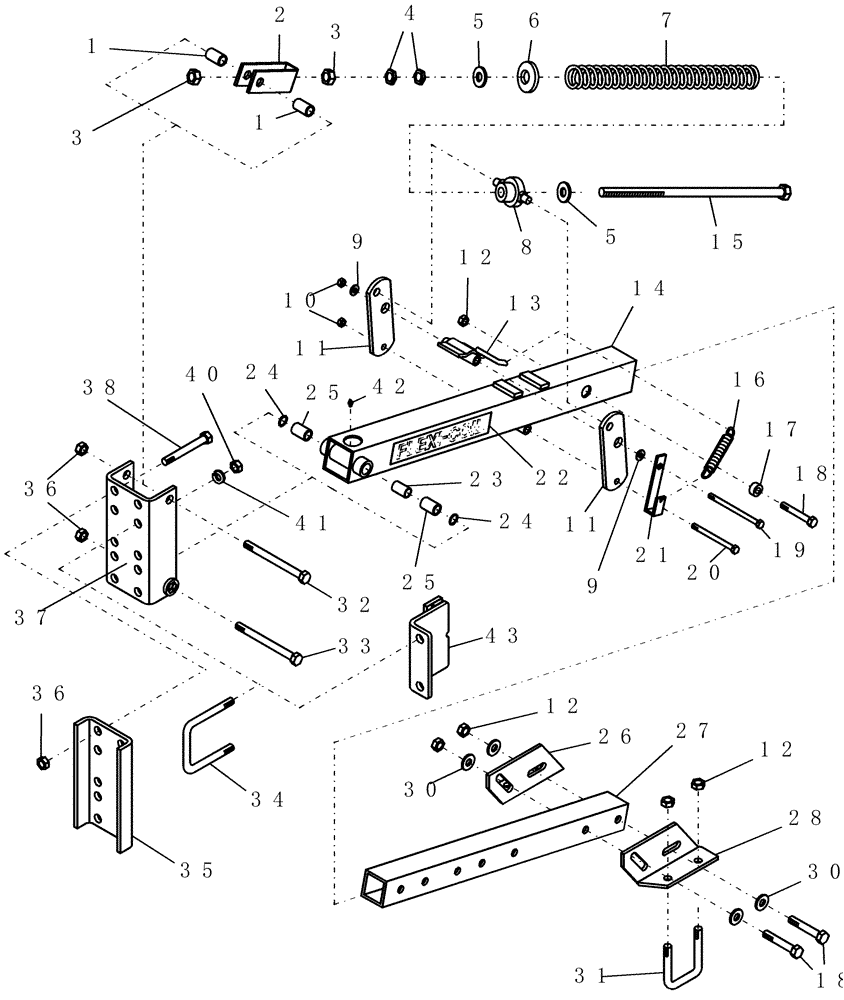

Запчасти Case IH PTX600 (6.330.1) - HARROW MOUNT ARM WITH ADJUSTABLE LENGTH ARM Related Equipment
№
Артикул
Название
Примечание
Количество
1
HM-273
SPACER
tension rod clevis
2шт.
2
HM-208
CLEVIS
tension rod
1шт.
3
280954
NUT,3/4"-10, G5
2шт.
4
86632557
JAM NUT,Jam, 3/4"-10, G5
2шт.
5
86511191
WASHER,0.81" ID x 2" OD x 0.15" Thk
2шт.
6
HM-214
CUP
spring
1шт.
7
87506301
SPRING
compression .375" Wire x 2.41" OD x 14" long
1шт.
8
87506248
TRUNNION
spring
1шт.
9
80700
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
2шт.
10
86992215
LOCK NUT,1/2"-13, GC
2шт.
11
HM-277
SIDE PLATE
flipper latch
2шт.
12
85700693
NUT,5/8" - 11, Gr C
5шт.
13
HM-276
LATCH
flipper
1шт.
14
HM-202V2
TUBE
female mount - adjustable length arm
1шт.
15
9509
BOLT,Hex, 3/4" - 10 x 18 3/4", Gr 5
1шт.
16
24332
TENSION SPRING
.092" wire x .85" od x 2 1/2" long
1шт.
17
HM-231
SPACER
male tube lock
1шт.
18
86977740
BOLT,Hex, 5/8" - 11 x 4", Gr 5
, Years: -01-APR-09
3шт.
18
280183
BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5
, Start Year: 01-APR-09
3шт.
19
87997
BOLT,Hex, 1/2" - 13 x 5", Gr 5
1шт.
20
87996
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
1шт.
21
HM-212
LEVER
latch
1шт.
23
HM-218
BUSHING
spacer
1шт.
24
3930
O-RING
3/4" id x 1/8" w
2шт.
25
3929
BUSHING
tension 1" x 3/4" x 1 1/2" long
2шт.
26
HM-224
PLATE
pitch adjustment RH
1шт.
27
HM-222V2
TUBE
male mounting
1шт.
28
HM-226
PLATE
pitch adjustment LH
1шт.
30
80299
WASHER,0.69" ID x 1.75" OD x 0.13" Thk
4шт.
31
3934
U-BOLT
us 5/8"-11 x 3 1/16" w x 4 3/8" deep, G5
1шт.
32
280223
BOLT,Hex, 3/4"-10 x 6 1/2", G5
1шт.
33
4517
BOLT
3/4"-10 x 6 1/2", G5, 1" thread length
1шт.
34
7818
U-BOLT
us 3/4"-10 4 1/32" w 5 5/8" d GR5
1шт.
35
HM-272
PLATE
for 3/4" bolts
1шт.
36
280375
NUT,3/4"-10, GC
3шт.
37
HM-271
BRACKET
mount, harrow arm
1шт.
38
86507002
BOLT,Hex, 3/4"- 10 x 5 1/2", Gr 5
1шт.
40
280954
NUT,3/4"-10, G5
2шт.
41
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
2шт.
43
NW-924
HOOK
mount, offset
1шт.
Выбрано товаров: 41
