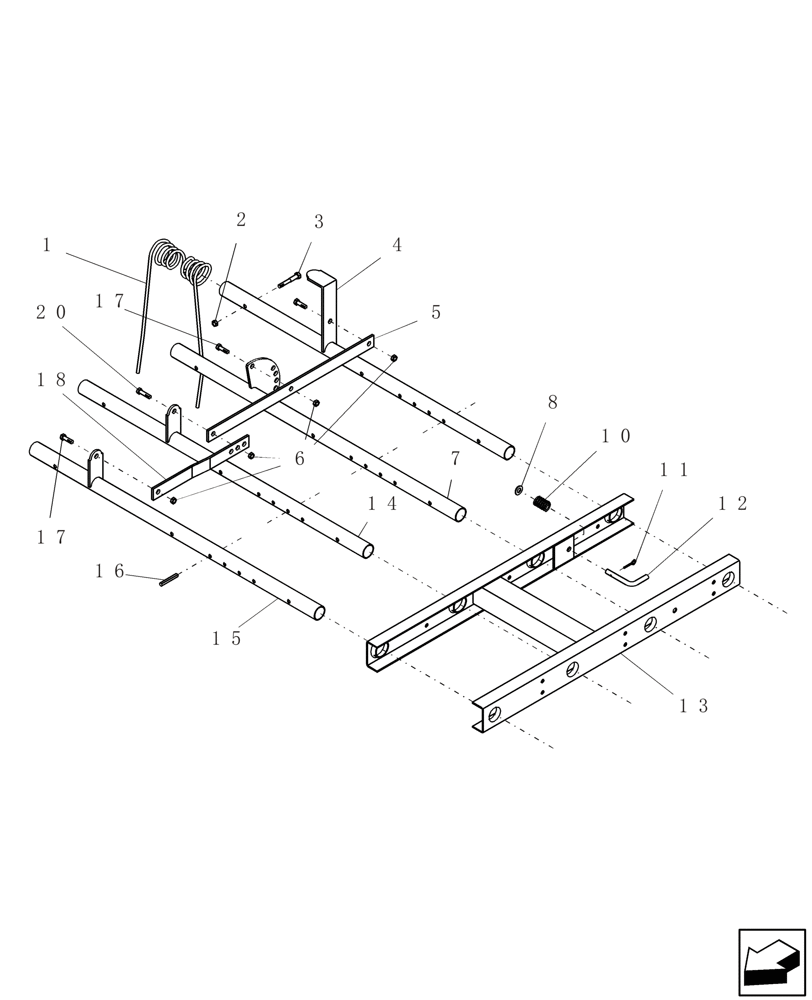

Запчасти Case IH PTX600 (6.300.1) - 4 BAR MOUNTED HARROWS WITH SPRING LOADED ANGLE LOCK 4.5 FT AND 6 FT WIDTHS Related Equipment
№
Артикул
Название
Примечание
Количество
0
HM-540A
FRAME
harrow assembly 4' 6" - 4 bar
1шт.
Shown
1шт.
0
HM-640A
FRAME
harrow assembly 6' - 4 bar
1шт.
Not Shown
1шт.
1
87505458
TINE
harrow, 9 w x 16 long
12шт.
4' 6'' Harrow only
1шт.
1
87505458
TINE
harrow, 9 w x 16 long
16шт.
6' Harrow only
1шт.
2
88902
NUT,3/8"-16
12шт.
2
88902
NUT,3/8"-16
16шт.
3
8946
BOLT
shoulder 3/8"-16 x 2 1/2", G5
12шт.
4' 6'' Harrow only
1шт.
3
8946
BOLT
shoulder 3/8"-16 x 2 1/2", G5
16шт.
6' Harrow only
1шт.
4
HM-544
TUBE,REAR TUBE 4.5FT 4 BAR
harrow, rear, 4' 6" 4 bar
1шт.
Shown
1шт.
4
HM-644
TUBE,REAR TUBE 6FT 4 BAR MOUNTED HARROW
harrow, rear, 6' 4 bar
1шт.
Not Shown
1шт.
5
FH-658
LINK
angle control - triple
1шт.
6
86992215
LOCK NUT,1/2"-13, GC
4шт.
7
HM-543
TUBE,SECOND REAR TUBE 4.5FT 4 BAR
harrow, 3rd row, 4' 6" 4 bar
1шт.
Shown
1шт.
7
HM-643
TUBE,THIRD TUBE 6FT 4 BAR MOUNTED HARROW
harrow, 3rd row, 6' 4 bar
1шт.
Not Shown
1шт.
8
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
1шт.
10
87505489
COMPRESSION SPRING
23/32" x 2"
1шт.
11
80755
COTTER PIN,1/8" OD x 1" L
1шт.
12
FH-657
PIN
angle adjustment 5 bar drag harrow
1шт.
13
HM-540
FRAME
harrow, 4' 6" - 4 bar
1шт.
Shown
1шт.
13
HM-640
FRAME
harrow, 6' - 4 bar
1шт.
Not Shown
1шт.
14
HM-542
TUBE,SECOND FRONT TUBE 4.5FT 4 BAR
harrow, 2nd row, 4' 6" 4 bar
1шт.
Shown
1шт.
14
HM-642
TUBE,SECOND TUBE 6FT 4 BAR MOUNTED HARROW
harrow, 2nd row, 6' 4 bar
1шт.
Not Shown
1шт.
15
HM-541
TUBE,FRONT TUBE 4.5FT 4 BAR
harrow, front 4' 6" 4 bar
1шт.
Shown
1шт.
15
HM-641
TUBE,FRONT TUBE 6FT 4 BAR MOUNTED HARROW
harrow, front, 6' 4 bar
1шт.
Not Shown
1шт.
16
87597
ROLL PIN,9.53mm OD x 63.5mm L, Slotted
4шт.
17
87670
BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5
3шт.
18
FH-656
LINK
angle control - single
1шт.
20
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
1шт.
Выбрано товаров: 44
