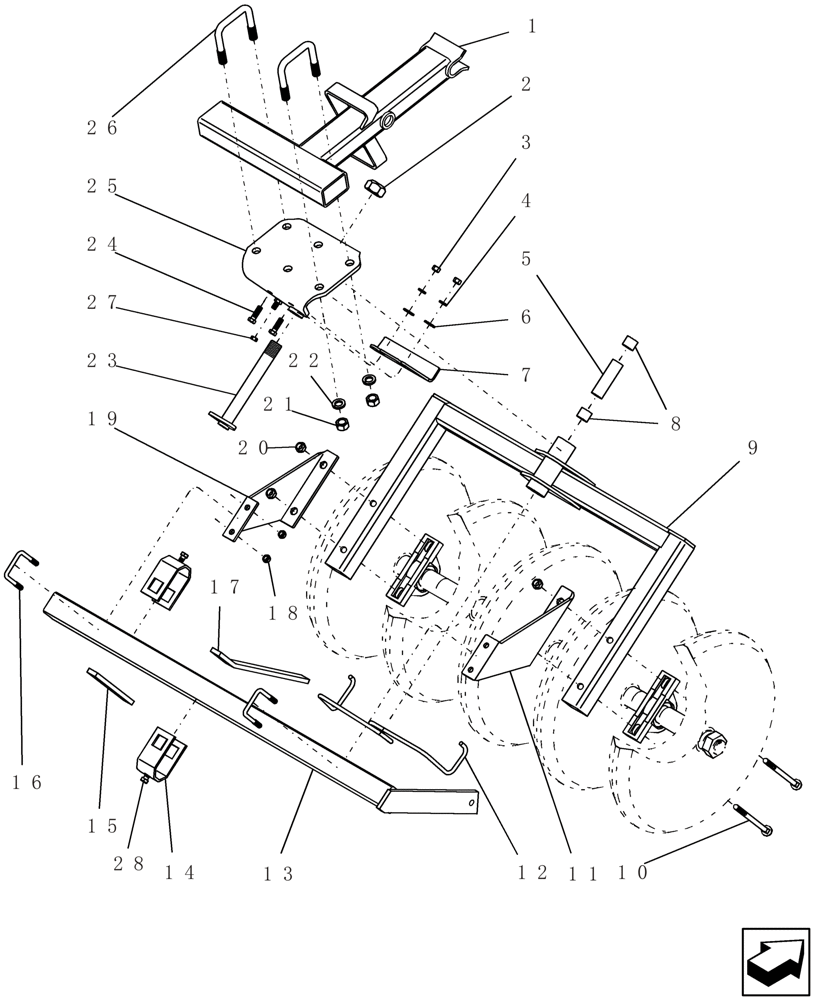

Запчасти Case IH PTX600 (6.260.1) - MOUNTED PACKER/HARROW PACKER EXTENTION ARM AND GANG FRAMES Related Equipment
№
Артикул
Название
Примечание
Количество
1
PM-440
EXTENSION
arm, packer
1шт.
2
7858
LOCK NUT
1"-14, GB
1шт.
3
9628503
NUT,3/8"-16, G5
2шт.
4
80680
LOCK WASHER,3/8 0.381 CST ZND
2шт.
5
PM-429
BUSHING
spacer tube
1шт.
6
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
2шт.
7
PM-475V2
BRACKET
angle, spring stop
1шт.
8
87420246
BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L
Garmax MGL composite 1 1/4" x 1" x 1"
2шт.
9
PM-430A
FRAME
short
1шт.
4 x 12", 5 x 9", 6 x 7.2" gangs
1шт.
Includes PM-429 and two of 6635
1шт.
9
PM-431A
FRAME
medium
1шт.
5 x 12", 6 x 9",8 x 9", 7 x 7.2", 9 x 7.2" gangs
1шт.
Includes PM-429 and two of 6635
1шт.
9
PM-432A
FRAME
Long, With Bushings
1шт.
6 x 12", 7 x 9", 8 x 7.2", 10 x 7.2" gangs
1шт.
Includes PM-429 and two of 6635
1шт.
10
433-864
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5
4шт.
11
PM-507
BRACKET
mount, mud/rock bar RH
1шт.
12
87506277
SPRING
centering
1шт.
13
PM-510
BAR
mud, #1 - 40 9/16"
1шт.
4 x 12", 5 x 9", 6 x 7.2" gangs
1шт.
13
PM-511
BAR
mud, #2 - 48 5/8"
1шт.
6 x 9" 7 x 7.2" gangs
1шт.
13
PM-512
BAR
mud, #3 - 54 7/8"
1шт.
5 x 12", 8 x 7.2" gangs
1шт.
13
PM-513
BAR
mud, #4 - 61 1/4"
1шт.
7 x 9",9 x 7.2" gangs
1шт.
13
PM-514
BAR
mud, #5 - 69 3/8"
1шт.
6 x 12", 8 x 9", 10 x 7.2" gangs
1шт.
14
PM-526
CLAMP
u-clip - mud/rock option
2шт.
15
PM-528
SCRAPER
mud
1шт.
16
425254A1
U-BOLT
us 3/8"-16 x 2 1/16" w x 2 13/16" d, G5, 1 1/2" thread
2шт.
17
PM-520
STRIPPER
rock, 14"
1шт.
18
88902
NUT,3/8"-16
4шт.
19
PM-506
BRACKET
mount, mud/rock bar LH
1шт.
20
86992215
LOCK NUT,1/2"-13, GC
4шт.
21
280374
NUT,Hex, 5/8" - 11, Gr 5
4шт.
23
PM-437
PIN
knuckle joint
1шт.
24
88011
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
2шт.
25
PM-436V2
U-BRACKET
knuckle assembly
1шт.
26
7906
U-BOLT
us 5/8"-11 3 1/16" w 3 1/2" d gr5
2шт.
27
86521606
FLANGE NUT,Hex, 3/8" - 16, Gr 5
1шт.
28
87323384
BOLT
.375 X 1.5 UNC GR2 YZD
2шт.
28
86521606
FLANGE NUT,Hex, 3/8" - 16, Gr 5
2шт.
Выбрано товаров: 46
