Запчасти Case IH PTX600 (6.230.1) - MOUNTED PACKER/HARROW 7.2" SPACING X 9 AND 10 WHEEL PACKER GANGS Related Equipment

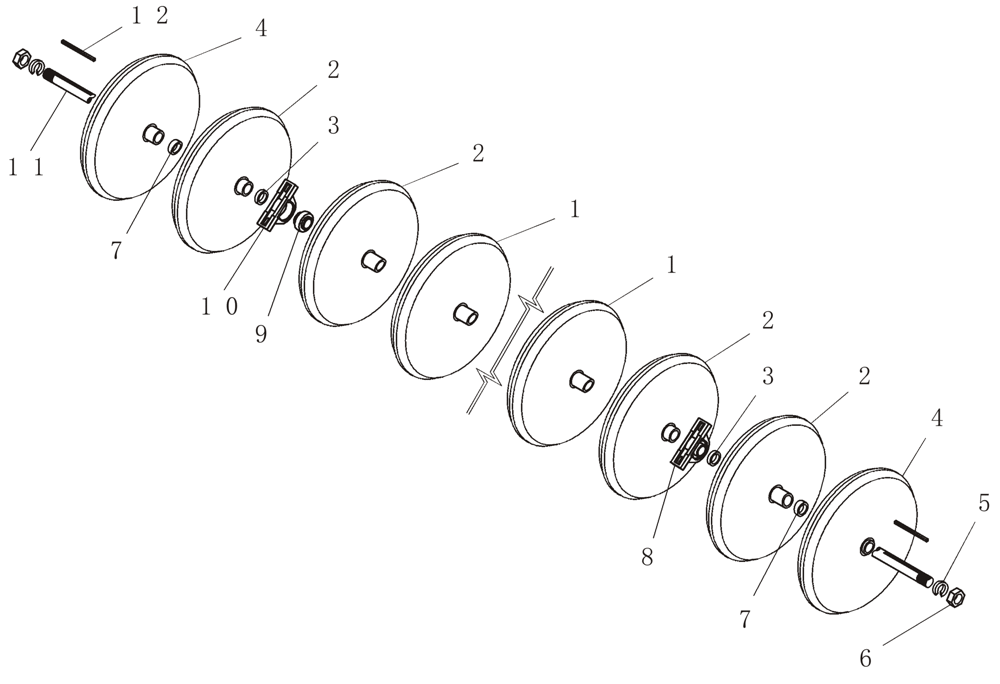

Схема запчастей Case IH PTX600 - (6.230.1) - MOUNTED PACKER/HARROW 7.2" SPACING X 9 AND 10 WHEEL PACKER GANGS Related Equipment
3
7
11
1
10
2
7
1
4
12
6
4
3
2
2
2
9
8
5

Артикул

Название

Примечание

Количество

0

PM-479A

PACKER

gang assembly 9 wheel - 7.2" spacing

1шт.

0

PM-480A

PACKER

gang assembly 10 wheel - 7.2" spacing

1шт.

1

PM-404

WHEEL ASSY

press, standard double slant spool

3шт.

1

PM-404

WHEEL ASSY

press, standard double slant spool

4шт.

2

PM-403

WHEEL ASSY

press, single slant cut spool

4шт.

3

PM-412

SPACER

bearing, press wheel

2шт.

4

PM-402

WHEEL ASSY

press, straight cut, end spool

2шт.

5

8624

LOCK WASHER

1 1/4", heavy

2шт.

6

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

2шт.

7

PM-405

SPACER

wedge

2шт.

8

8448

BEARING CARRIER

c/w Pillow Block - 1 1/4"

2шт.

Includes 432578A1 and 432585A1

1шт.

9

8448

BEARING CARRIER

c/w Pillow Block - 1 1/4"

2шт.

10

8448

BEARING CARRIER

c/w Pillow Block - 1 1/4"

2шт.

11

PM-418

AXLE

9 wheel x 7.2" spacing

1шт.

11

PM-419

AXLE

10 wheel x 7.2" spacing

1шт.

12

PM-427

KEY

medium 5 5/16" long

2шт.

Выбрано товаров: 17
