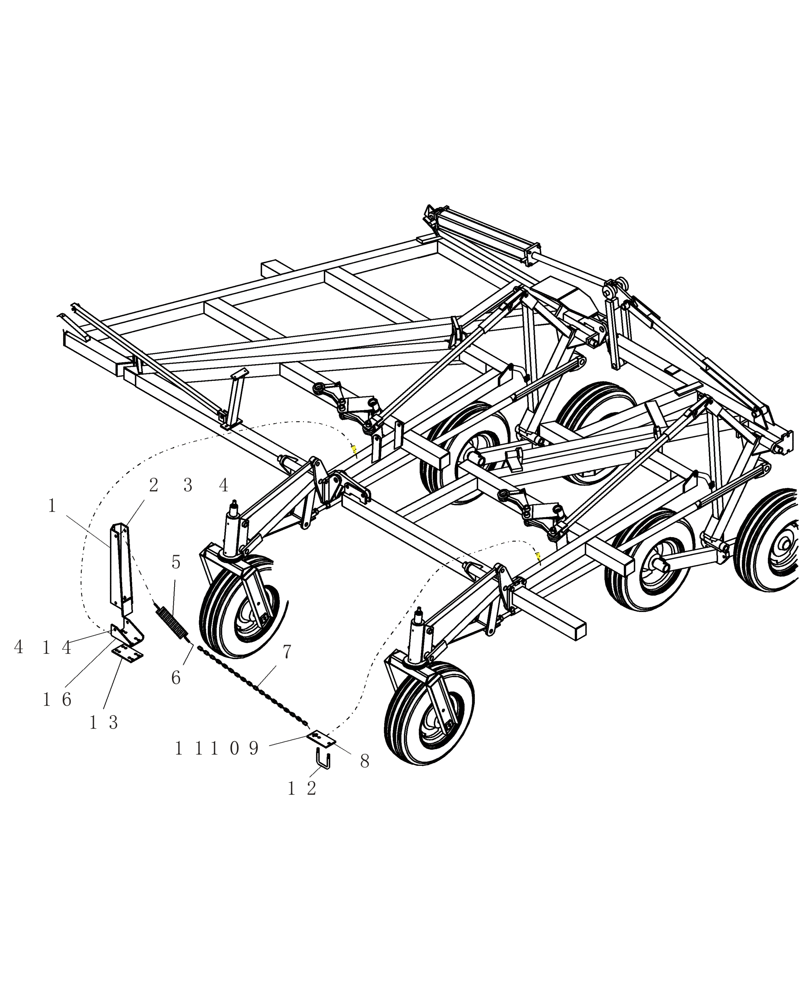

Запчасти Case IH PTX600 (5.010.1) - WEIGHT TRANSFER KIT Options

0

NW-547K

KIT

endmarker stabilizer 6' wing

1шт.

1

TC-121

LINK

weight transfer

1шт.

2

TC-123

TUBE

mount, spring

1шт.

3

1013935

BOLT (MACHINE)

.625 X 4.5 UNC GR5 YZD

1шт.

4

85700693

NUT,5/8" - 11, Gr C

8шт.

5

87506256

TENSION SPRING

13/32" wire x 15" long

1шт.

6

4529

CHAIN LINK

connector, coil chain 3/8"

1шт.

7

TC-125

CHAIN

weight transfer

1шт.

8

TC-124

PLATE

chain hook

1шт.

9

86544169

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 8

1шт.

10

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

11

280980

NUT,7/16"-14, GC

1шт.

12

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

13

TC-120

PLATE

bolt

1шт.

14

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5шт.

16

TC-129

BRACKET

mount, link

1шт.
